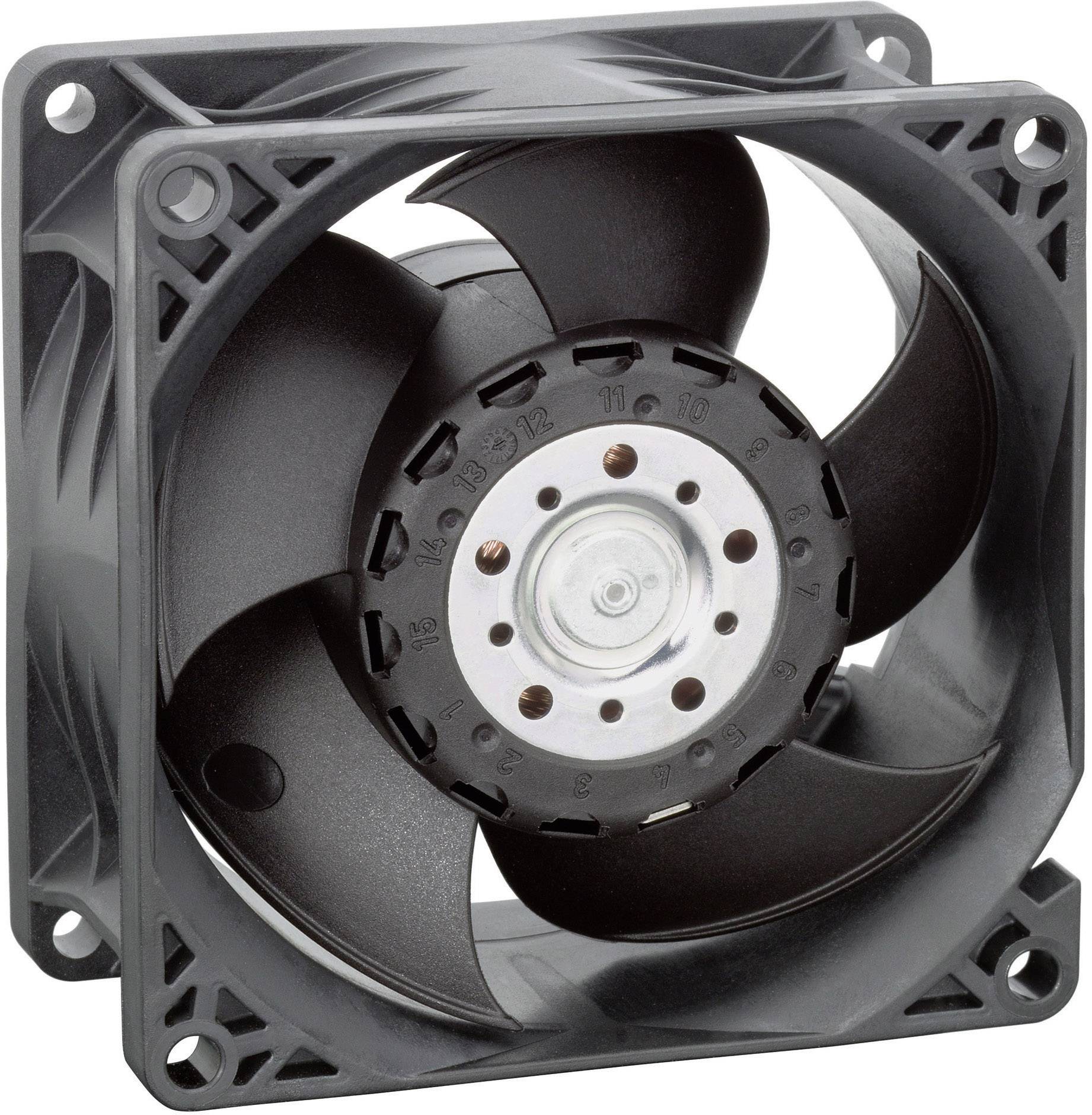

EBM Papst 8214 JH4 Axial fan 24 V DC 222 m³/h (L x W x H) 80 x 80 x 38 mm

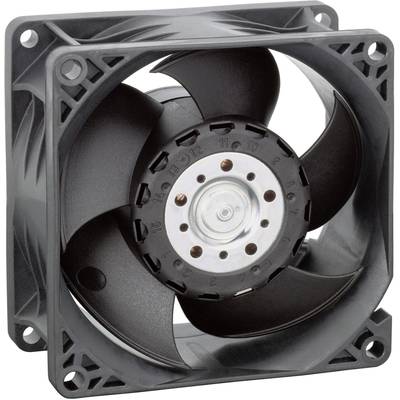

A black computer fan with five propeller blades and a rectangular frame. It is used for cooling electronic devices.
Product type
Axial fan
Nominal voltage
24 V DC
Power
37 W
Type of bearing
Ball bearing
Air flow rate
222 m³/h
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 95.99 / piece)
€ 95.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Axial fan

  • Ball bearing
  • Protection against reverse polarity and blocked rotor
  • Air flow 222 m³/h

Technical specifications

Product type

Axial fan

Type

8214 JH4

Nominal voltage

24 V DC

Max. current consumption

1600 mA

37 W

Type of bearing

Ball bearing

Rotational speed

14000 U/min

Noise emission (max.)

71 dB

Air flow rate

222 m³/h

Connection

Wire

Factory colour

Black

Material

Plastic

Weight

200 g

Min. temperature

-20 °C

Max. temperature

70 °C

Length

80 mm

Width

80 mm

Height

38 mm

Dim

(L x W x H) 80 x 80 x 38 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 556694 EBM Papst 8214 JH4 Axial fan 24 V DC 222 m³/h (L x W x H) 80 x 80 x 38 mm

Description

Suitable for use with high environmental temperature up to 70 °C. The high-quality fan is equipped with ball bearings which guarantee a long service life. Ideal for temperature-controlled speed controllers.

This text is machine translated.

Features

  • Very rigid compression curve
  • Innovative impeller with winglets
  • Highly adaptable software configuration
  • Air exhaust over struts
  • Connection via single strands AWG 22, TR 64 bared and tin-plated
  • Direction of rotation counter-clockwise, seen on rotor.
