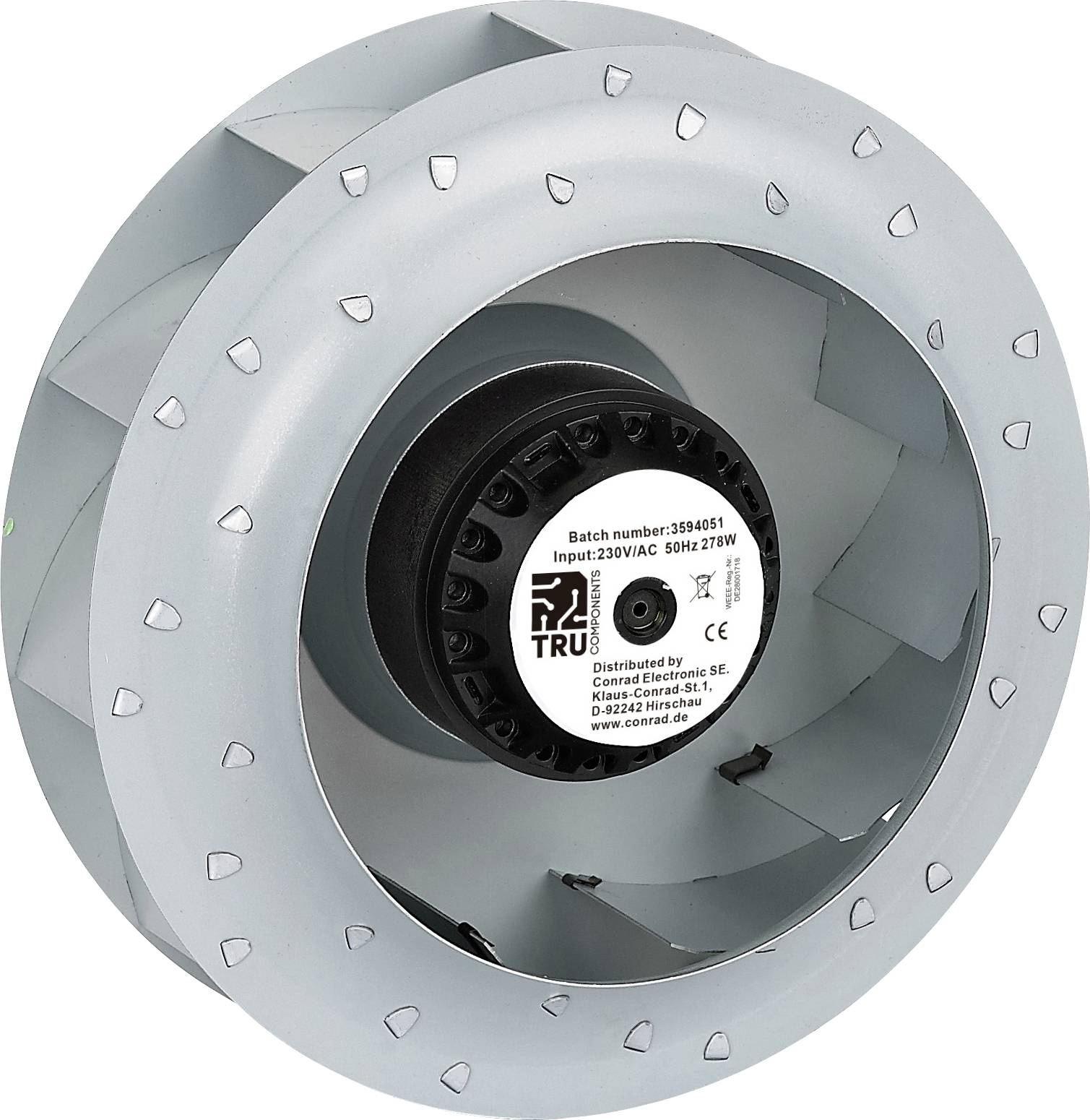

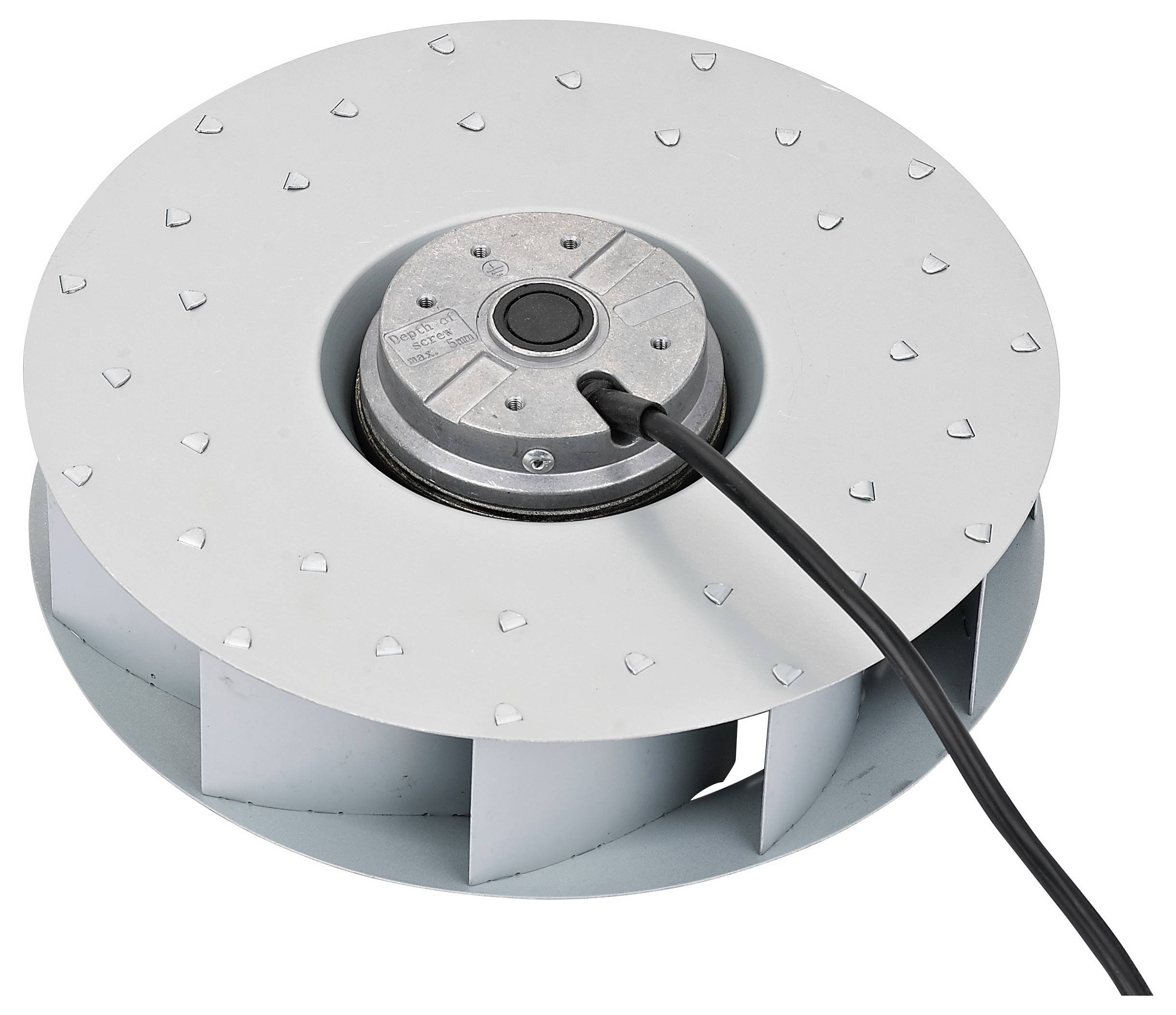

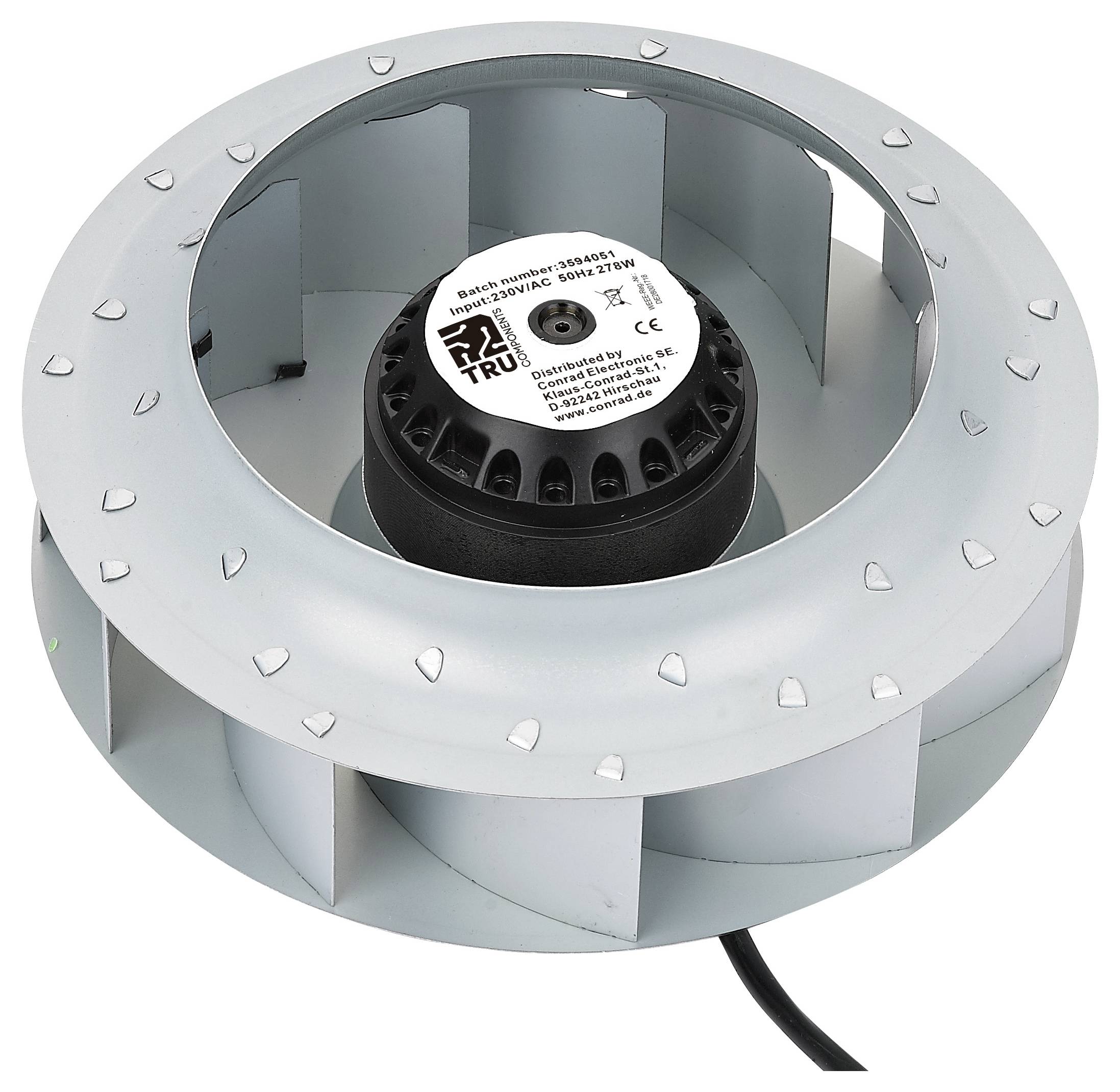

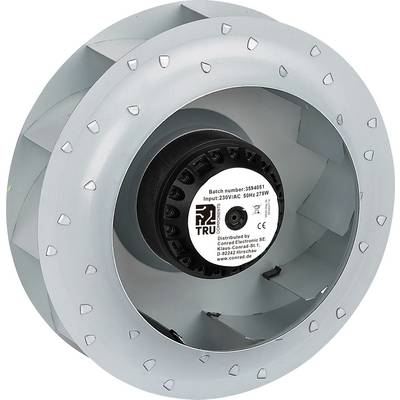

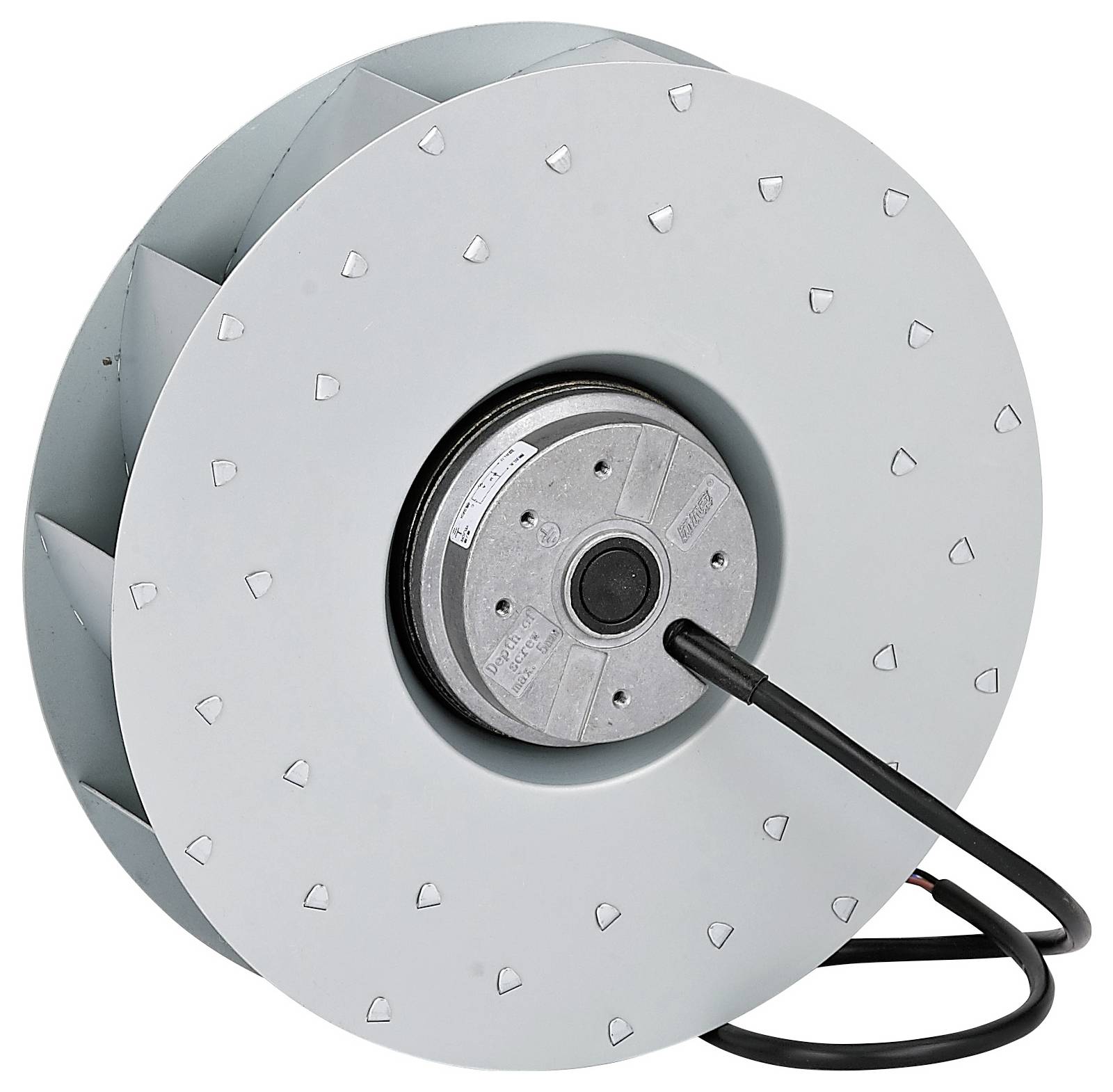

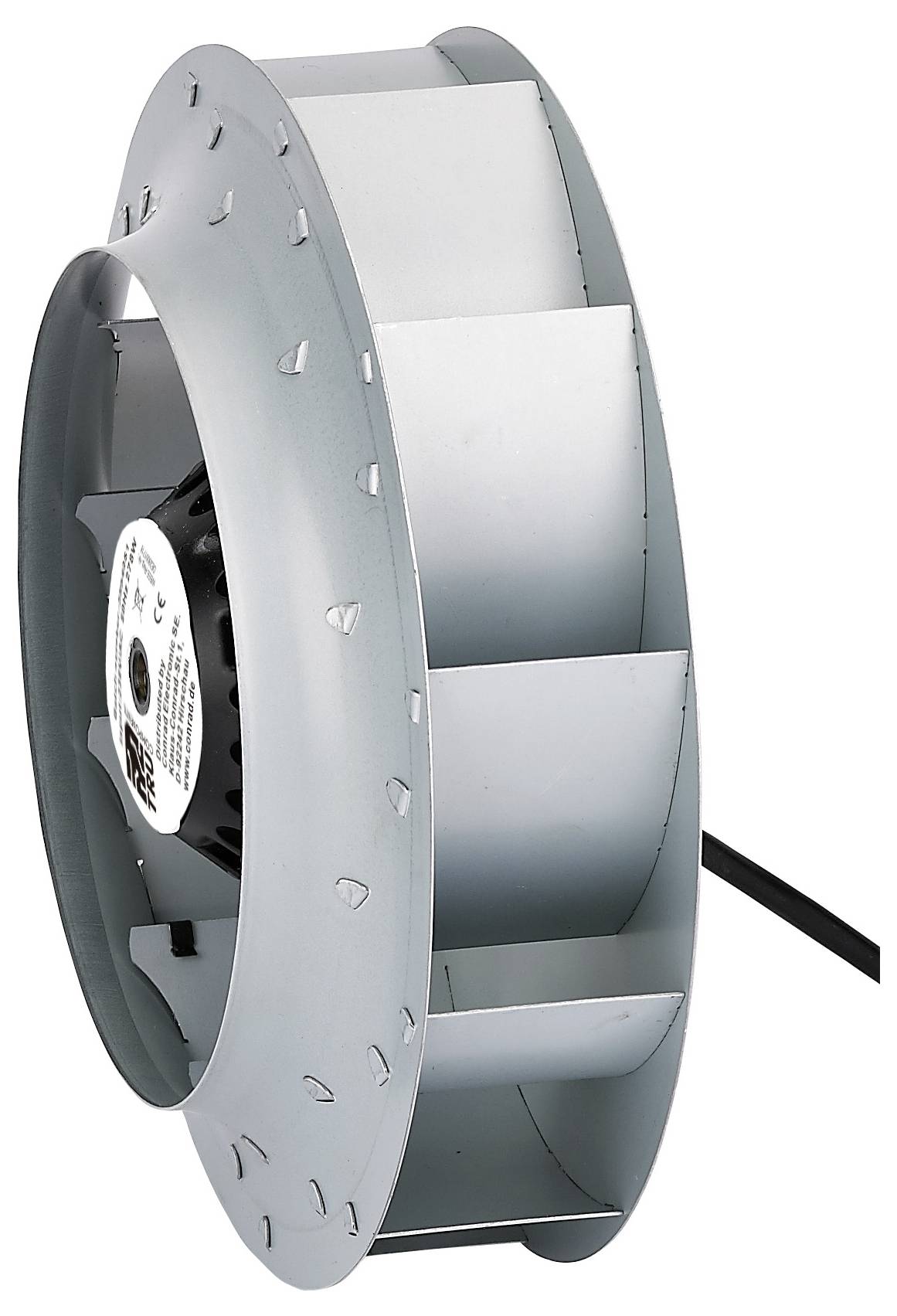

TRU COMPONENTS TC-NA250 Radial extractor 230 V AC 1650 m³/h (Ø x H) 250 mm x 99 mm
EAN:
Part number:
Item no:
Product type
Radial extractor
Nominal voltage
230 V AC
Power
278 W
Air flow rate
1650 m³/h
Material
Iron
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Highlights & Details
Centrifugal fan 230VAC 250x99mm 1650m³/h
- Dimensions: (Ø x H) 250 mm x 99 mm
- Nominal voltage: 230 V AC
- Air flow rate: 1650 m³/h
Our service for you
Technical specifications
- Current: 1.2 A
- Motor type: AC induction external rotor motor
- Frame: Iron
- Impeller: PA66+25GF
- Insulation class: F
- Pressure: 600 Pa
- Product type
Radial extractor
- Type
TC-NA250
- Nominal voltage
230 V AC
- Max. current consumption
1.2 A
278 W
- Rotational speed
2600 U/min
- Noise emission (max.)
74 dB
- Air flow rate
1650 m³/h
- Pressure (max.)
600 Pa
- Material
Iron
- (Ø)
250 mm
- Length
250 mm
- Width
99 mm
- Height
99 mm
- Dim
(Ø x H) 250 mm x 99 mm
- Plastic free packaging
Plastic-free packaging
