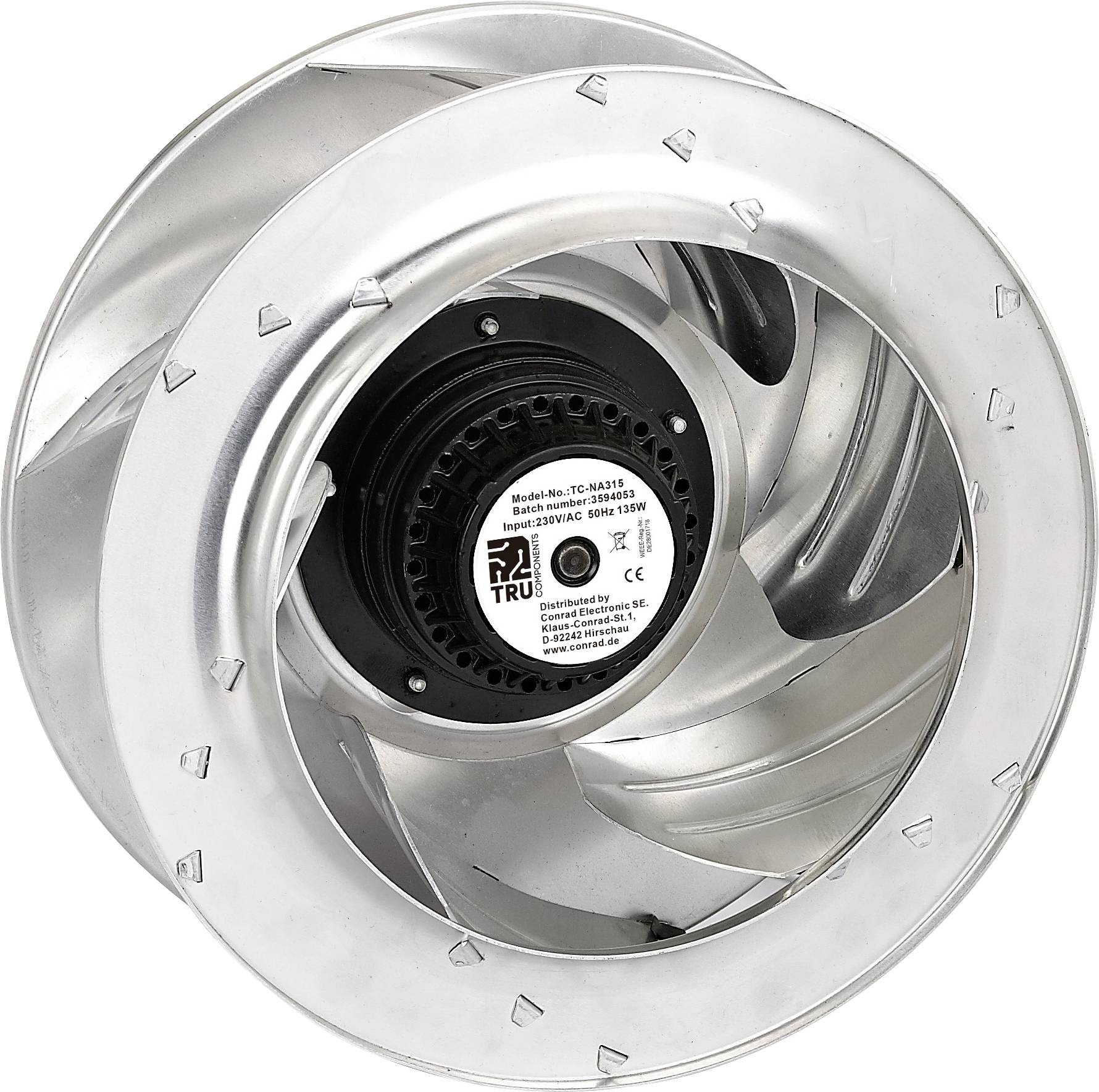

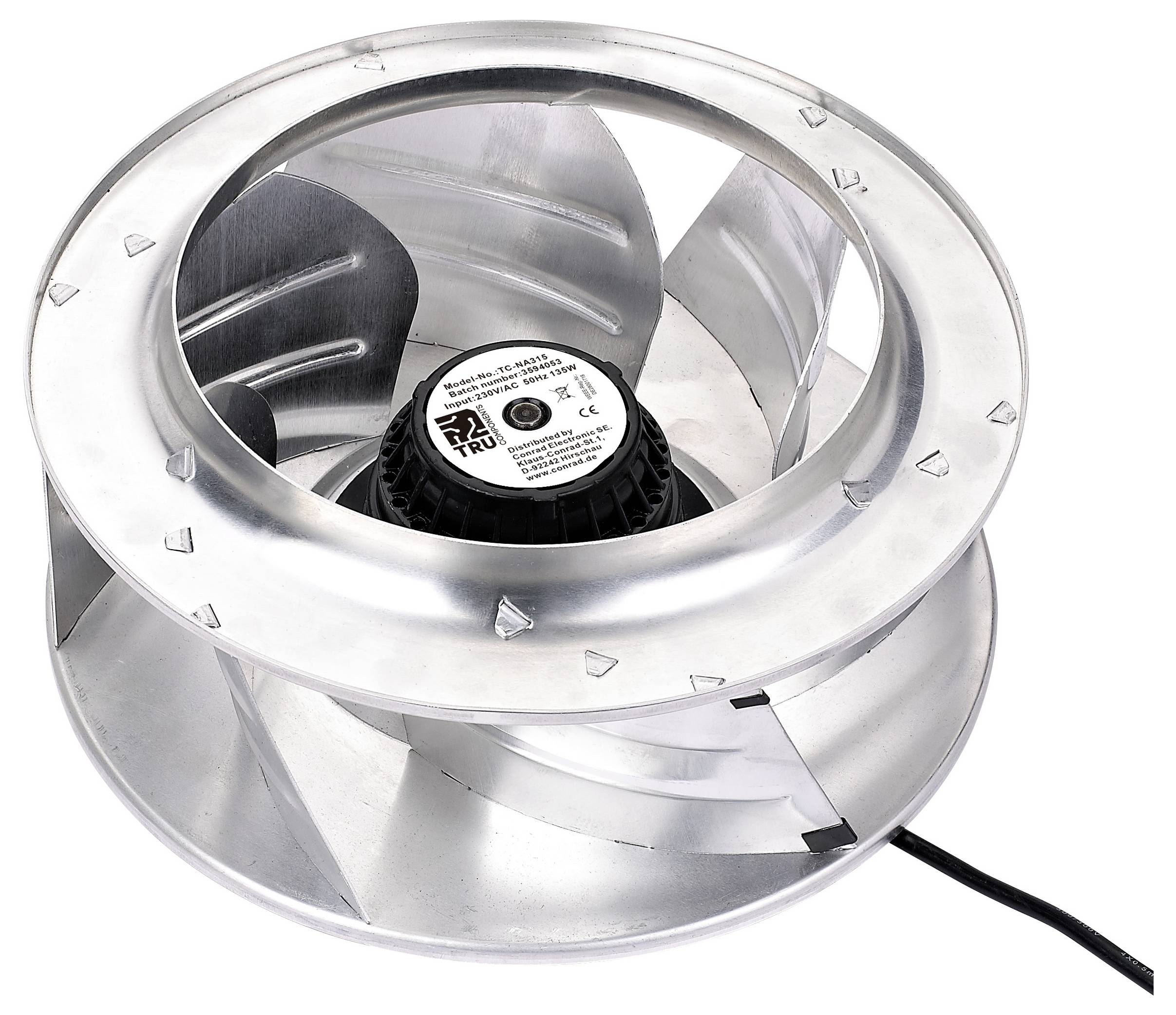

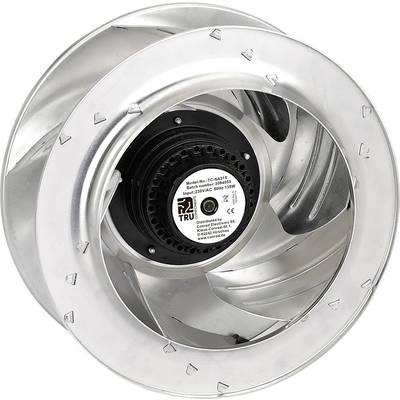

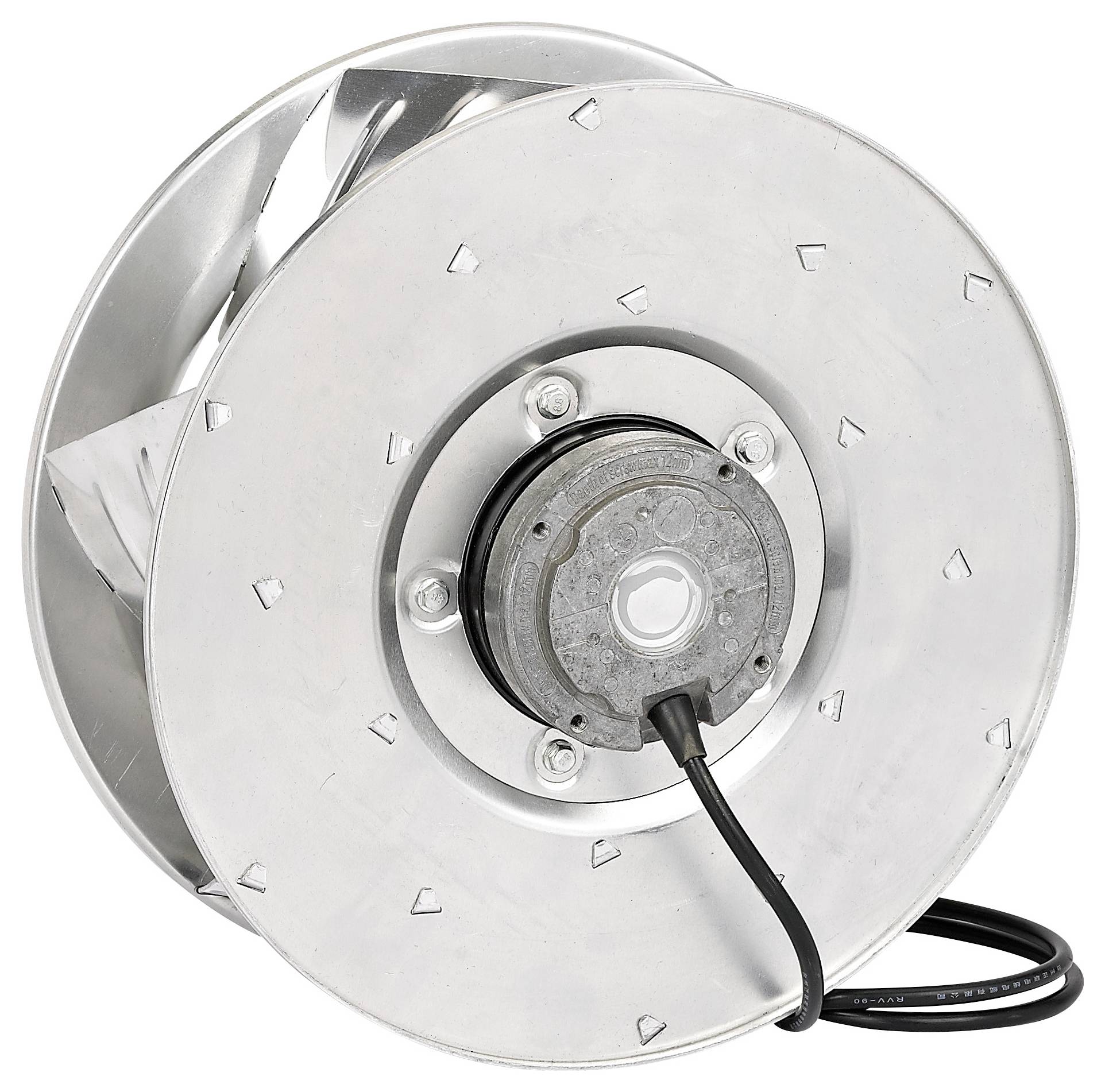

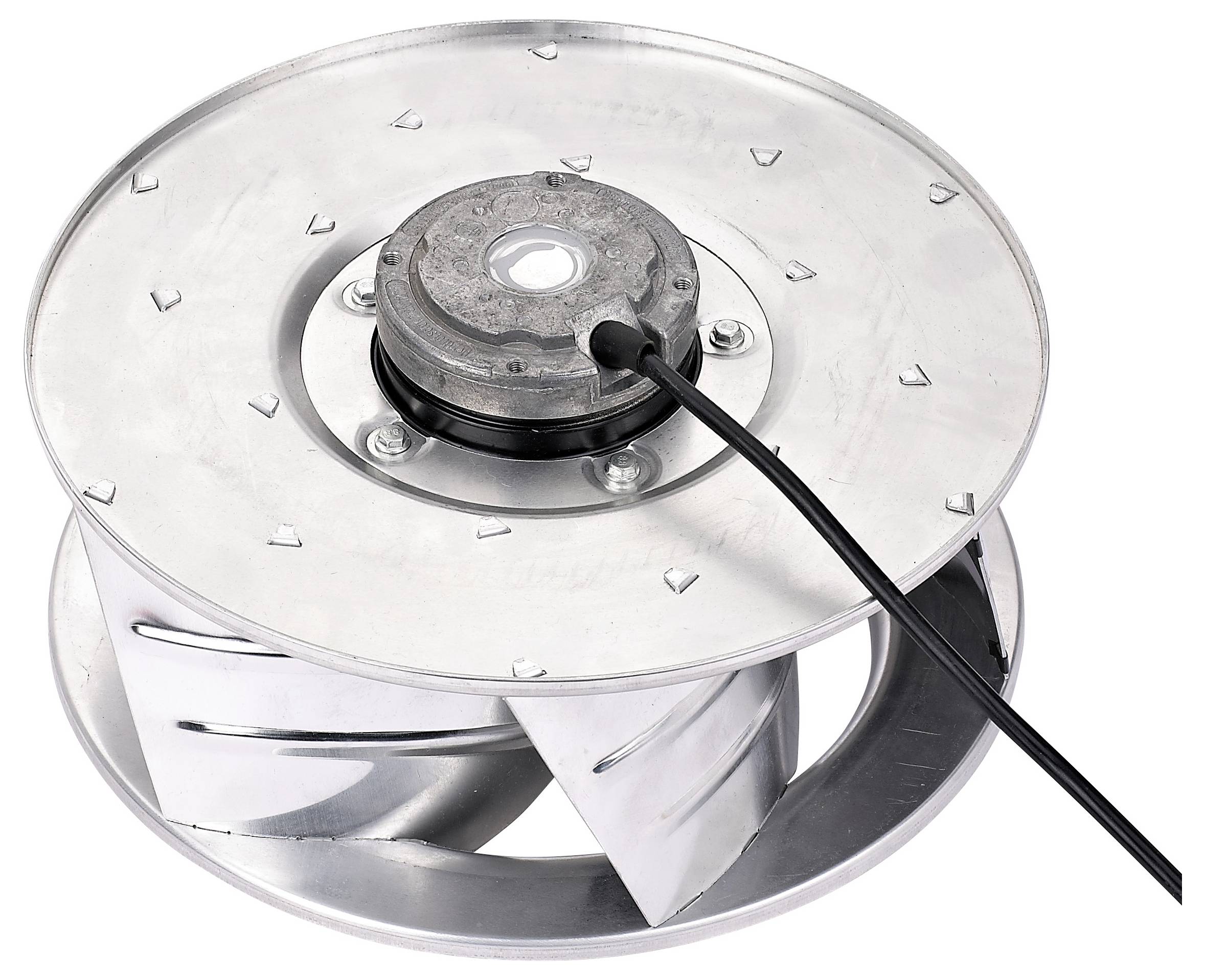

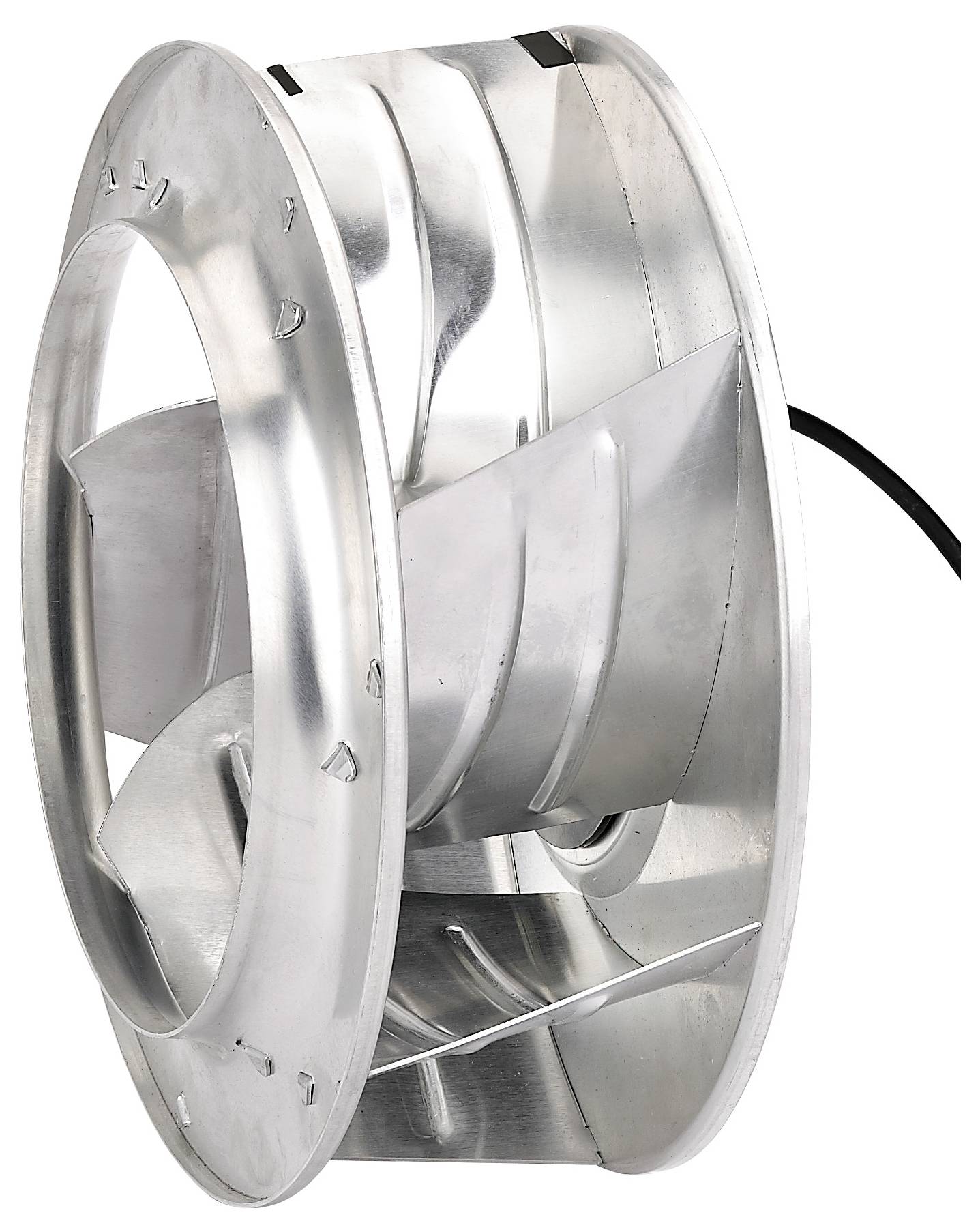

TRU COMPONENTS TC-NA315 Radial extractor 230 V AC 2140 m³/h (Ø x H) 316 mm x 184 mm
EAN:
Part number:
Item no:
Product type
Radial extractor
Nominal voltage
230 V AC
Power
135 W
Air flow rate
2140 m³/h
Material
Iron
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Highlights & Details
Centrifugal fan 230VAC 316x184mm 2140m³/h
- Dimensions: (Ø x H) 316 mm x 184 mm
- Nominal voltage: 230 V AC
- Air flow rate: 2140 m³/h
Our service for you
Technical specifications
- Current: 0.6 A
- Frame: Iron
- Impeller: Galvanized sheet
- Insulation class: F
- Pressure: 350 Pa
- Product type
Radial extractor
- Type
TC-NA315
- Nominal voltage
230 V AC
- Max. current consumption
0.6 A
135 W
- Rotational speed
1400 U/min
- Noise emission (max.)
65 dB
- Air flow rate
2140 m³/h
- Pressure (max.)
350 Pa
- Material
Iron
- (Ø)
316 mm
- Height
184 mm
- Dim
(Ø x H) 316 mm x 184 mm
- Plastic free packaging
Plastic-free packaging
