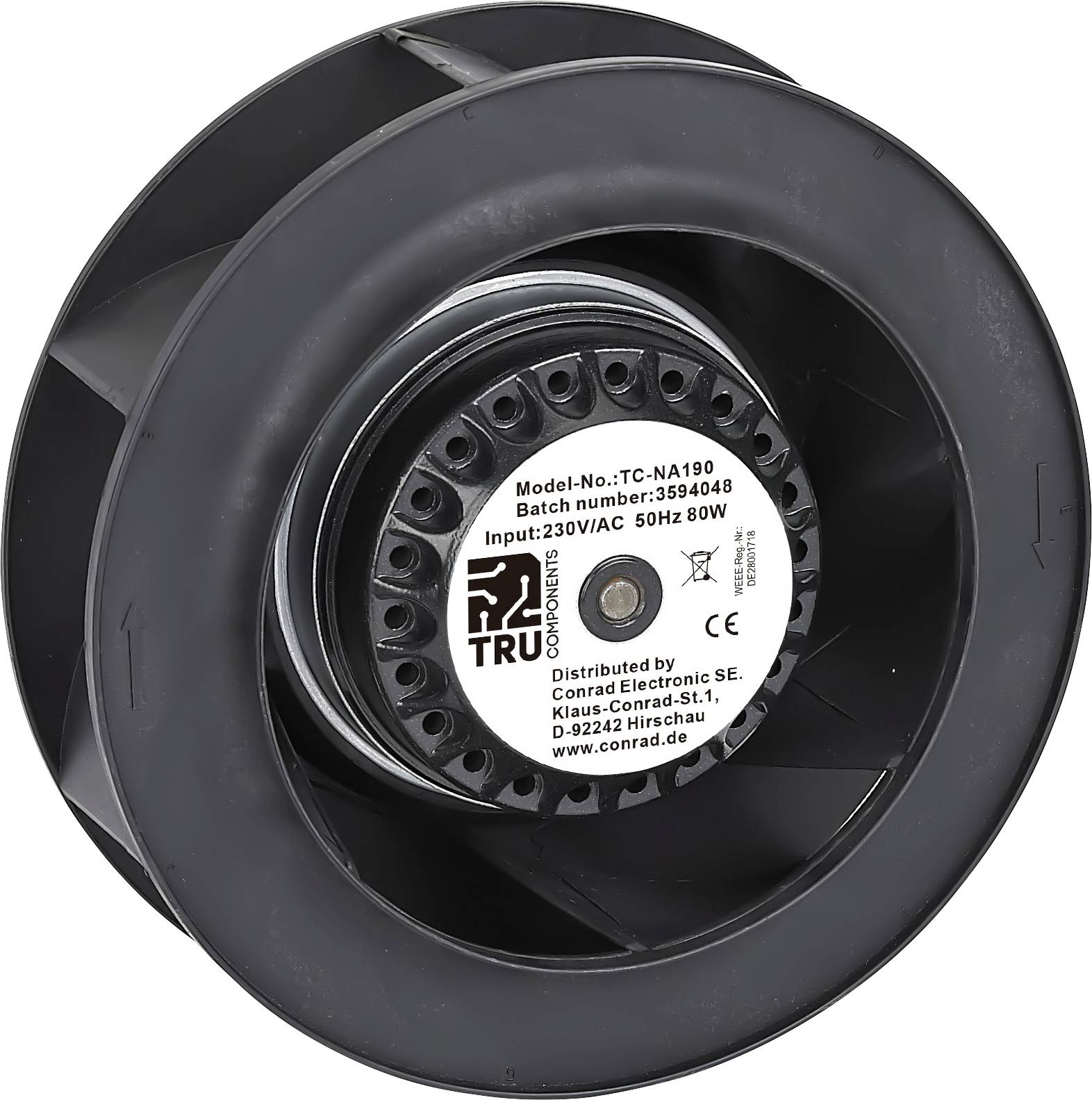

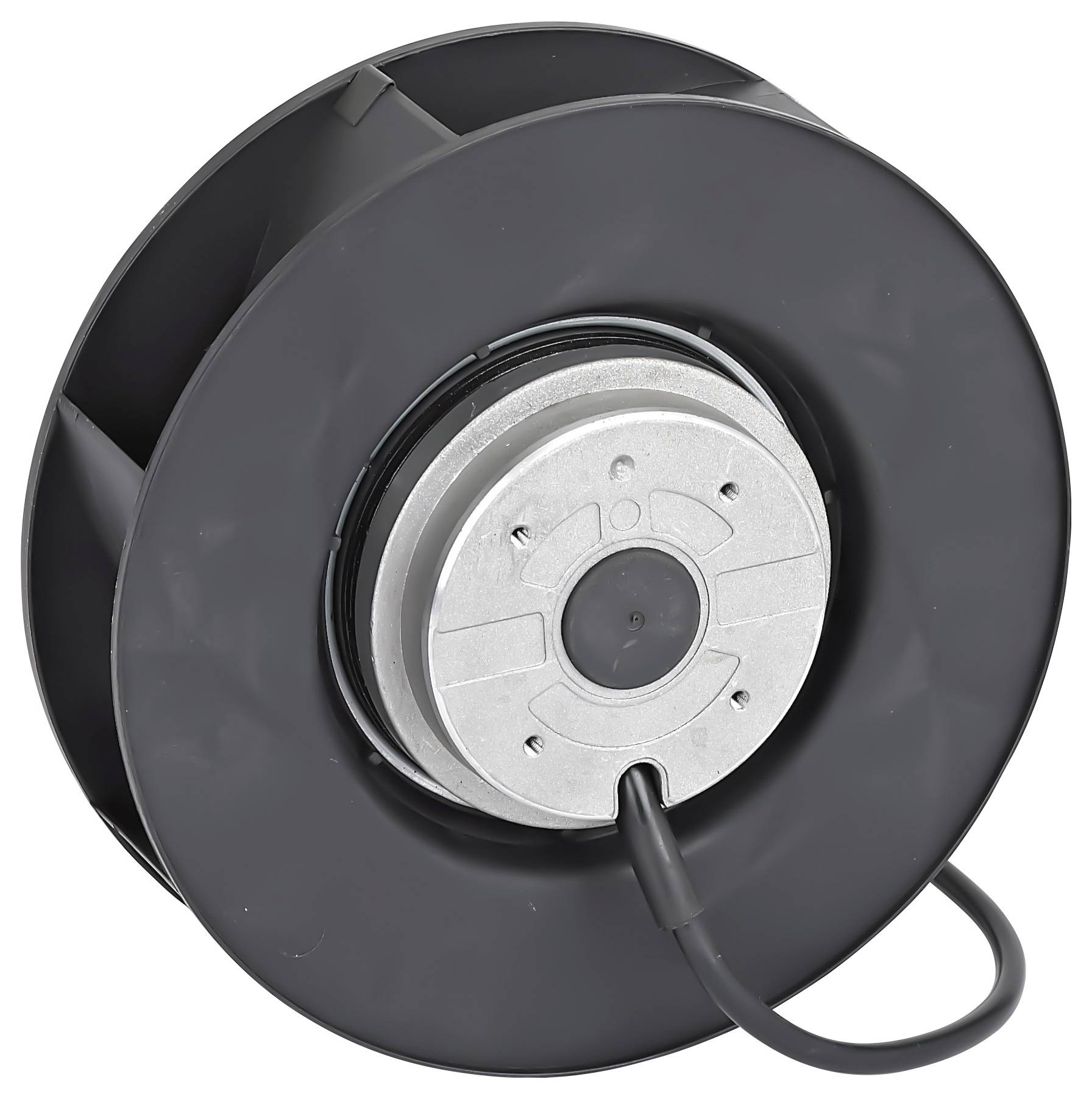

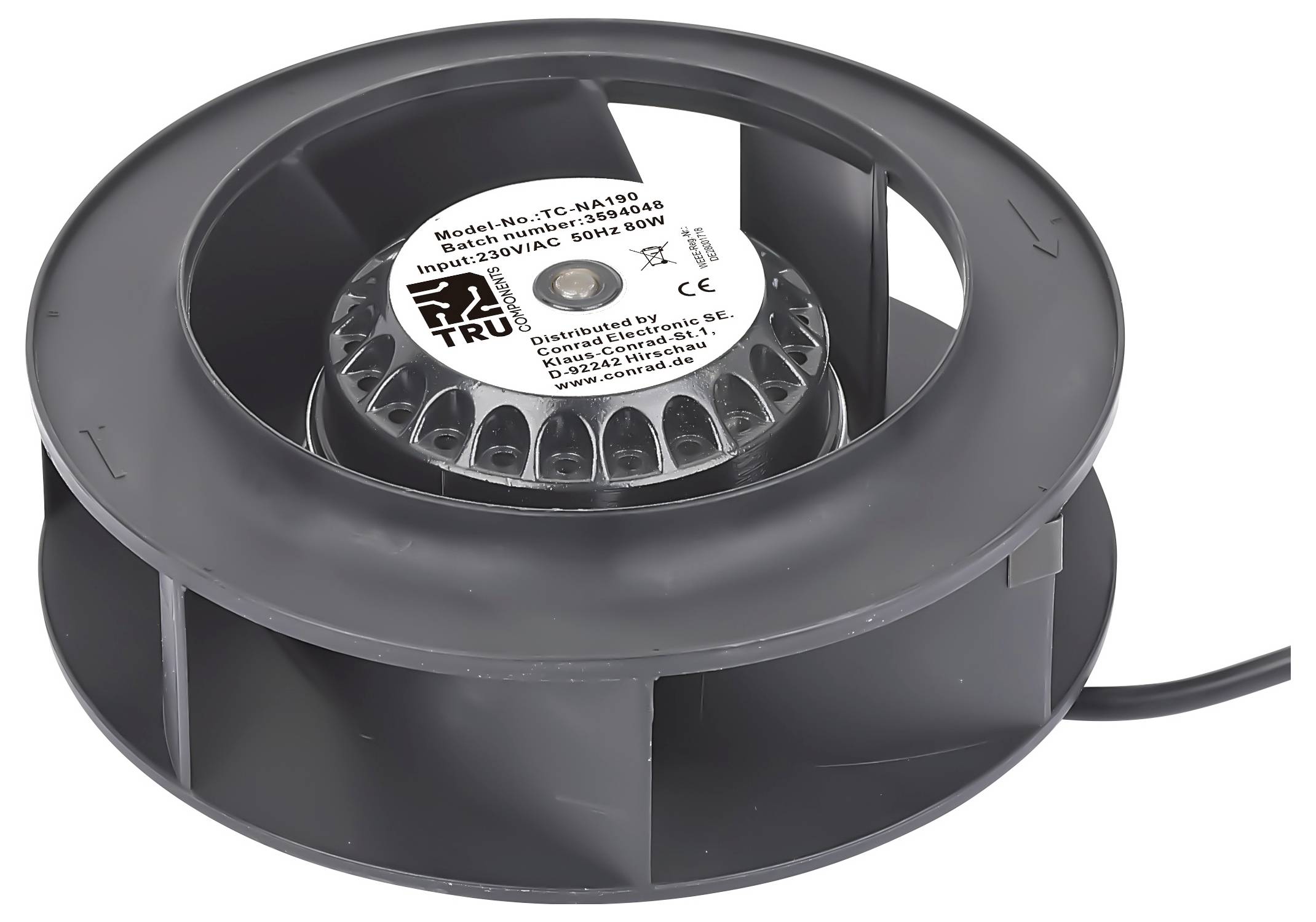

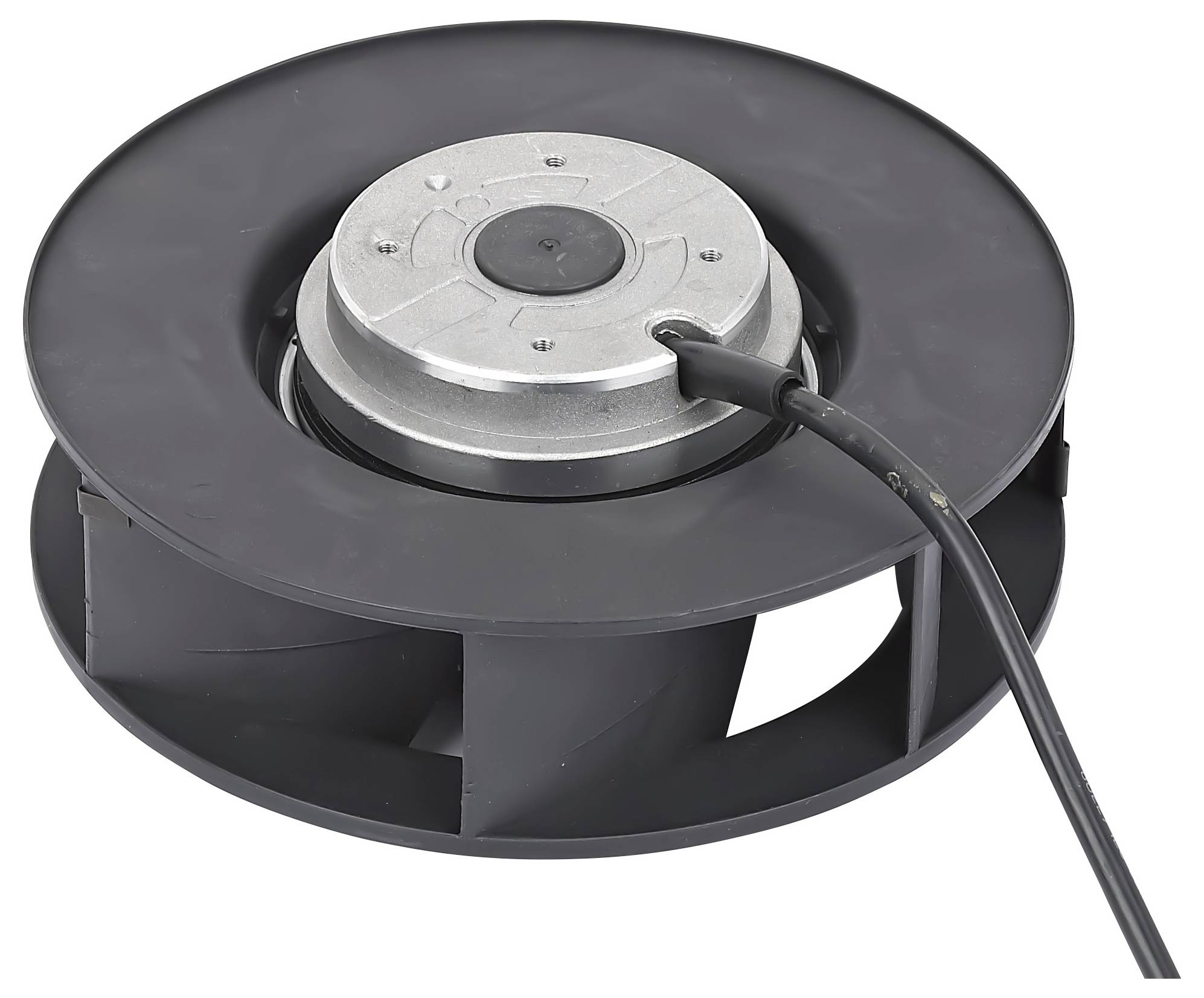

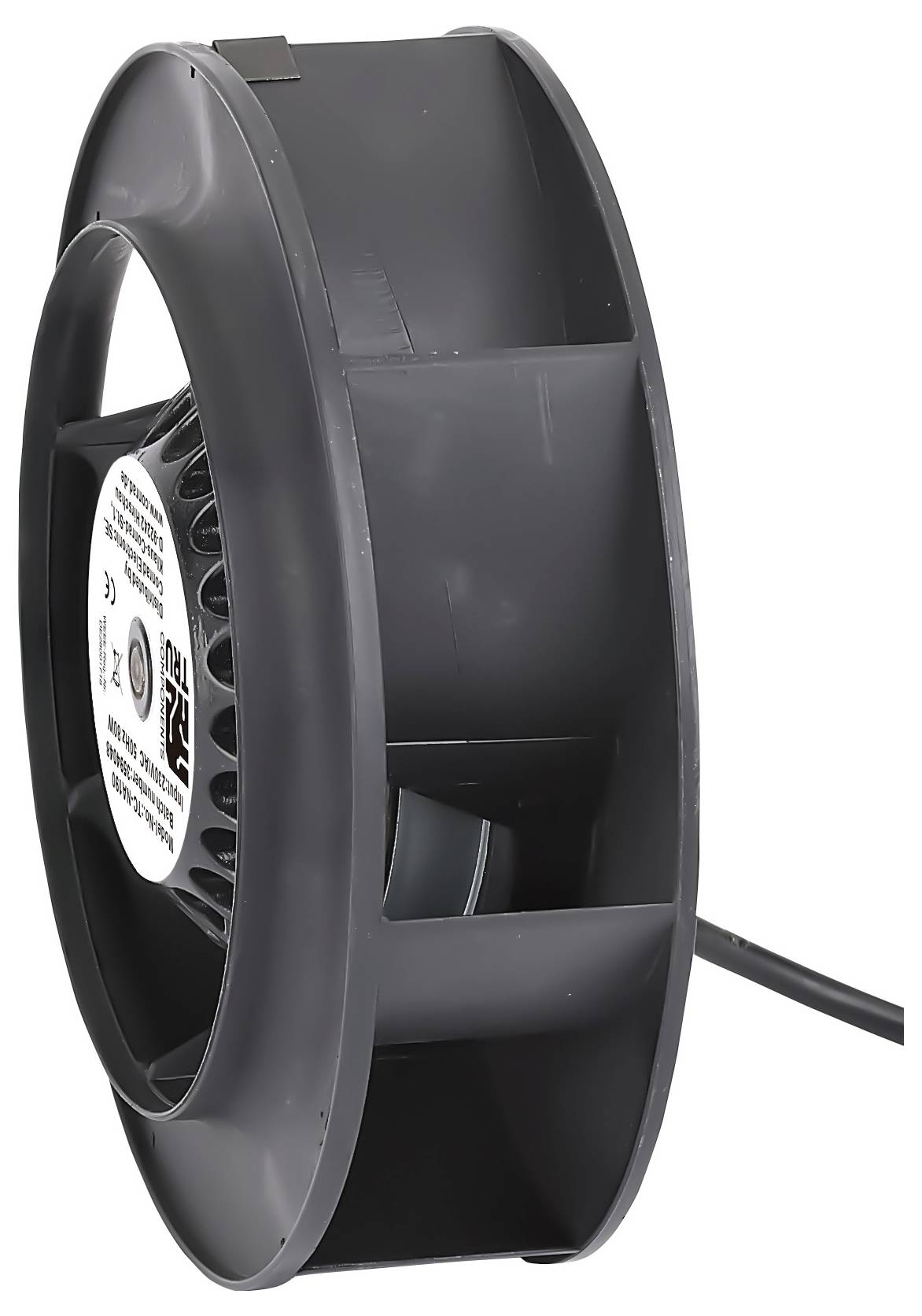

TRU COMPONENTS TC-NA190 Radial extractor 230 V AC 570 m³/h (Ø x H) 190 mm x 68.5 mm
EAN:
Part number:
Item no:
Product type
Radial extractor
Nominal voltage
230 V AC
Power
80 W
Air flow rate
570 m³/h
Material
PA66
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Highlights & Details
Centrifugal fan 230VAC 190x68.5 570m³/h
- Dimensions: (Ø x H) 190 mm x 68.5 mm
- Nominal voltage: 230 V AC
- Air flow rate: 570 m³/h
Our service for you
Technical specifications
- Current: 0.34 A
- Motor type: AC induction external rotor motor
- Frame: PA66
- Impeller: PA66+25GF
- Insulation class: F
- Pressure: 300 Pa
- Product type
Radial extractor
- Type
TC-NA190
- Nominal voltage
230 V AC
- Max. current consumption
0.34 A
80 W
- Rotational speed
2600 U/min
- Noise emission (max.)
66 dB
- Air flow rate
570 m³/h
- Pressure (max.)
300 Pa
- Material
PA66
- (Ø)
190 mm
- Height
68.5 mm
- Dim
(Ø x H) 190 mm x 68.5 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3594048 TRU COMPONENTS TC-NA190 Radial extractor 230 V AC 570 m³/h (Ø x H) 190 mm x 68.5 mm
