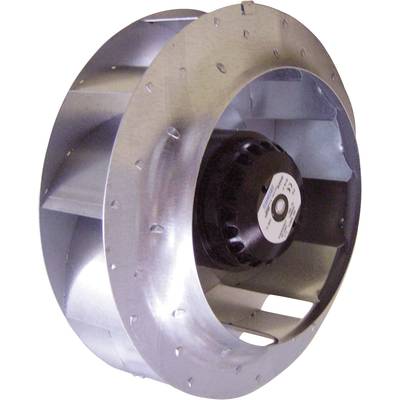

Ecofit 2RRE45-250X50R L47-A3 Radial extractor 230 V AC 1400 m³/h (Ø x H) 252 mm x 103.5 mm
EAN:
Part number:
Item no:
Product type
Radial extractor
Nominal voltage
230 V AC
No. of wires
4
Power
156 W
Air flow rate
1400 m³/h
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 382.35
-15 %
€ 323.53
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Motorized propeller with backward curved blades
- High air flow and pressure increase
- High efficiency
Technical specifications
- Insulation Class: Motor class F
- Protection class IP44
- Product type
Radial extractor
- Type
2RRE45-250X50R L47-A3
- Nominal voltage
230 V AC
- No. of wires
4
- Max. current consumption
0.68 A
156 W
- Noise emission (max.)
73.5 dBa
- Air flow rate
1400 m³/h
- Connection
Open end cable
- Cable length
0.90 m
- Weight
3.4 kg
IP44
- (Ø)
252 mm
- Height
103.5 mm
- Dim
(Ø x H) 252 mm x 103.5 mm
190 W
- Output (max.) (details)
1540 m³/h
- Max. noise generation
74 dBa
- Current consumption
0.83 A
- Connection
Cable 900 mm
- Operating voltage
230 V/AC 50/60 Hz Hz
Documents & Downloads
Datasheet
Datasheet 189390 Ecofit 2RRE45-250X50R L47-A3 Radial extractor 230 V AC 1400 m³/h (Ø x H) 252 mm x 103.5 mm
User & Safety Instructions
User & Safety Instructions 189390 Ecofit 2RRE45-250X50R L47-A3 Radial extractor 230 V AC 1400 m³/h (Ø x H) 252 mm x 103.5 mm
Description
Motorized propeller highest quality for different air-handling applications. Characteristic are the extremely quiet running, long life and maintenance-free. Designed especially for the demands of running wheels developed engine is characterized by high efficiency and low power consumption. The engine is infinitely electronically or Transformer controlled and can be adapted to any operating point. For cooling, electrical and electronic equipment, for example, in cabinets or racks. Propellers clockwise (seen at intake).
Features
- Motor protection of internally wired thermal contacts
- Cable flexible led out (for variable connection)
- Capacitor
Hints
No spiral casing of the propeller is required! Inlet type 16114 available as an accessory.
