econ connect DADB29MC DVI connector Socket, vertical vertical Number of pins: 29 1 pc(s)

EAN:
Part number:
Item no:

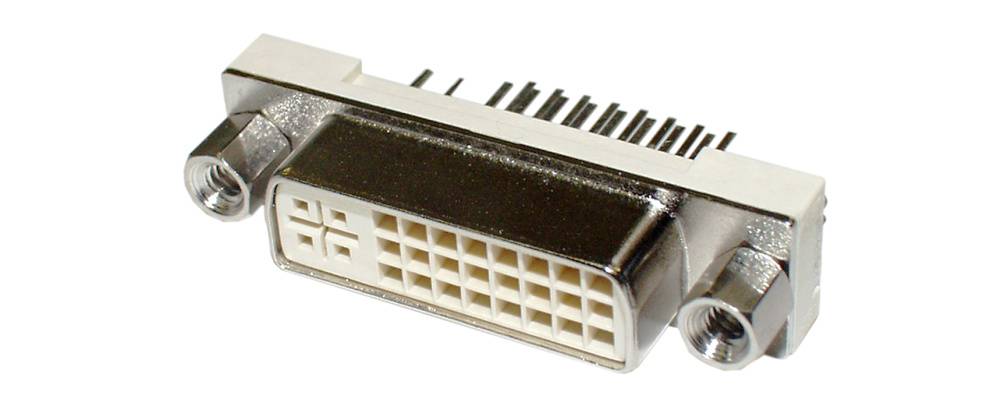

A DVI plug with multiple pins and two screw connections for secure fastening. The plug is used for transmitting video signals.

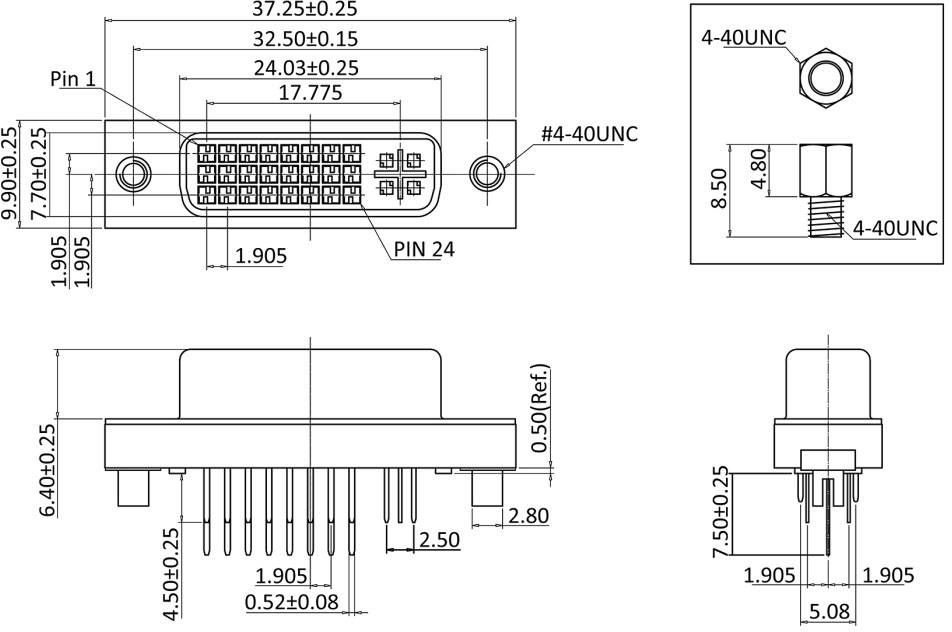

Technical drawing of a connector with dimensions, hole positions, and mounting details in millimetres. Top view, rear view, and side view illustrated.
'Technical drawing of a connector with dimensions and pin configuration. Shows top view, side view, and assembly view.'

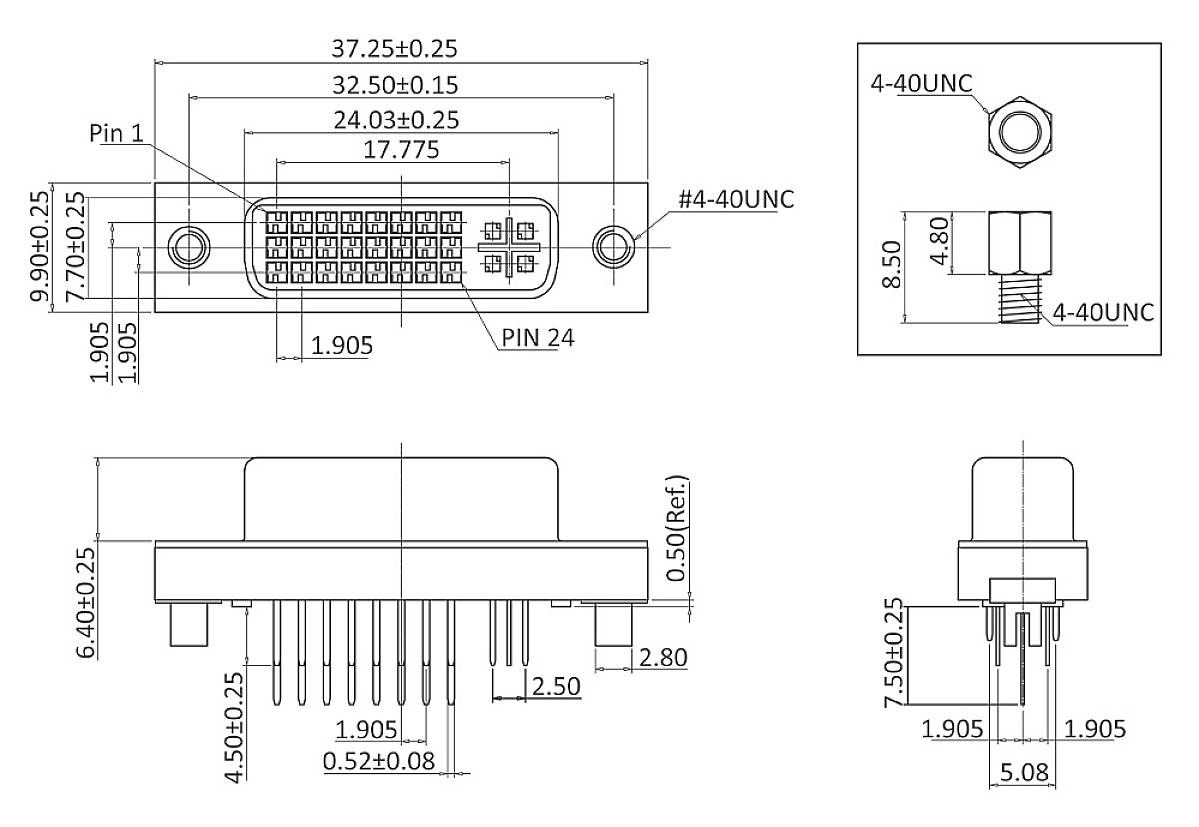

Technical drawing of a connector with dimensions in millimetres, showing front view and side profiles, including screw positioning.
1/4
Image similar
Product type
DVI connector
Connector type
Socket, vertical vertical
Connection
Solder pins
Number of pins
29
Contact material
Brass gold plated
Datasheet (PDF)
Fast track dispatch on Fri 23 Oct
376 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.49 / piece)
€ 2.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

  • DVI connector
  • Socket, vertical vertical

Technical specifications

Type

analogueue/digital

Product type

DVI connector

Connector type

Socket, vertical vertical

Connection

Solder pins

Number of pins

29

Type

Installation socket

Contact material

Brass gold plated

Material (details)

Brass

Manufacturer part #

DADB29MC

Type

DADB29MC

Content

1 pc(s)

Nominal current

1.5 A

Temperature range

-55 ℃ to 85 °C °C

Seal type

Screw-on

Documents & Downloads

Datasheet

Datasheet 2521067 econ connect DADB29MC DVI connector Socket, vertical vertical Number of pins: 29 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2521067 econ connect DADB29MC DVI connector Socket, vertical vertical Number of pins: 29 1 pc(s)
