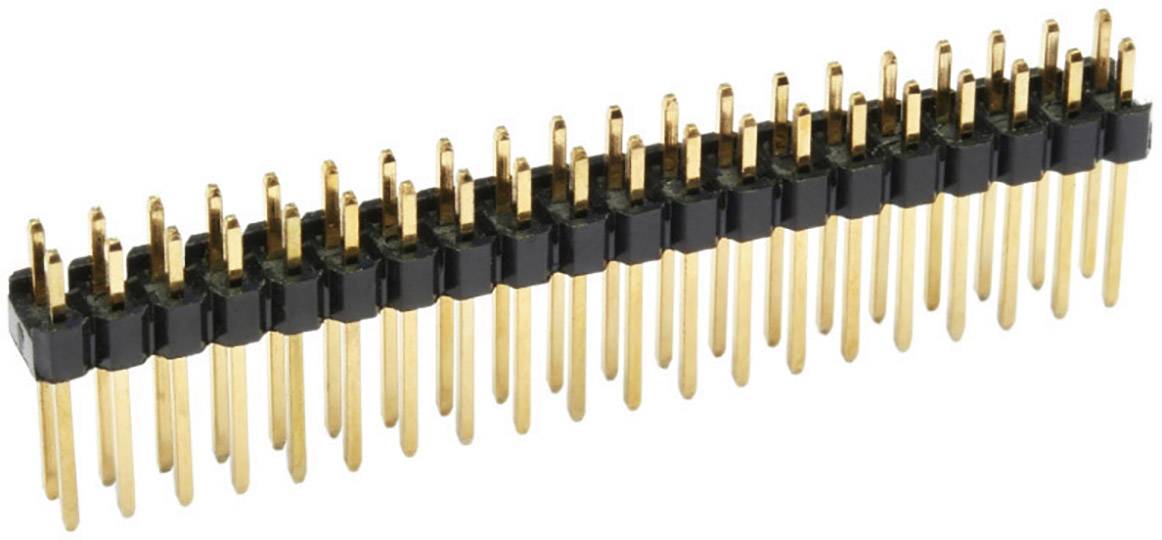

A series of gold-plated pin headers with a black plastic carrier, used for electrical connection in electronic devices.

Image similar

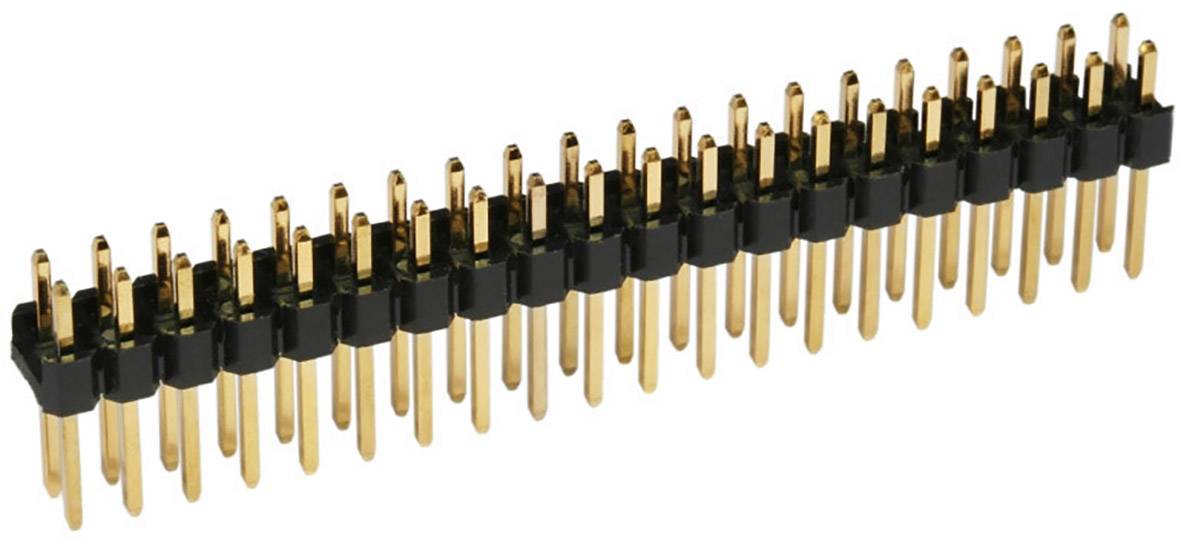

A series of gold-plated pin headers with a black plastic carrier, used for electrical connection in electronic devices.

Image similar

econ connect

Our service for you

Datasheet (PDF)

English

Fast track dispatch on Fri, 11 Sep

452 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.27 / piece)

€ 1.35

plus VAT.

Report legal concerns

Highlights & Details

Content 1 pc(s)
No. of rows 2
Pins per row 10

Technical specifications

Connector type: Pin strip, straight

No. of rows: 2

Pins per row: 10

Total number of pins: 20

CS: 2.54 mm

Connection: Solder pins

Factory colour: Black

Pin shape: Square

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact material: Copper alloy

Connector orientation: Perpendicular (to the PCB)

Manufacturer part #: SLSD20GA

Content: 1 pc(s)

Connector contact surface: Gold plated

Board contact surface: Gold plated

Connector system: wire-to-board

Type: SLSD20GA

Insulation material: Nylon according to UL94V0

Connection angle: 180°

RoHS-compliant: Yes

Max. temperature: 105 °C

Min. temperature: -40 °C

Product type: Pin strip (standard)
