econ connect Pin strip (standard) Total number of pins 2 Contact spacing: 2.54 mm PSL2W 1 pc(s)

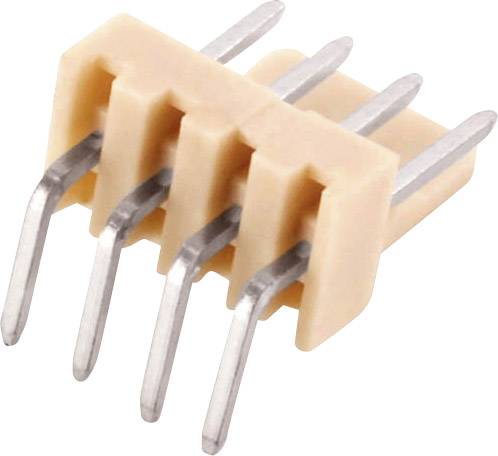

A four-pole connector with flat-bendable pins, housed in a cream-coloured plastic casing, commonly used for electronic connections.
A simple diagram shows an electronic connector with multiple pins attached to a rectangular base.
Connector details: Dimensions are 5.8 mm length, 3.3 mm width, 2.2 mm height. Contact spacing is 2.54 mm.
1/3
Image similar
Product type
Pin strip (standard)
Connector type
Pin strip, right angle
No. of rows
1
CS
2.54 mm
Total number of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
1229 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 30
Total (€ 0.11 / piece)
€ 0.11
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Terminal strip for housing CV

  • Content: 1 pc(s)
  • No. of rows: 1
  • Total number of pins: 2

Our service for you

Technical specifications

Product type

Pin strip (standard)

Connector type

Pin strip, right angle

No. of rows

1

Connector system

wire-to-board

CS

2.54 mm

Pins per row

2

Total number of pins

2

Width

16.90 mm

Pin Ø

1.02 mm

Pin shape

Rectangular

Content

1 pc(s)

Dim

(L x W x H) 19.14 x 16.90 x 5.08 mm

Connection

Print

Actuation direction

Parallel (to the PCB)

Case material

Polyamide

Manufacturer part #

PSL2W

Factory colour

Beige

Industrial packaging

No

Insulation material

Polyamide

Contact material

Copper alloy

Board contact surface

Tin plated

Connector contact surface

Tin plated

Height

5.08 mm

Length

19.14 mm

RoHS-compliant

Yes

Connector orientation

Parallel (to the PCB)

Max. temperature

+85 °C

Min. temperature

-25 °C

Type

PSL2W

Documents & Downloads

Datasheet

Datasheet 1311420 econ connect Pin strip (standard) Total number of pins 2 Contact spacing: 2.54 mm PSL2W 1 pc(s)
