Name: econ connect SIL socket (standard) No. of rows: 1 Pins per row: 17 BLG1X17 1 pc(s)
Brand: econ connect
SKU: 1492308
Availability: InStock

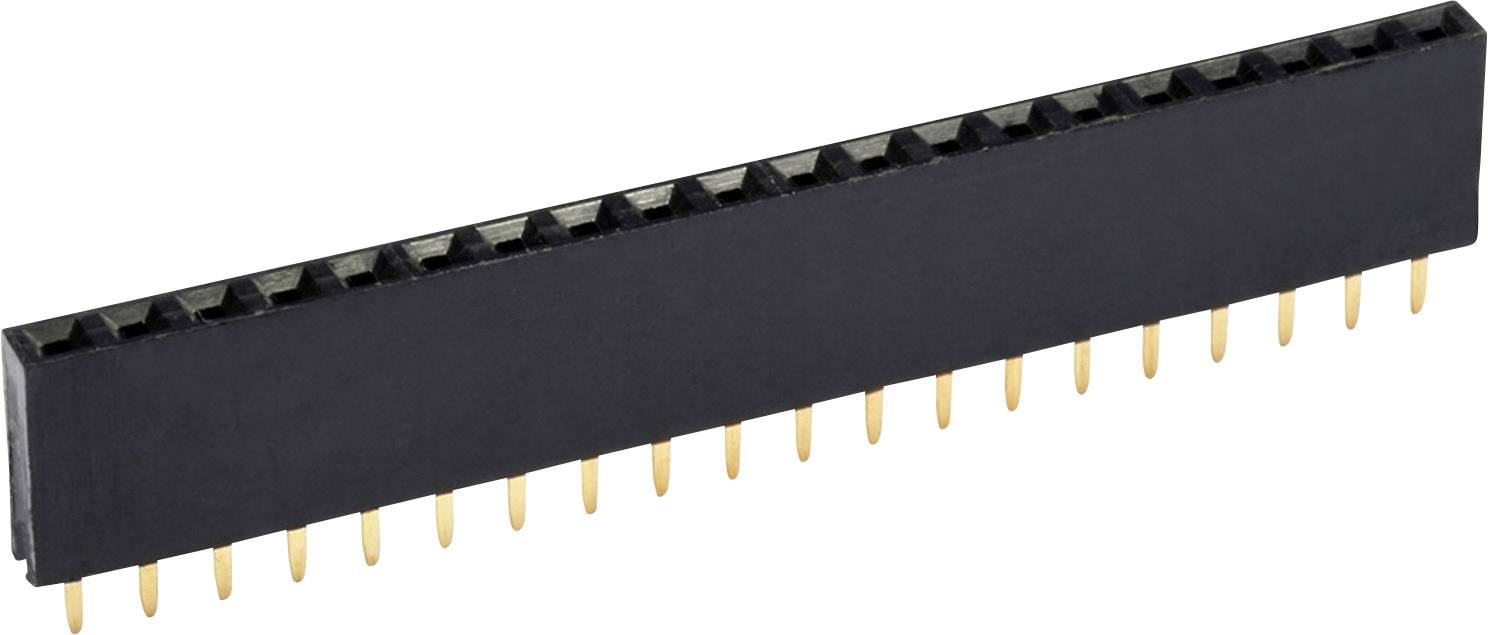

Connector with 20 pins for electronic circuits. Rectangular black housing with gold-plated pins. Used in device interfaces.

'Connector sketch with dimensions: 8.50 x 2.54 mm, pin spacing 2.54 mm, recommended PCB layout. Tolerance details provided.'

1/2

Image similar

Connector type

Power strip, straight

Product type

SIL socket (standard)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

178 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.39 / piece)

€ 3.90

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket connector, straight RM 2.54 mm

Content 1 pc(s)
No. of rows 1
Pins per row 17

Our service for you

Technical specifications

Connector type: Power strip, straight

Product type: SIL socket (standard)

No. of rows: 1

Pins per row: 17

Total number of pins: 17

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 1000 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Copper alloy

Case material: PBT, UL94V-0

Pin Ø: 0.64 mm

Pin length (PCB): 3.15 mm

Separable: No

Dim: (L x W x H) 43.68 x 43.68 x 8.5 mm

Connector orientation: Perpendicular (to the PCB)

Manufacturer part #: BLG1X17

Industrial packaging: No

Content: 1 pc(s)

Width: 43.68 mm

Height: 8.5 mm

Length: 43.68 mm

RoHS-compliant: Yes

Max. temperature: 105 °C

Min. temperature: -40 °C

Type: BLG1X17
