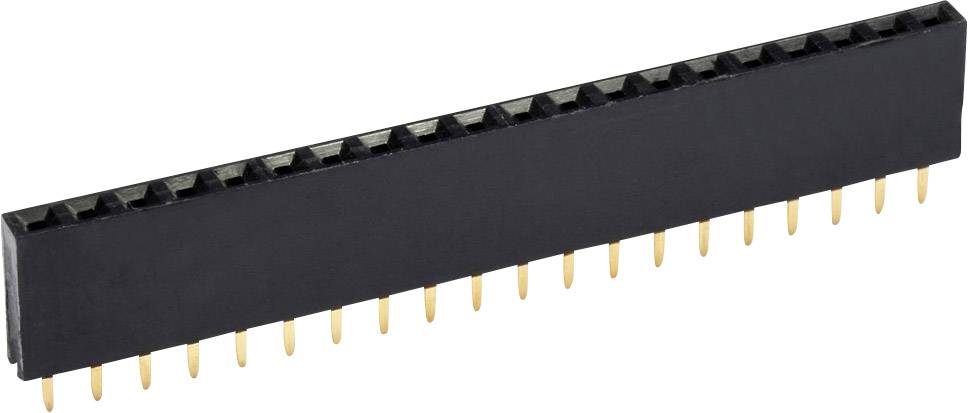

econ connect SIL socket (standard) No. of rows: 1 Pins per row: 20 BLG1X20 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.52
21
8% = € 0.04
€ 0.48
35
12% = € 0.06
€ 0.46
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.52 / piece)
€ 3.64
plus VAT.
Highlights & Details
Socket connector, straight RM 2.54 mm
- Content 1 pc(s)
- No. of rows 1
- Pins per row 20
Technical specifications
- Connector type
Power strip, straight
- No. of rows
1
- Pins per row
20
- Total number of pins
20
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
1000 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
PBT, UL94V-0
- Pin Ø
0.64 mm
- Pin length (PCB)
3.15 mm
- Separable
No
- Dim
(L x W x H) 51.3 x 51.3 x 8.5 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
BLG1X20
- Content
1 pc(s)
- Height
8.5 mm
- Length
51.3 mm
- Width
51.3 mm
- Industrial packaging
No
- Type
BLG1X20
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Product type
SIL socket (standard)
Documents & Downloads
Datasheet
Datasheet 1492278 econ connect SIL socket (standard) No. of rows: 1 Pins per row: 20 BLG1X20 1 pc(s)
