Name: econ connect SIL socket (standard) No. of rows: 1 Pins per row: 4 BLW1X4 1 pc(s)
Brand: econ connect
SKU: 1492286
Availability: InStock

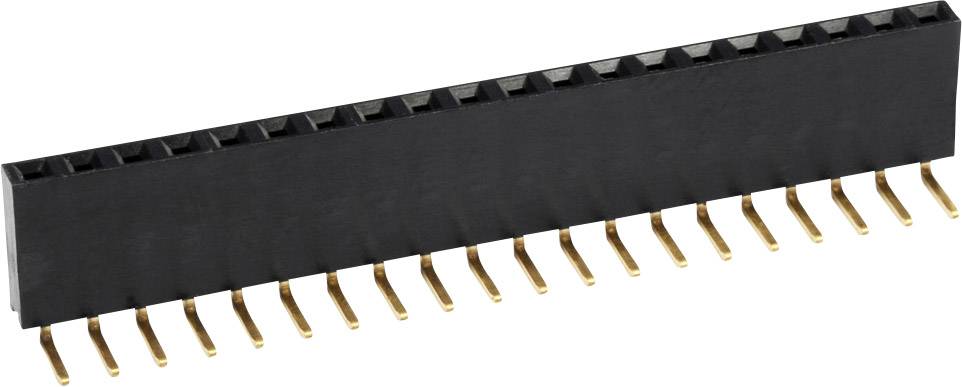

A black, rectangular electronic connector with gold-plated pins used for connecting components on a circuit board.

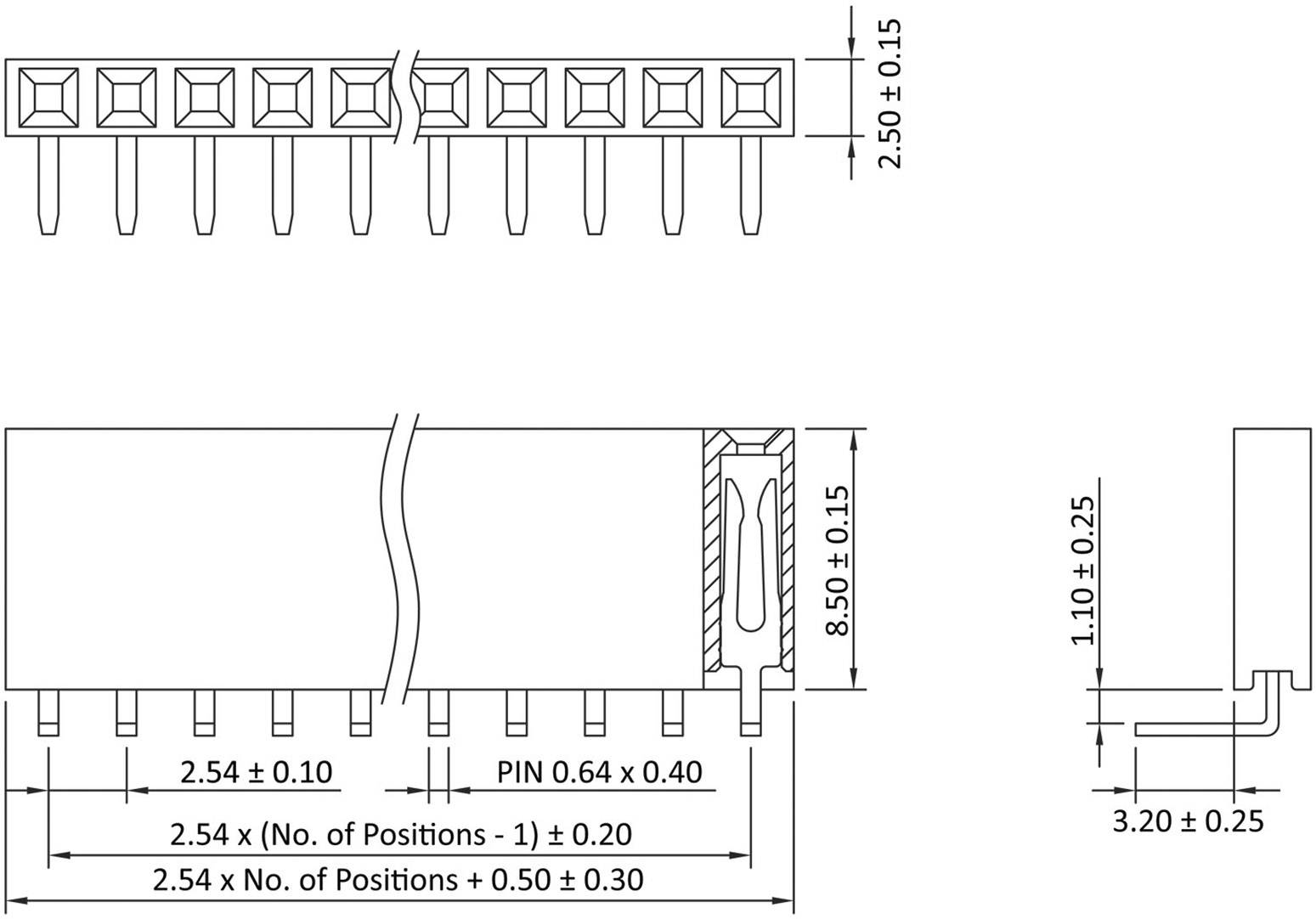

Technical drawing of a connector with dimensions. Side and top views show details such as pin spacing and height.

1/2

Image similar

Connector type

Power strip, right angle

Product type

SIL socket (standard)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

676 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 20

Total (€ 0.19 / piece)

€ 3.80

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket strip, angled RM 2.54 mm

Content 1 pc(s)
No. of rows 1
Pins per row 4

Our service for you

Technical specifications

Connector type: Power strip, right angle

Product type: SIL socket (standard)

No. of rows: 1

Pins per row: 4

Total number of pins: 4

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 1000 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Copper alloy

Case material: PBT, UL94V-0

Pin Ø: 0.64 mm

Pin length (PCB): 3.50 mm

Separable: No

Dim: (L x W x H) 10.66 x 10.66 x 8.5 mm

Connector orientation: Parallel (to the PCB)

Manufacturer part #: BLW1X4

Industrial packaging: No

Content: 1 pc(s)

Width: 10.66 mm

Height: 8.5 mm

Length: 10.66 mm

RoHS-compliant: Yes

Max. temperature: 105 °C

Min. temperature: -40 °C

Type: BLW1X4
