Name: econ connect SIL socket (standard) No. of rows: 2 Pins per row: 13 BLW2X13 1 pc(s)
Brand: econ connect
SKU: 1492398
Availability: InStock

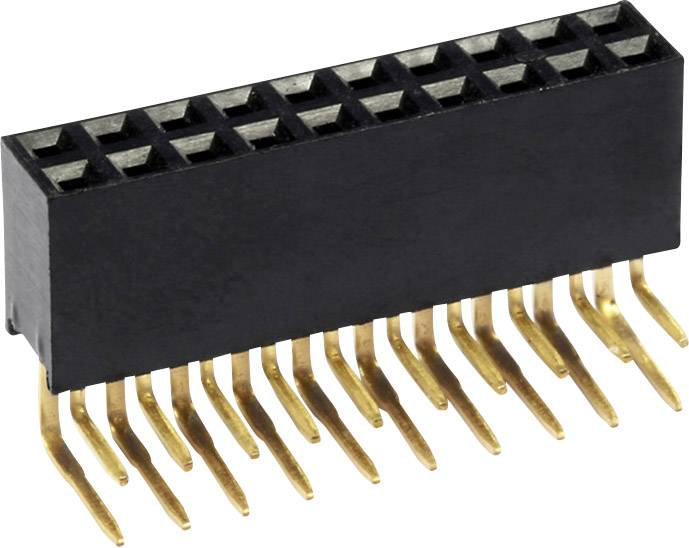

A black electronic connector with multiple golden pins at the bottom, designed for mounting in electronic devices.

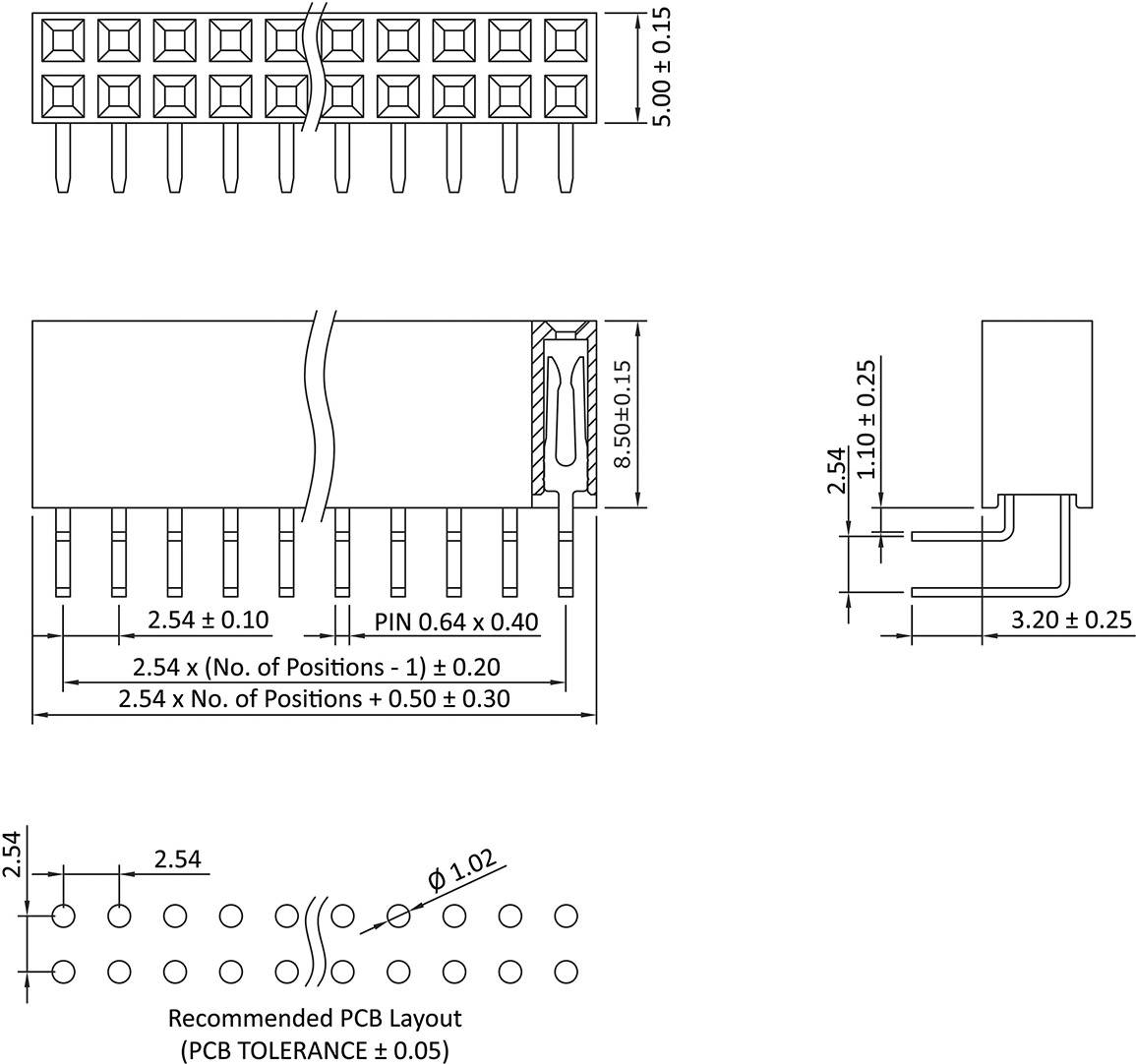

'Technical drawing of an electronic component with dimensions and pin configuration. Top: Pin assignment; bottom: Layout recommendation.'

1/2

Image similar

Connector type

Power strip, right angle

Product type

SIL socket (standard)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

512 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.73 / piece)

€ 3.65

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket strip, angled RM 2.54 mm

Content 1 pc(s)
No. of rows 2
Pins per row 13

Our service for you

Technical specifications

Connector type: Power strip, right angle

Product type: SIL socket (standard)

No. of rows: 2

Pins per row: 13

Total number of pins: 26

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 1000 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Copper alloy

Case material: PBT, UL94V-0

Pin Ø: 0.64 mm

Pin length (PCB): 3.50 mm

Separable: No

Dim: (L x W x H) 33.52 x 33.52 x 8.5 mm

Connector orientation: Parallel (to the PCB)

Manufacturer part #: BLW2X13

Industrial packaging: No

Content: 1 pc(s)

Width: 33.52 mm

Height: 8.5 mm

Length: 33.52 mm

RoHS-compliant: Yes

Max. temperature: 105 °C

Min. temperature: -40 °C

Type: BLW2X13
