Name: econ connect SIL socket (standard) No. of rows: 2 Pins per row: 16 BLG2X16 1 pc(s)
Brand: econ connect
SKU: 1492275
Availability: InStock

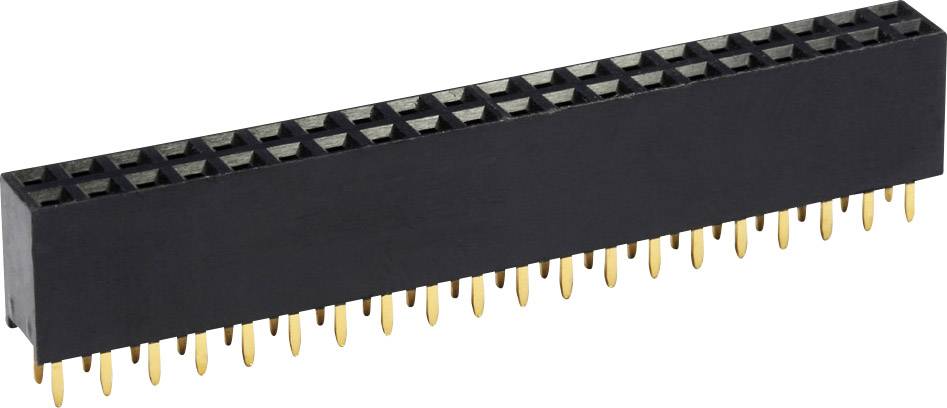

A 40-pin connector with a black plastic housing and gold-plated contacts, used for electronic circuits.

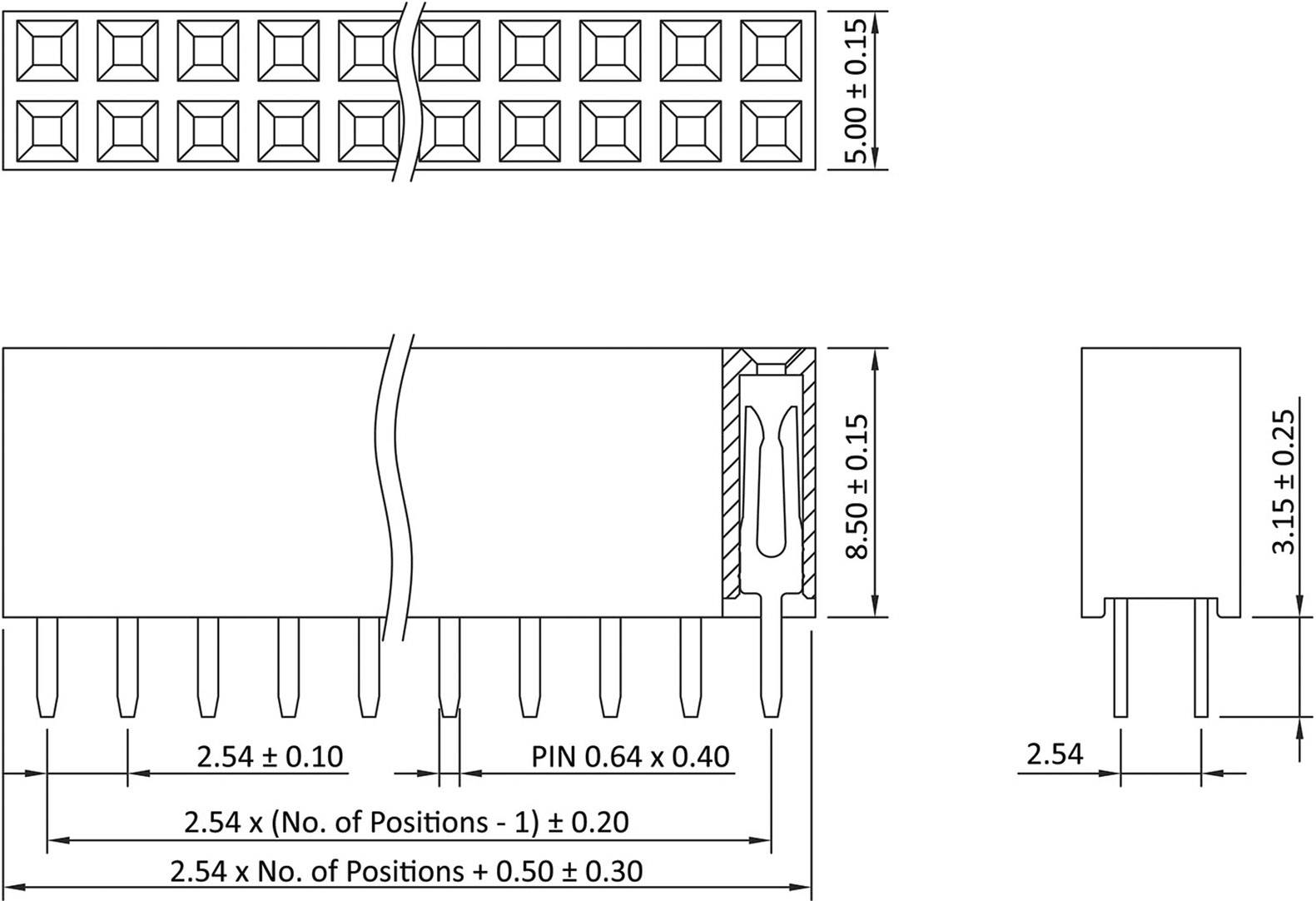

'Technical drawing of a 14-pin connector with dimensions: Length 8.50, Width 3.15, Pin spacing 2.54. Perspective view with details of pin placement.'

1/2

Image similar

Connector type

Power strip, straight

Product type

SIL socket (standard)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

608 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.50 / piece)

€ 2.50

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket strip, straight

Content 1 pc(s)
No. of rows 2
Pins per row 16

Our service for you

Technical specifications

Connector type: Power strip, straight

Product type: SIL socket (standard)

No. of rows: 2

Pins per row: 16

Total number of pins: 32

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 1000 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Copper alloy

Case material: PBT, UL94V-0

Pin Ø: 0.64 mm

Pin length (PCB): 3.15 mm

Separable: No

Dim: (L x W x H) 41.14 x 41.14 x 8.5 mm

Connector orientation: Perpendicular (to the PCB)

Manufacturer part #: BLG2X16

Industrial packaging: No

Content: 1 pc(s)

Width: 41.14 mm

Height: 8.5 mm

Length: 41.14 mm

RoHS-compliant: Yes

Max. temperature: 105 °C

Min. temperature: -40 °C

Type: BLG2X16
