Einhell 4181515 Power X-Change Flutset GE-DP 7535 N LL Effluent sump pump 18500 l/h 9 m

1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov

6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 189.99 / piece)
€ 189.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included

Highlights & Details

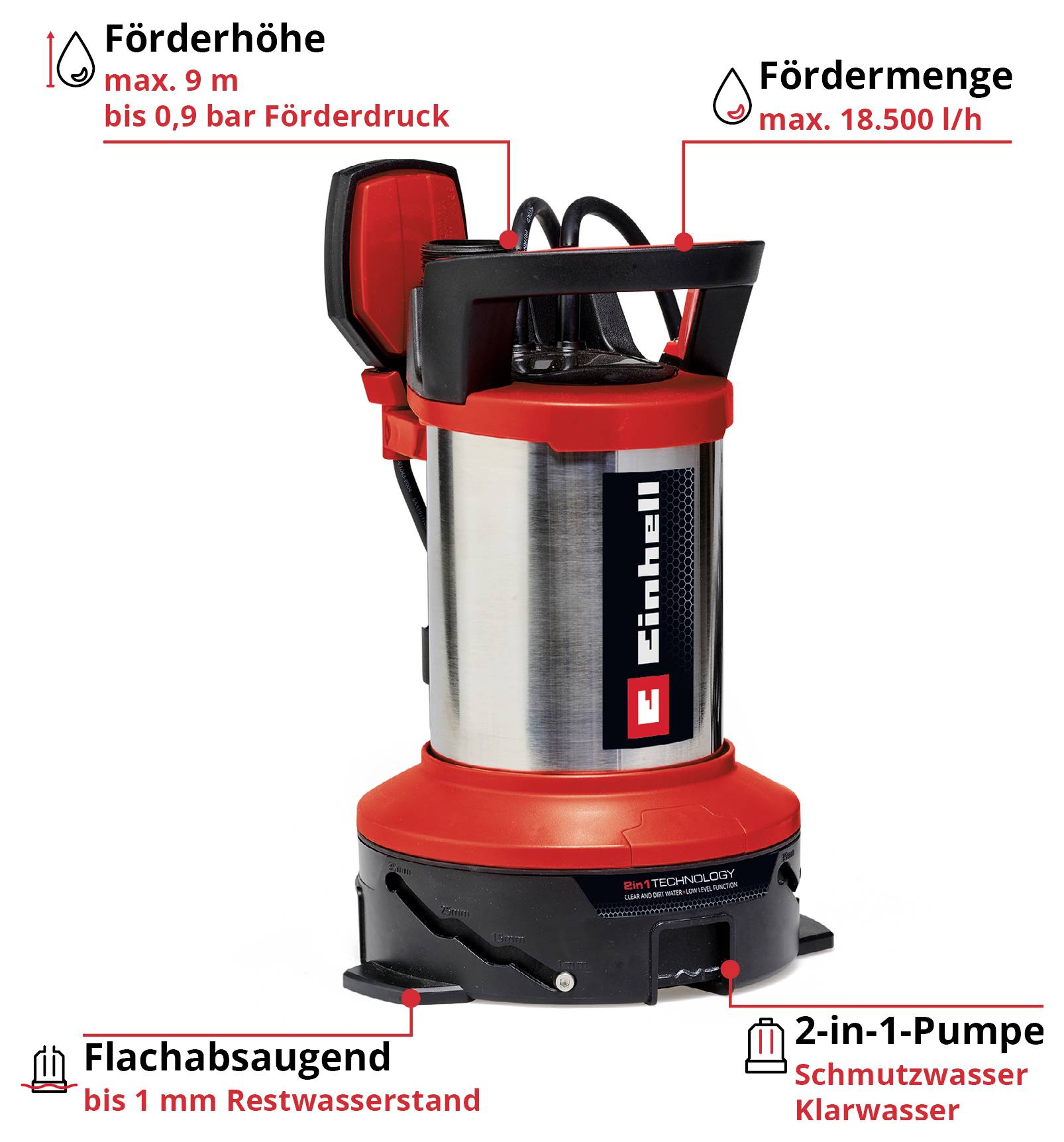

Einhell waste water pump floodlight set GE-DP 7535 N ll eco

  • 2-in-1: Clean water and sewage pump
  • ECO-Power: More flow rate, less power consumption
  • Flat suction up to 1 mm residual water level
  • Can remove up to 35 mm grain size
  • Starting of pump from 15 mm water level possible

Technical specifications

  • Max. Immersion depth 7 m
  • Max. Flow pressure 0.9 bar
  • Max. lifting height 9 m
  • Max. Water temperature 35 ° C.
Product type

Effluent sump pump

Max. delivery head

9 m

Max. feed rate

18500 l/h

Max. discharge pressure

0.9 bar

Operating voltage

230 V

Power consumption (P1)

750 W

Pressure connection

47.81 mm (1 1/2") OT

Connection

47.8 mm (G11/2 AG)

Max. size of solids

35 mm

Immersion depth

7 m

Max. cable length

10 m

Float switch

Yes

Length

246 mm

Width

240 mm

Height

343 mm

Dim

(L x W x H) 246 x 240 x 343 mm

Weight

5.55 kg

IPX8

Depth

250 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3385433 Einhell 4181515 Power X-Change Flutset GE-DP 7535 N LL Effluent sump pump 18500 l/h 9 m

User & Safety Instructions

User & Safety Instructions 3385433 Einhell 4181515 Power X-Change Flutset GE-DP 7535 N LL Effluent sump pump 18500 l/h 9 m

Description

The Einhell flood set GE-DP 7535 N LL ECO is ready for immediate use in case of floods and floods with only a few steps The Einhell waste water pump GE-DP 7535 N LL ECO is a combined pump and can be used for clear and dirty water. A pump for two tasks: Flat suction up to 1 mm remaining water level in clear water mode or extraction of waste water with a grain size of up to 35 mm. The 2-in-1 pump offers higher performance and optimum energy efficiency – with an output of 750 watts it supports up to 18,500 liters of water every hour. It can pump over a maximum delivery height of 9 m of water. Thanks to ECO-Power, the pump has a higher performance despite lower energy consumption. The continuously adjustable float switch offers the choice between continuous operation and a pre-selected on and off level. The dry-run protection connected to the float switch ensures that the engine only works if the waste water pump is in the water and thus prevents damage to the device. A pump start is possible starting from a water level of just 15 mm. With the suction level regulation through a simple rotary movement a fast adjustment can be made in 4 stages of the desired function. A rope can be attached to the pump using suspension eyes, allowing it to be easily drained and controlled. The robust pump casing made of stainless steel and the high-quality sliding ring seal withstands even the most difficult drainage tasks and provides a long life. The practical carrying handle makes this 2-in-1 combination pump quick and easy to use anywhere and it is immediately available if there is flooding. The Einhell flood set GE-DP 7535 N LL ECO consists of the 2-in-1 dirt water pump with a universal adapter for 25/38 mm and 33.3 mm (1"), a 10 m long fabric hose with three quick connectors, a quick connector and a plastic box that prevents clogging by mud.

This text is machine translated.

Features

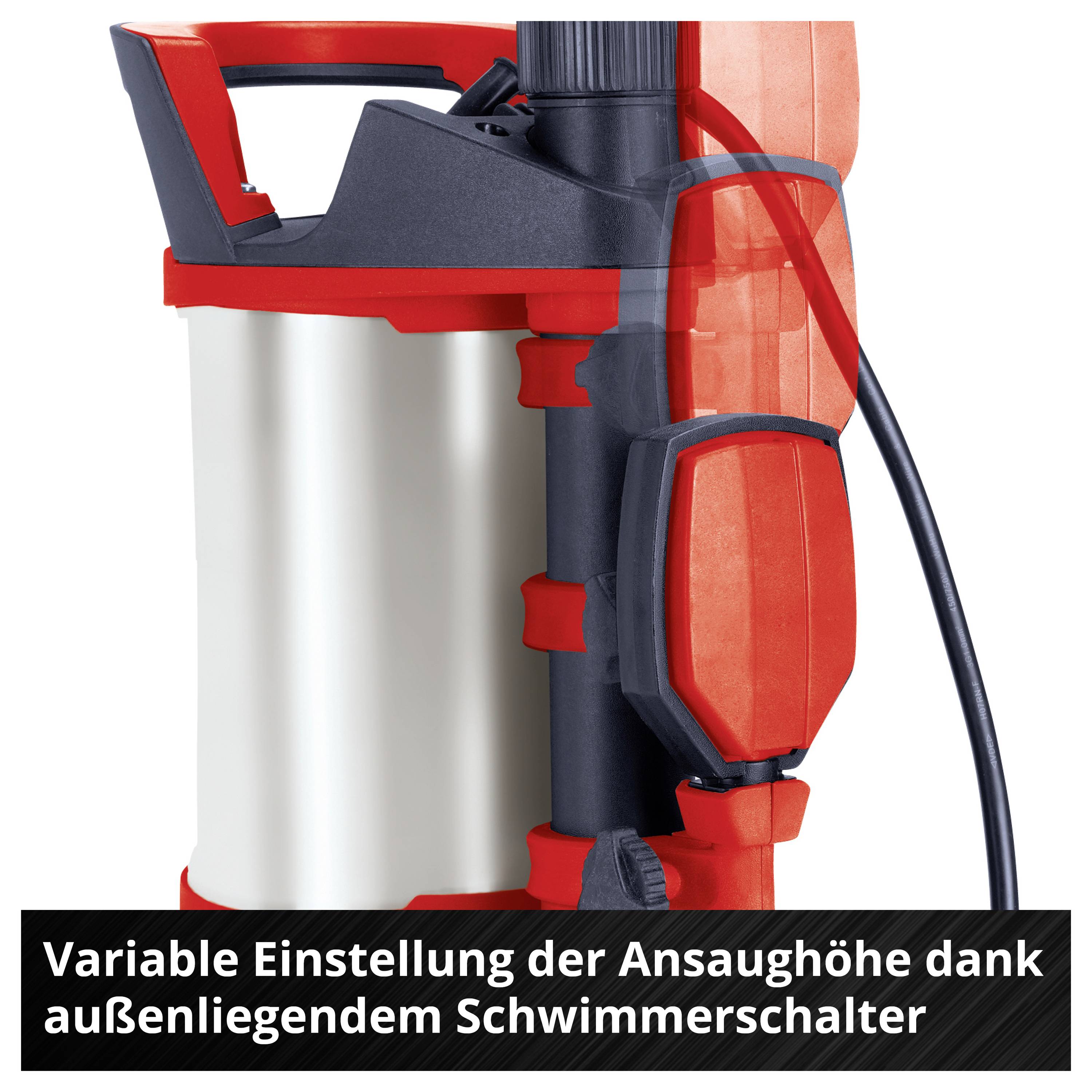

  • Continuously adjustable float switch
  • Continuous mode for continuous suction
  • Thermal overload protection protects the motor against overheating
  • Built-in non-return valve prevents water return
  • High-quality mechanical seal for long life
  • Easily accessible hose connection on the top of the pump
  • Carry handle with integrated hook
  • Hose connector 47.8 mm (1 1/2" AG)

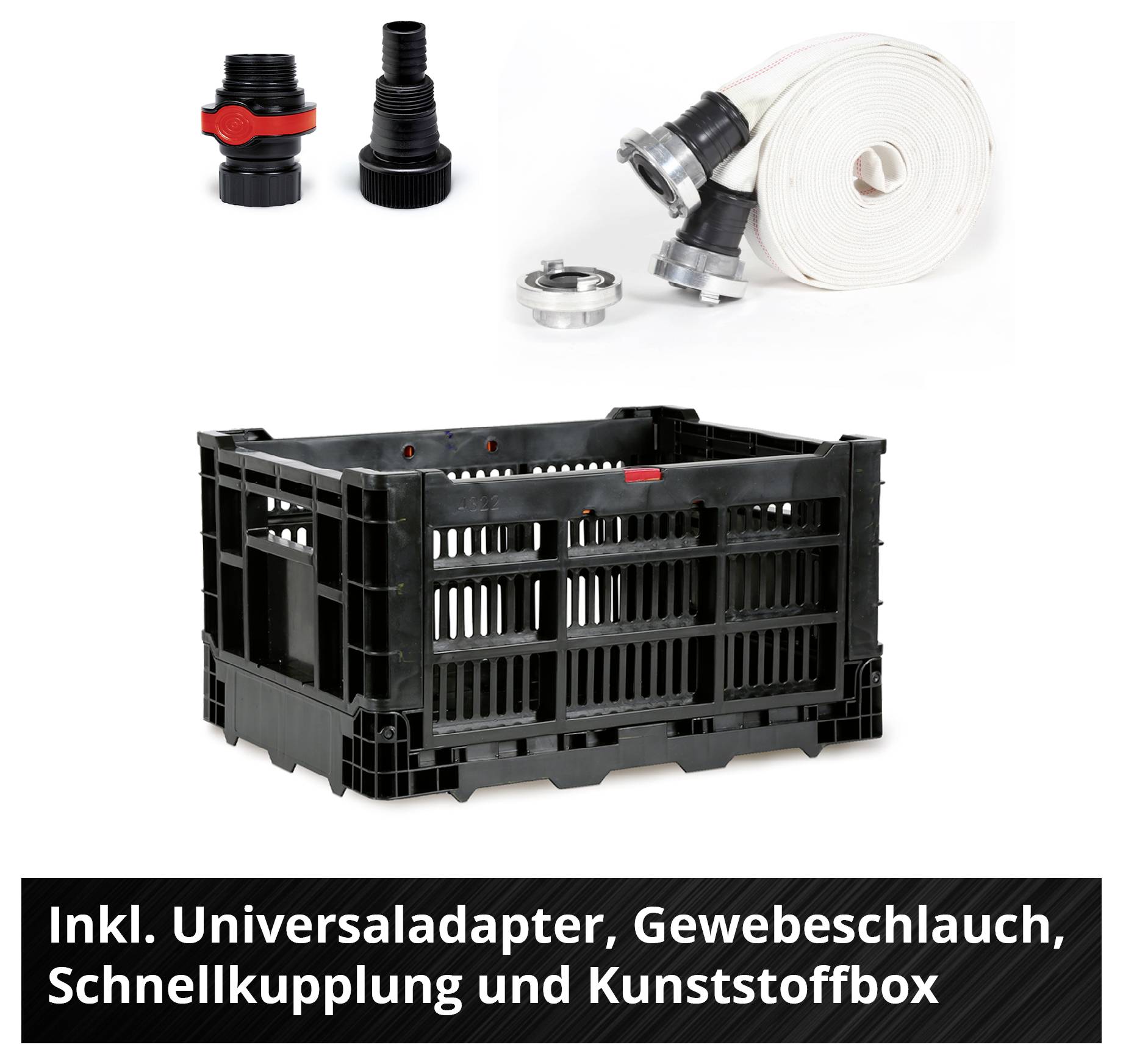

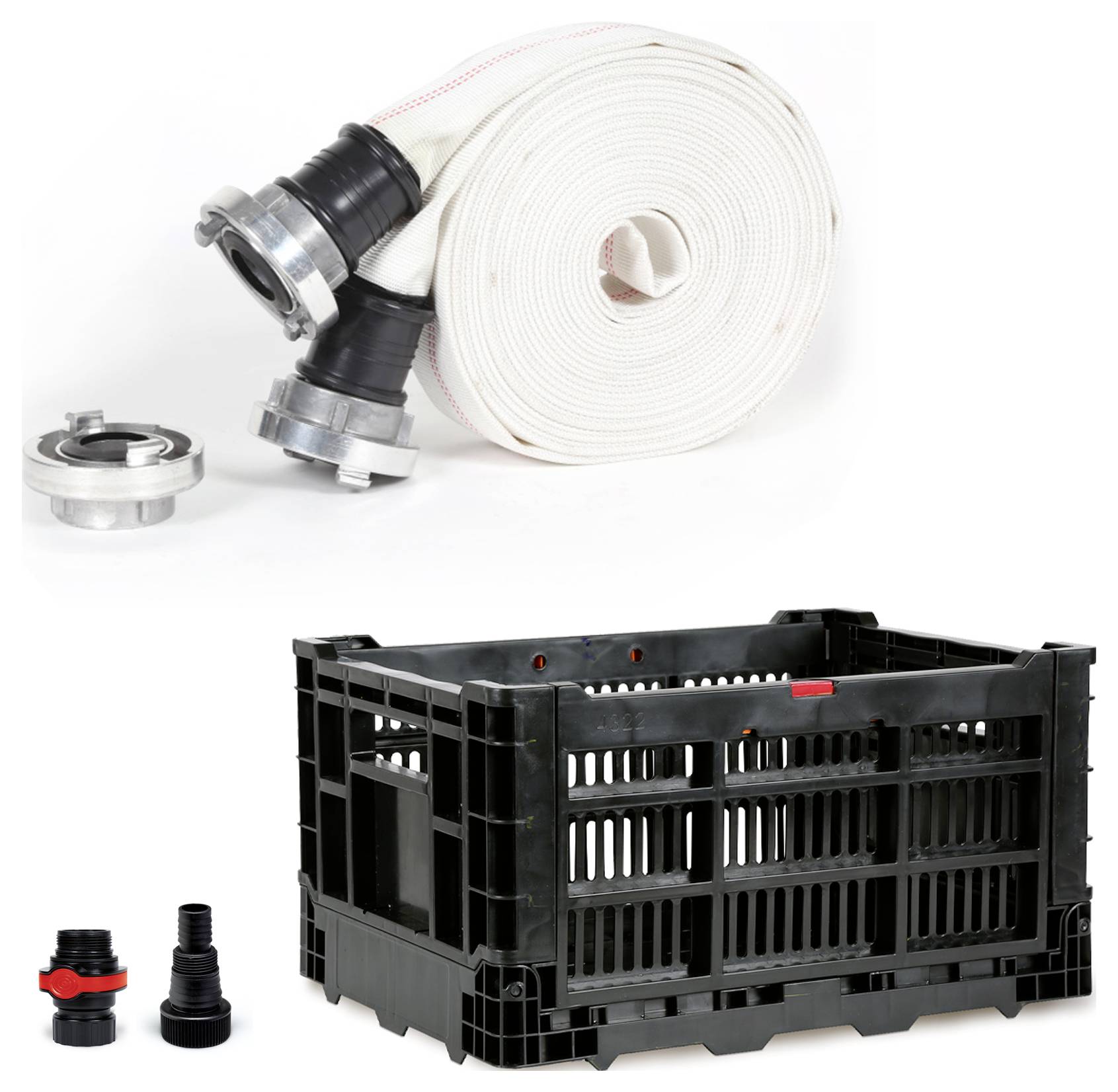

Scope of delivery

  • FLOODLIGHT SET GE-DP 7535 N LL ECO
  • Universal connector/adapter
  • Fabric tube
  • 3x quick coupling
  • Quick connector
  • Plastic box
  • User manual.
