TOOLCRAFT TO-9632052 Clean water submersible pump 8500 l/h 6 m
EAN:
Part number:
Item no:
405 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 25.20 / piece)
€
Highlights & Details

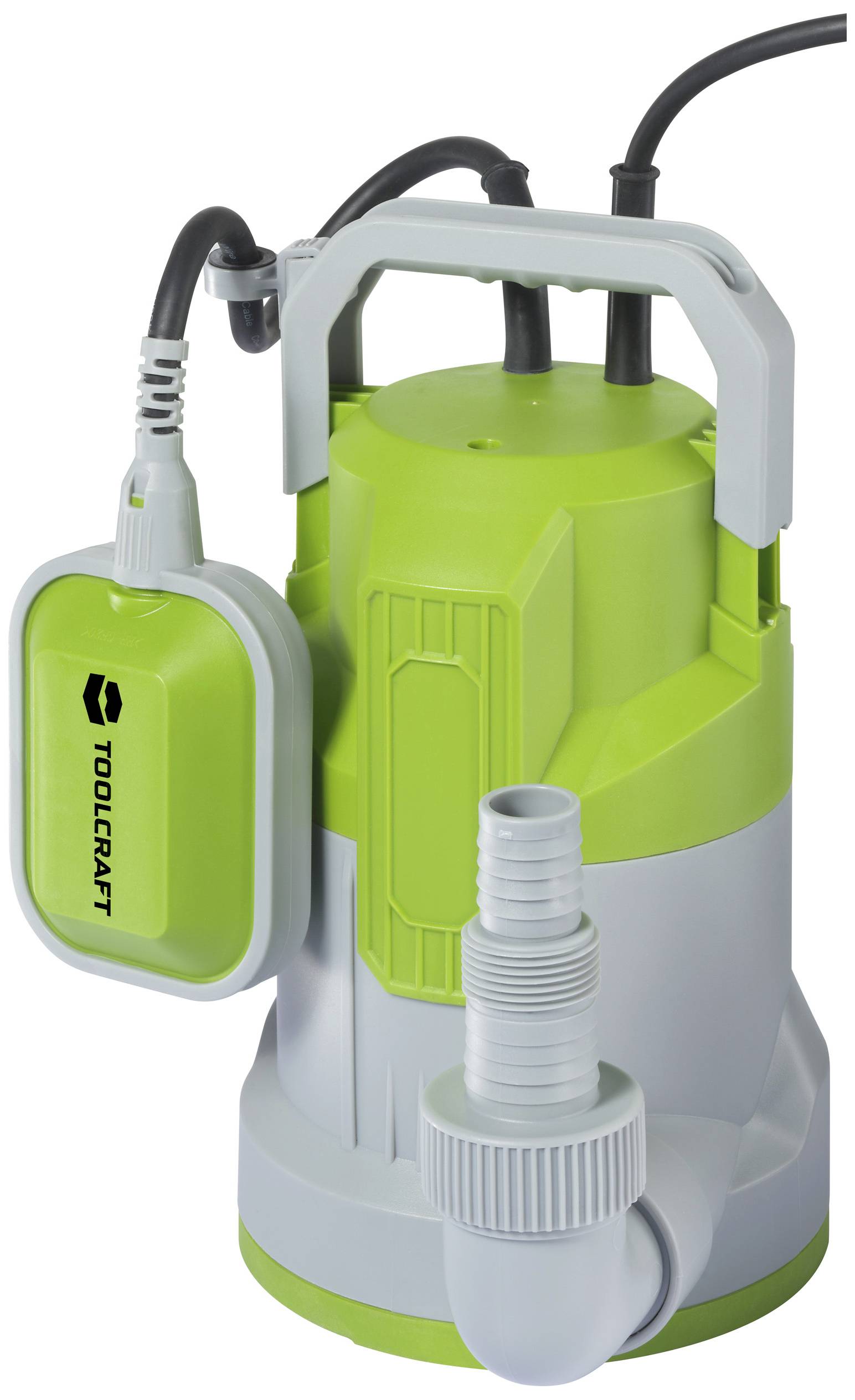

Toolcraft submersible pump for clean water, with floating switch, 250 W, 8500 l/h, IPX8, grey and green
- For clear fresh water
- Flow rate: max. 8500 l/h
- Delivery height: max. 6 m
- IPX8 waterproof
Technical specifications
- Overheat protection (135°C)
- Operating and storage temperature: 0-35°C
- Product type
Clean water submersible pump
- Max. delivery head
6 m
- Max. feed rate
8500 l/h
- Max. discharge pressure
0.6 bar
- Operating voltage
230 V AC
- Power consumption (P1)
250 W
- Pressure connection
25 mm (1") Ø
32 mm (1 1/4") Ø
- Max. size of solids
5 mm
- Immersion depth
7 m
- Max. cable length
10 m
- Float switch
Yes
- Length
162 mm
- Width
165 mm
- Height
258 mm
- Dim
(L x W x H) 162 x 165 x 258 mm
- Weight
3.8 kg
IPX8
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3210684 TOOLCRAFT TO-9632052 Clean water submersible pump 8500 l/h 6 m
Description
Drain off excess water
The clear water pump is intended for private use, e.g. in a hobby garden. The clear water pump is used, e.g., recirculate/drain containers (rain water cistern), water supply of suitable devices in the garden via a house well (ground water) or pumping off water, e.g. from a swimming pool. The submersible pump is waterproof according to IPX8 and can handle a maximum pump height of six meters.
Automatic activation when level increases
An adjustable float switch allows the pump to be activated at a preset water level: The pump starts working automatically from a water level of 5 mm and removes the water thanks to adjustable feet up to a water level of 1 mm.
Manual operation
Switching the submerged pump on and off is always possible even during operation: A floating switch which drives onto the surface of the water allows manual operation of the pump at any time. When the maximum operating temperature exceeds 135 degrees, the "TOOLCRAFT submersible pump for fresh water" switches off automatically. The device is delivered with hose adapter and instructions for use.
This text is machine translated.
The clear water pump is intended for private use, e.g. in a hobby garden. The clear water pump is used, e.g., recirculate/drain containers (rain water cistern), water supply of suitable devices in the garden via a house well (ground water) or pumping off water, e.g. from a swimming pool. The submersible pump is waterproof according to IPX8 and can handle a maximum pump height of six meters.
Automatic activation when level increases
An adjustable float switch allows the pump to be activated at a preset water level: The pump starts working automatically from a water level of 5 mm and removes the water thanks to adjustable feet up to a water level of 1 mm.
Manual operation
Switching the submerged pump on and off is always possible even during operation: A floating switch which drives onto the surface of the water allows manual operation of the pump at any time. When the maximum operating temperature exceeds 135 degrees, the "TOOLCRAFT submersible pump for fresh water" switches off automatically. The device is delivered with hose adapter and instructions for use.
This text is machine translated.
Features
- For clear fresh water
- Flat suction up to 1 mm residual water level
- Pump start possible from a low water level of 5 mm
- Adjustable floating switch
- Adjustable supporting feet for increasing the suction area
- Manual continuous operation possible by fixing float switch vertically on frame
- Flow rate: max. 8500 l/h
- Delivery height max. 6 m
- IPX8
- Overheat protection (135°C)
Scope of delivery
- 1x Submersible pump
- 1x Hose adapter
- 1x Manual
