Name: Emko EZM-7750.1.00.1.0/00.00/0.0.0.0 Preset counter
Brand: Emko
SKU: 2352352
Availability: BackOrder

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

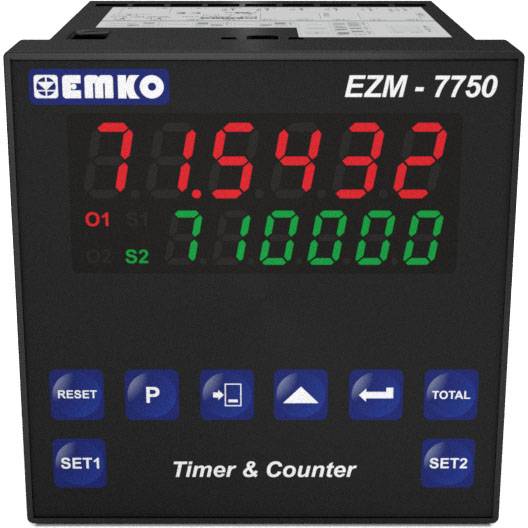

Emko EZM-7750.1.00.1.0/00.00/0.0.0.0 Preset counter-0

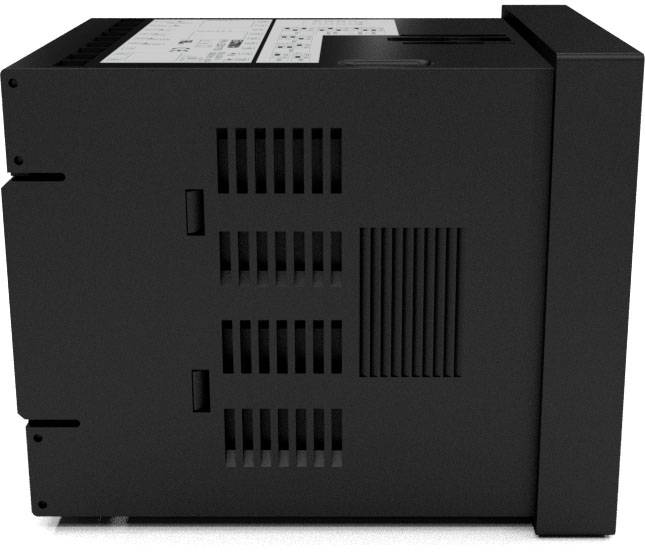

A black server with ventilation slots on the side. It appears to be a large, rectangular device, potentially for IT infrastructures.

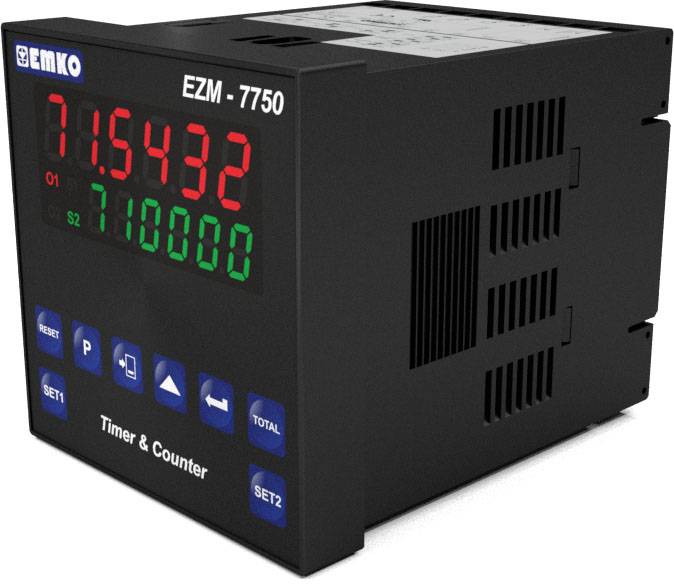

Digital industrial time and count meter, model 'EMKO EZM-7750', with red and green LED display for values.

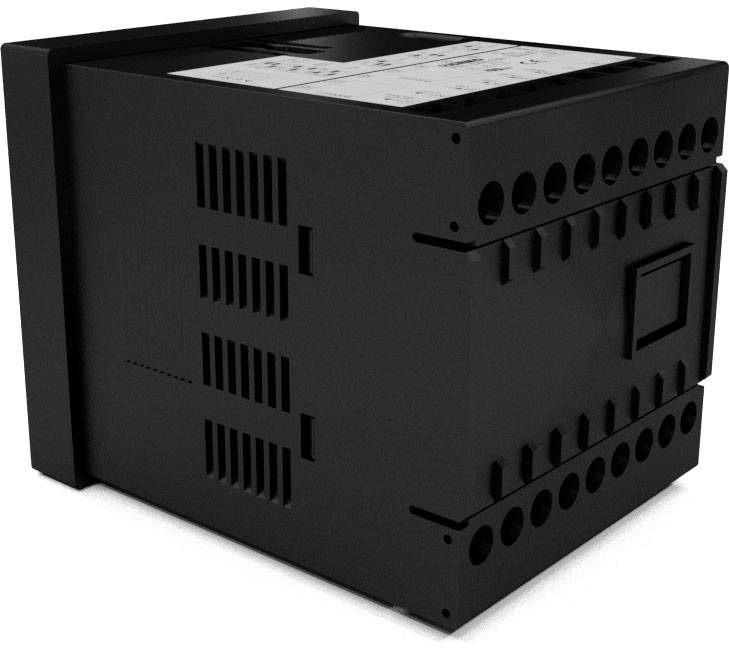

A black electrical relay module with multiple terminal connections. It has a rectangular housing with ventilation slots.

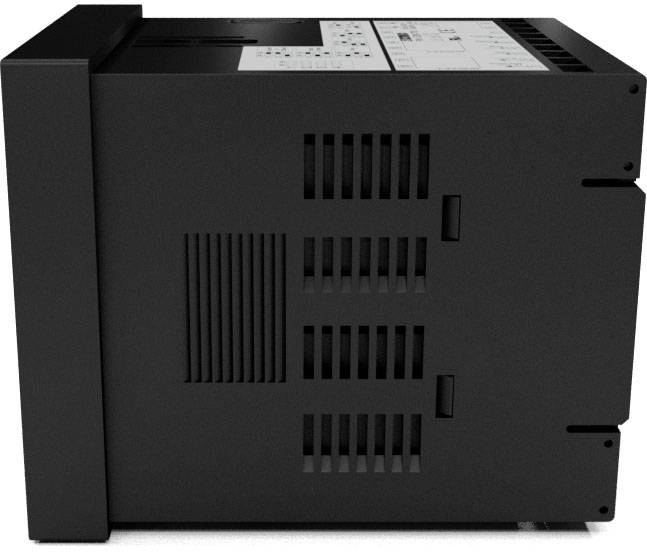

'Side view of a black electronic device with ventilation slots and a control panel on top.'

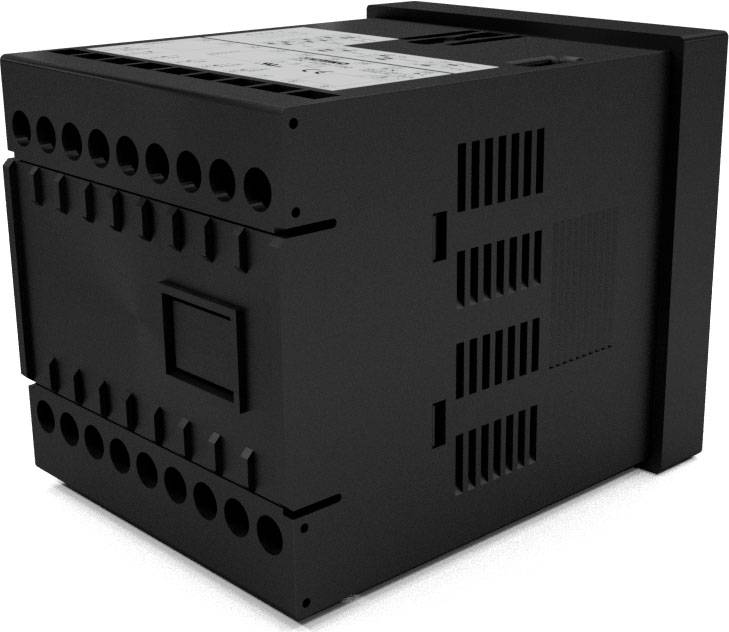

A black, rectangular electronic device with ventilation slots and ports on the sides, possibly a controller.

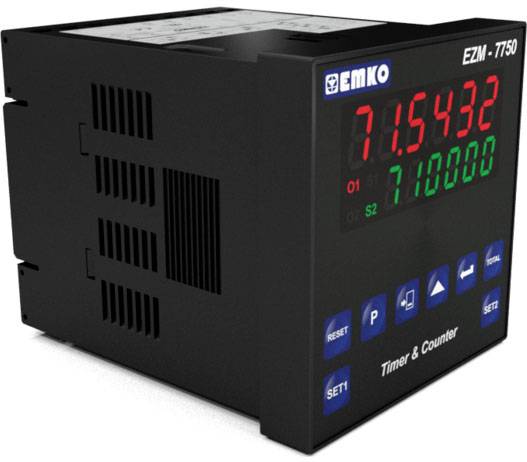

A digital device displaying '71.5432' in red and '710000' in green, surrounded by blue control buttons. The device shows timer and counter functions.

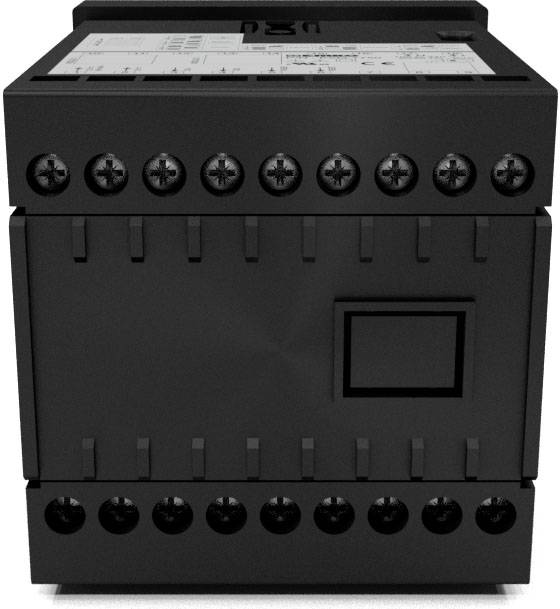

Black electric relay device with screw terminals on the front; rectangular shape with label on the top surface.

1/8

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko Preset counter

6-digit actual value display
6-digit setpoint display
2 preset values
Cha-CHB count input
Reset and pause input
NPN or PNP selectable
Adjustable on pre-selection counter/totalizing counter, batch counter, timer, chronometer, frequency meter/tachometer
Programmable time base for timer and chronometer (second, minute, hour)
Automatic or manual reset
INC,DEC,INC/INC,INC/DEC,UP/DOWN, x1 / x2 / x4 Phase shift count selection
Multiplication factor and selectable decimal point position
Various alarm functions for frequency measurement and cycle measurement functions
Total quantity and partial quantity recording for pre-selection counter/totalizing counter
Communication interface

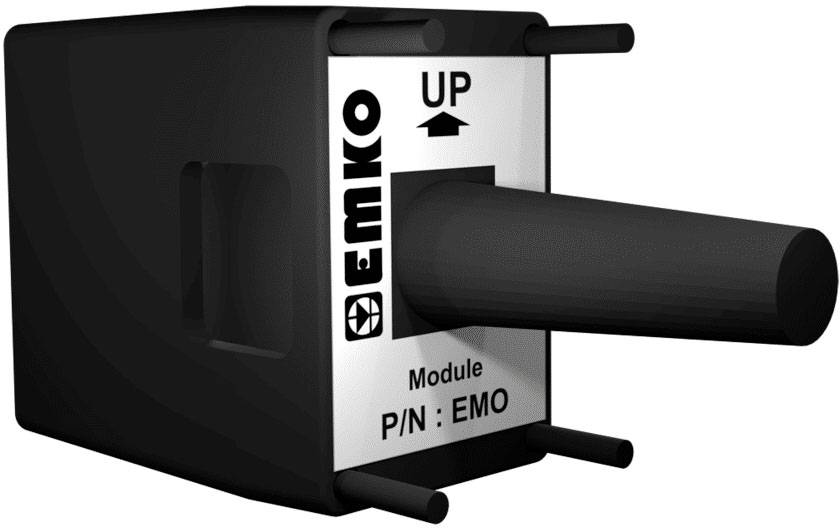

2 slots for EMO-700 series output expansion modules

Technical specifications

Product type: Preset counter

Reading type: Frequency
Speed
Pulse

Type: EZM-7750.1.00.1.0/00.00/0.0.0.0

Display technology: LED

: Front: IP65 / connection: IP20

Recess width: 72 mm

Display (counts): 999999

Recess height: 72 mm

Operating voltage: 115 V AC
230 V AC

Dim: (L x W x H) 88 x 72 x 72 mm

Weight: 250 g

Features: Reset function

Recess depth: 76 mm

Factory colour: Black

Width: 72 mm

Height: 72 mm

Length: 88 mm

Frame width: 72 mm

Frame height: 7.2 cm

Interfaces: 1 x RS 232 Modbus RTU

Documents & Downloads

Datasheet

Datasheet 2352352 Emko EZM-7750.1.00.1.0/00.00/0.0.0.0 Preset counter

User & Safety Instructions

User & Safety Instructions 2352352 Emko EZM-7750.1.00.1.0/00.00/0.0.0.0 Preset counter

Description

EZM-7750 is a timer and counter for packaging machines, production and quality control as well as for cutting and processing machines. The counter can be set to preset/totalizing counter, batch counter, timer, chronometer or frequency meter/tachometer. The counter can be easily adapted to mechanical and automation systems. In the basic version, the counter has a communication interface. The counter can be expanded with output modules via two slots. The EMO-700 output modules are available in relay output, SSR output and transistor output versions.

This text is machine translated.
