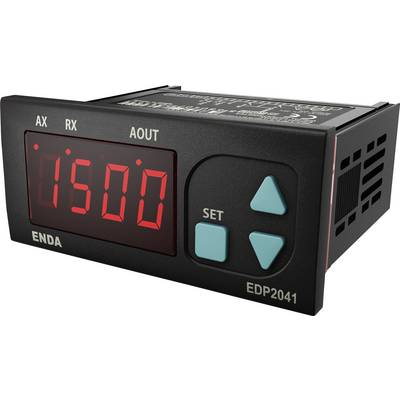

Enda EDP2041-SM Bang-bang Digital voltage divider -60 up to 150 °C Analogue current (L x W x H) 71 x 77 x 35 mm
EAN:
Part number:
Item no:
Product type
Digital voltage divider
Thermostat type
Bang-bang
Operating voltage
10 V DC
30 V DC
8 V AC
24 V AC
Max. temperature reading
150 °C
Outputs (thermostats)
Analogue current
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Technical specifications
- Voltage supply 10-30V DC / 8-24V AC
- Product type
Digital voltage divider
- Type
EDP2041-SM
- Thermostat type
Bang-bang
- Operating voltage
10 V DC
30 V DC
8 V AC
24 V AC
- Reading range
-60 up to 150 °C
- Max. temperature reading
150 °C
- Min. temperature reading
-60 °C
- Outputs (thermostats)
Analogue current
- No. of relay outputs
1
- Outputs
(250 V/AC/8 A)
- Dim
(L x W x H) 71 x 77 x 35 mm
- Height
35 mm
- Length
71 mm
- Width
77 mm
- Manufacturer part #
EDP2041-SM
- Recess depth
71 mm
- Mounting type
Panel-fit
- Sensor type
NTC-Sensor
Documents & Downloads
Datasheet
Datasheet 2452909 Enda EDP2041-SM Bang-bang Digital voltage divider -60 up to 150 °C Analogue current (L x W x H) 71 x 77 x 35 mm
User & Safety Instructions
User & Safety Instructions 2452909 Enda EDP2041-SM Bang-bang Digital voltage divider -60 up to 150 °C Analogue current (L x W x H) 71 x 77 x 35 mm
Description
Digitally adjustable "ON-OFF temperature regulator for heating or cooling applications. Parameters easily set using keys on front (limits, offset, etc.). The actual value is shown by a 4 digit, 7 segment display with sign (if less than 0 °C). The resolution is adjustable to 0.1 ° C or 1 ° C, while the accuracy is 1% of SB.
This text is machine translated.
This text is machine translated.
Features
- Dimensions 35x77mm
- 4-digit display
- Simple setting via front-side buttons
- RS-485 interface for synchronous operation of several
- Potentiometers (optional)
- External control for additional keys
- Display (scale) adjustable between -1999 and 9999
- Decimal point between 1 and 3. Decade adjustable
- Setpoints can be assigned for output signals 0-10V, 0-20mA and 4-20mA
- Adjustable rise/fall delay (soft on and 'soft off') of the output signal
- Parameter protection against unauthorized adjustment
- This text is machine translated.
Scope of delivery
- NTC sensor (Ø x L: 6 x 40 mm) incl 1.5 m long connection cable.
Hints
Additional function ET1412: different alarm types (loop, deviation, band alarm) can be set
