Buy TRU COMPONENTS TK4S-14RC PID Temperature controller K, J, E, T, B, R, S, N, C, L, U, PL-II -199.9 up to 999.9 °C SSR, 3

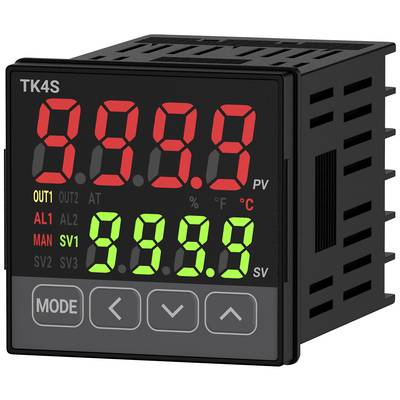

Digital temperature and process control device with LED display. Shows current and set values in red and green. Control buttons at the bottom.

Industrial mixing machine with stainless steel container and control panel. Used in production environments for processing mixtures.

'Illustration of a production machine with electrical components and wiring. Shows electrical switchboards and connection lines.'

1/3

Product type

Temperature controller

Thermostat type

PID

Operating voltage

100 V AC

240 V AC

Max. temperature reading

999.9 °C

Outputs (thermostats)

SSR

3 A relay

Fast track dispatch on Wed, 16 Sep

30 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Highlights & Details

Temperature Controller TK4S-14RC

Display: 4-digit 7-segment LED
Control: ON/OFF, P, PI, PD, PID
Input specifications: Thermocouple, RTD, Analog
Control output 1: 3 A Relay or SSR
Power supply: 100-240VAC, 50/60Hz

Our service for you

Technical specifications

Product type: Temperature controller

Type: TK4S-14RC

Thermostat type: PID

Operating voltage: 100 V AC
240 V AC

Reading range: -199.9 up to 999.9 °C

Max. temperature reading: 999.9 °C

Min. temperature reading: -199.9 °C

Outputs (thermostats): SSR
3 A relay

No. of relay outputs: 1

Dim: (L x W x H) 70.5 x 48 x 48 mm

Height: 48 mm

Length: 70.5 mm

Width: 48 mm

Sensor type: K
J
E
T
B
R
S
N
C
L
U
PL-II
Show more

Manufacturer part #: TC-12064576

Sensor type: RTD (JPt100Ω, DPt100Ω, DPt50Ω Cu100Ω, Cu50Ω, Nikel 120Ω), TC (K, J, E, T, L, N, U, R, S, B, C, G, PL II), Analog (Voltage: 0-100 mV, 0-5 V, 1-5 V, and 0-10 V, Current: 0-20 mA, 4-20 mA)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3016144 TRU COMPONENTS TK4S-14RC PID Temperature controller K, J, E, T, B, R, S, N, C, L, U, PL-II -199.9 up to 999.9 °C SSR, 3

Description

Keeping the required temperature at a constant level is of great relevance for numerous applications: Refrigerators or freezers, such as supermarkets or large kitchens, require perfect temperature management to keep the stored goods fresh for a long time.

This text is machine translated.

Features

Input specifications: Thermocouple (K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II), RTD (DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω), Analog ((voltage (0-100mV, 0-5V, 1-5V, 0-10V), current (0-20mA, 4-20mA))
Sampling cycle: 50ms
