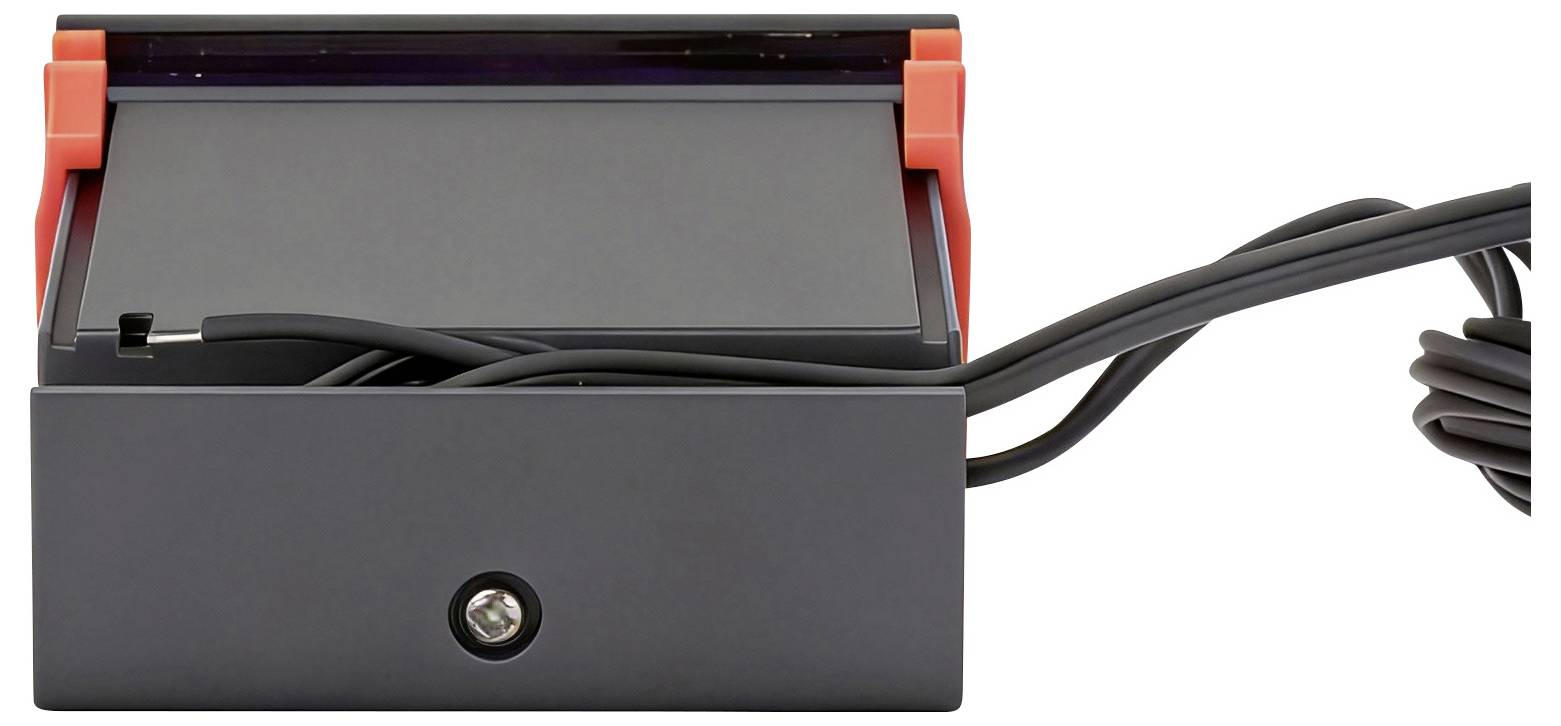

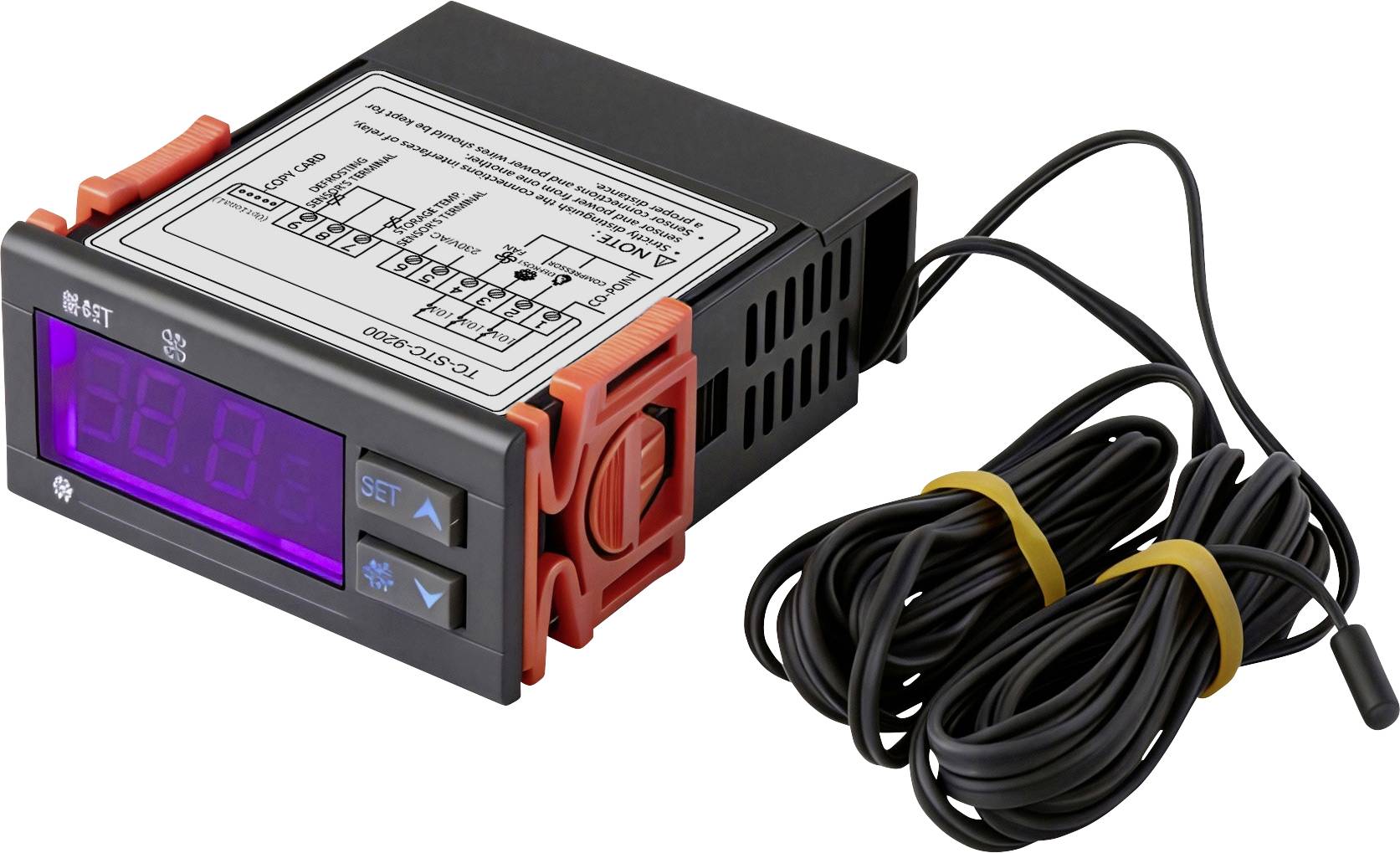

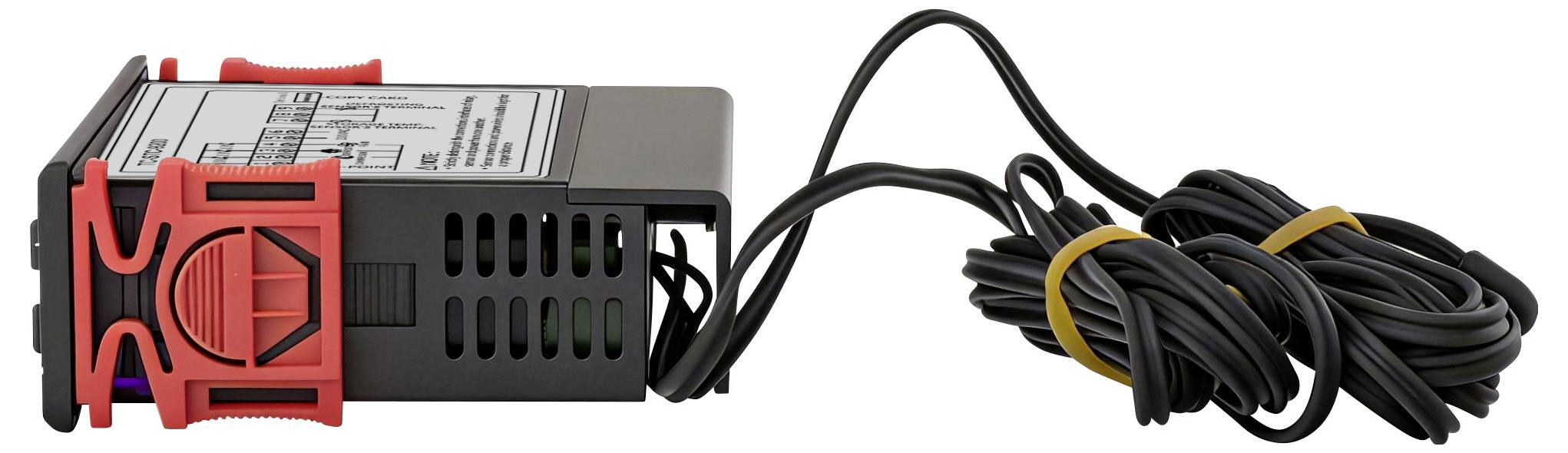

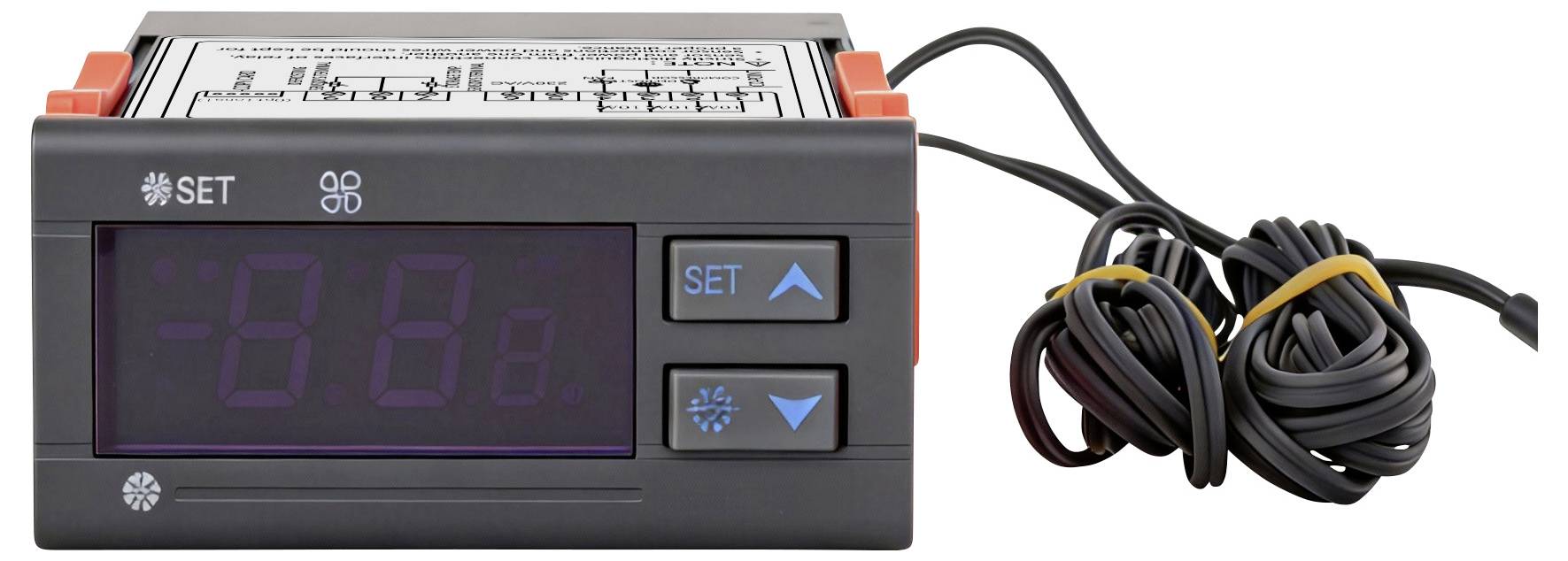

TRU COMPONENTS TC-STC-9200 Temperature controller NTC -50 up to 50 °C 10 A relay (L x W x H) 75 x 85 x 34.5 mm
EAN:
Part number:
Item no:
Product type
Temperature controller
Operating voltage
230 V AC
Max. temperature reading
50 °C
Outputs (thermostats)
10 A relay
No. of relay outputs
1
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
Temperature controller, 2xNTC sensor, 2 m cable
- Cooling, defrost, and fan operating modes
- Precise temperature control ranging from -50 to +50 °C
- Audible and visual alarms for over-temperature and sensor failure
- Includes 2x NTC sensors with a 2 m cord length
- Power supply: 230 V AC, 50 Hz
Our service for you
Technical specifications
- Product type
Temperature controller
- Type
TC-STC-9200
- Operating voltage
230 V AC
- Reading range
-50 up to 50 °C
- Max. temperature reading
50 °C
- Min. temperature reading
-50 °C
- Outputs (thermostats)
10 A relay
- No. of relay outputs
1
- Dim
(L x W x H) 75 x 85 x 34.5 mm
- Height
34.5 mm
- Length
75 mm
- Width
85 mm
- Sensor type
NTC
- Manufacturer part #
TC-14124720
- Recess depth
85 mm
- Mounting type
Recess-mount
- Assembly dimensions
71x29 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3531180 TRU COMPONENTS TC-STC-9200 Temperature controller NTC -50 up to 50 °C 10 A relay (L x W x H) 75 x 85 x 34.5 mm
