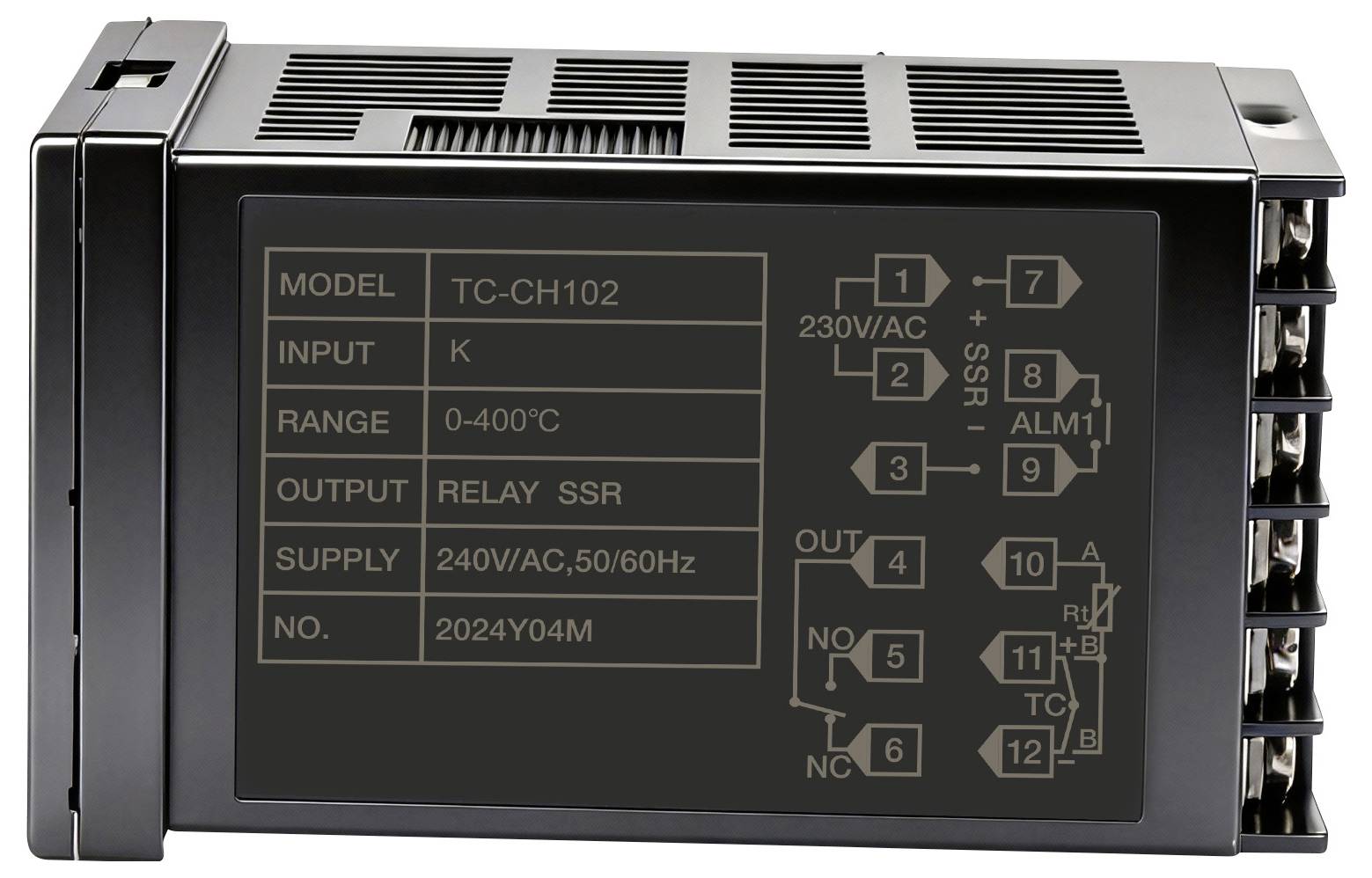

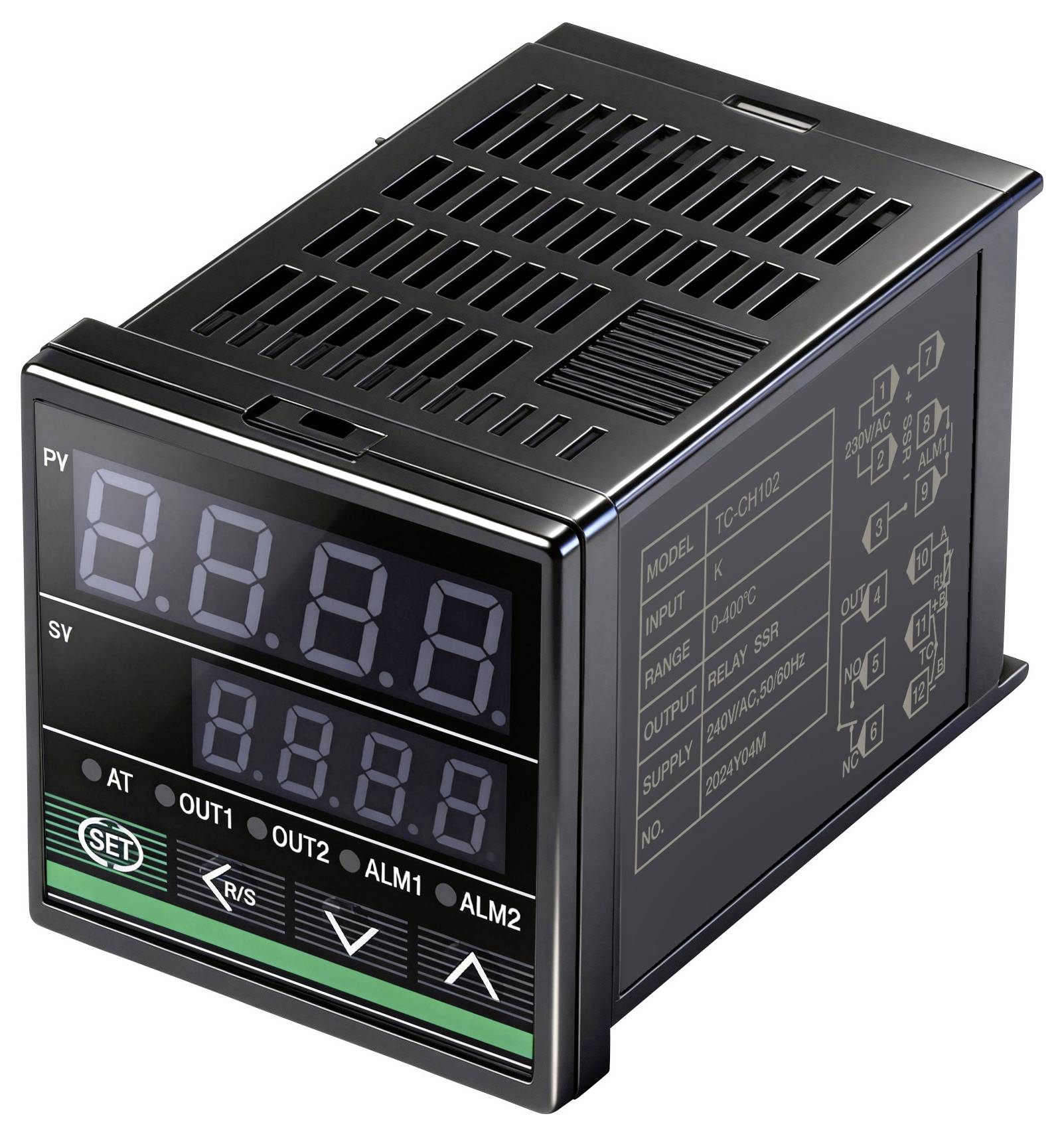

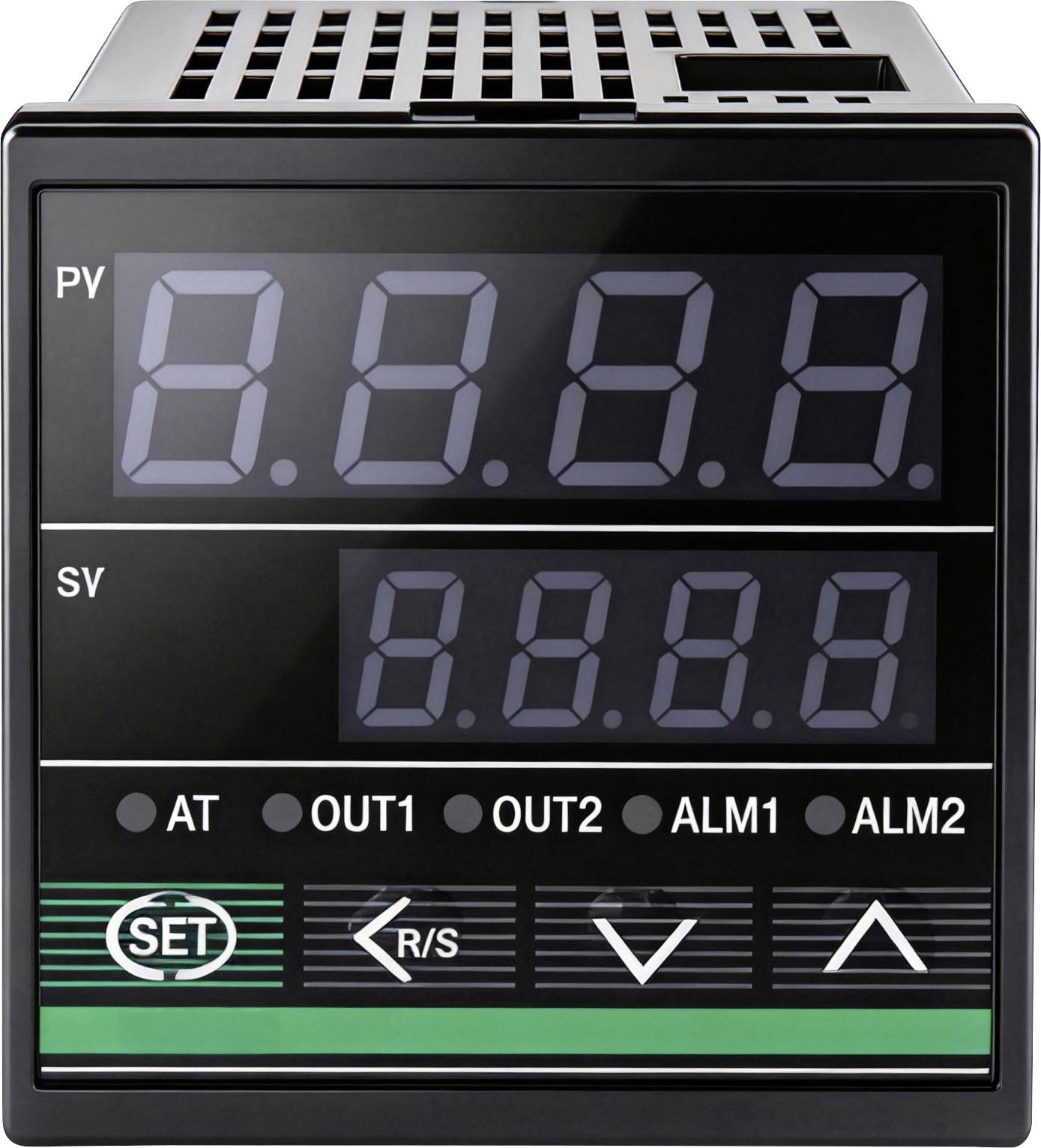

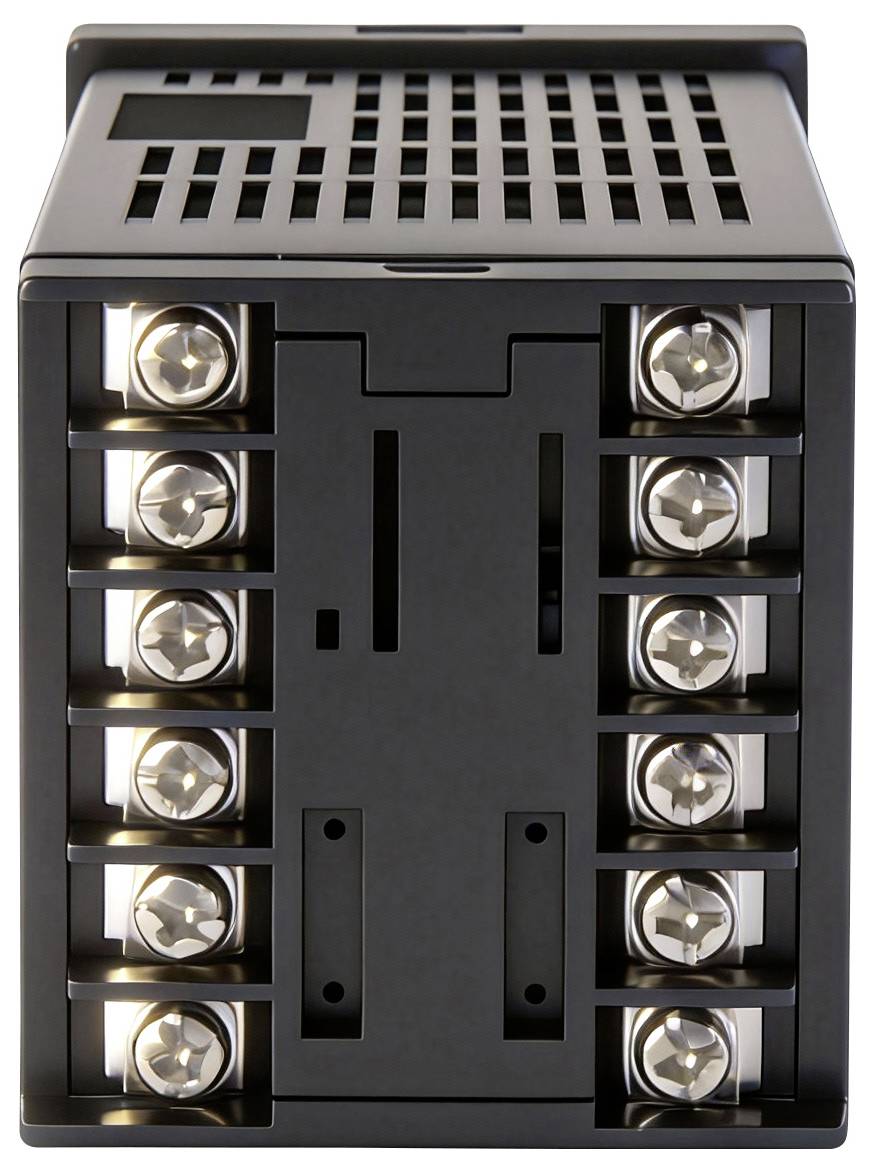

TRU COMPONENTS TC-CH102 PID Temperature controller B, E, J, K, N, R, S, T, Pt100 -200 up to 1820 °C SSR, Analogue curren
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
PID
Operating voltage
230 V AC
Max. temperature reading
1820 °C
Outputs (thermostats)
SSR
Analogue current
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
PID temperature controller 48x48 mm, thermocouple K, E, J, S, R, B, N, T, Cu50, Pt100, Out: SSR, 4-20 mA
- Supports heating and cooling modes
- Compact dimensions: 48 mm x 48 mm x 82 mm
- Wide temperature control range: -200 °C to 1820 °C
- Integrated over-temperature alarm
- Compatible with multiple sensor types: B, E, J, K, N, R, S, T, Pt100, Cu50
- Output options: SSR, Analogue 4-20 mA
- Power supply: 230 V AC, 50/60 Hz
Our service for you
Technical specifications
- Product type
Temperature controller
- Type
TC-CH102
- Thermostat type
PID
- Operating voltage
230 V AC
- Reading range
-200 up to 1820 °C
- Max. temperature reading
1820 °C
- Min. temperature reading
-200 °C
- Outputs (thermostats)
SSR
Analogue current
- Dim
(L x W x H) 82 x 48 x 48 mm
- Height
48 mm
- Length
82 mm
- Width
48 mm
- Sensor type
B
E
J
K
N
R
S
T
Pt100
- Manufacturer part #
TC-14124732
- Recess depth
82 mm
- Mounting type
Recess-mount
- Assembly dimensions
45x45 mm
- Plastic free packaging
Plastic-free packaging
