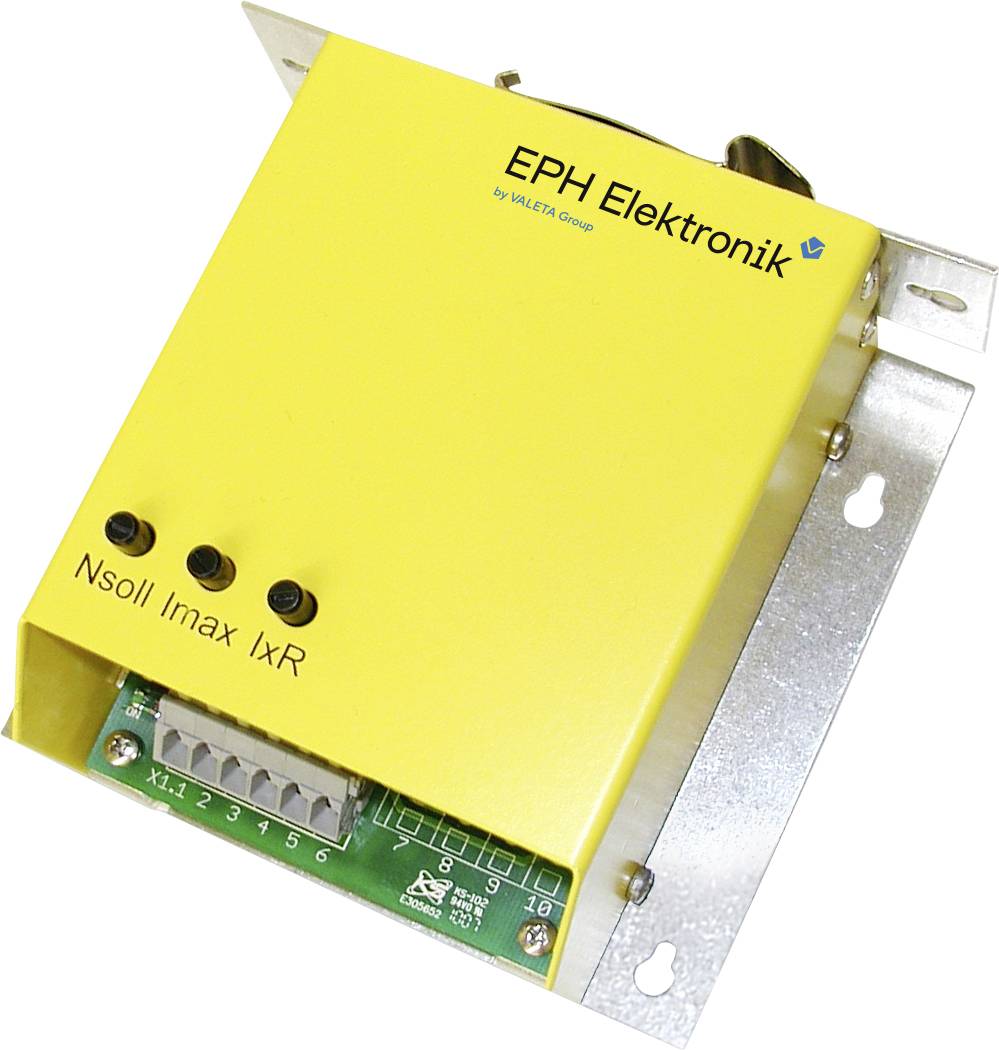

EPH Elektronik DLS 24/20/G Speed controller 20 A 24 V DC
EAN:
Part number:
Item no:
Output voltage (max.)
24 V DC
Max. rotor current
20 A
Product type
Speed controller
Type
DLS 24/20/G
Nominal voltage
24 V DC
Number
Total (€ 180.66 / piece)
€ 197.48
-9 %
€ 180.66
plus VAT.
Only 8 Piece(s) available
Highlights & Details
EPH Elektronik DLS 24/20/G Speed controller 20 A 24 V DC
- Load-independent digital 1-quadrant transistor DC controllers
Technical specifications
- PWM-MOSFET amplifier
- Type
DLS 24/20/G
- Nominal voltage
24 V DC
- Output voltage (max.)
24 V DC
- Max. rotor current
20 A
- Type
With enclosure
- Dim
(L x W x H) 124 x 120 x 52 mm
- Length
124 mm
- Width
120 mm
- Manufacturer part #
460A.20.0/3130
- Height
52 mm
- Output voltage
(Can be preselected using jumpers) max. 12 V/DC max. 24 V DC
- Type
Im Gehäuse
- Operating voltage
10 - 36 V DC
- Product type
Speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 198584 EPH Elektronik DLS 24/20/G Speed controller 20 A 24 V DC
Description
Digital transistor DC regulator, not dependent on load. The nominal speed can be specified using potentiometers (10kΩ) or an external voltage 0 - 5 V/DC or 0 - 10 V/DC (can be preselected using jumpers). Current limitation is set using potentiometers. Armature voltage feedback EMF with I x R compensation.
