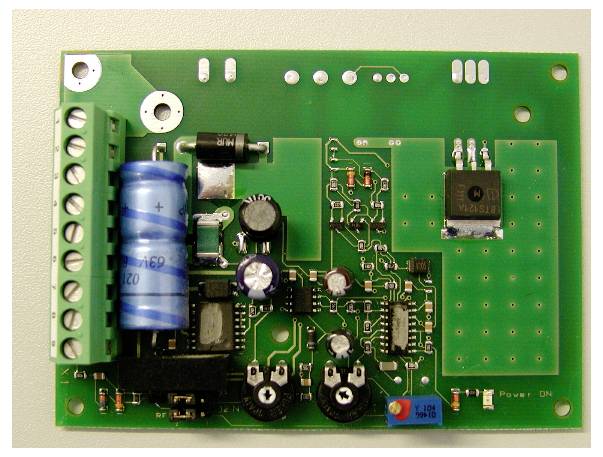

EPH Elektronik GS24S/03/P DC speed controller 3 A 24 V DC
EAN:
Part number:
Item no:
Output voltage (max.)
32 V DC
Max. rotor current
3 A
Product type
DC speed controller
Type
GS24S/03/P
Nominal voltage
24 V DC
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Only 5 Piece(s) available
Highlights & Details
EPH Elektronik GS24S/03/P DC speed controller 3 A 24 V DC
- Load-dependent 1-quadrant Rotation speed controller
Technical specifications
- Type
GS24S/03/P
- Nominal voltage
24 V DC
- Output voltage (max.)
32 V DC
- Max. rotor current
3 A
- Type
PCB mount
- Dim
(L x W x H) 25 x 100 x 72 mm
- Length
25 mm
- Width
100 mm
- Manufacturer part #
360B.03.2/2220
- Height
72 mm
- Output voltage
0 - 32 V
- Type
Platinenausführung
- Operating voltage
12 - 36 V DC
- Product type
DC speed controller
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 129209 EPH Elektronik GS24S/03/P DC speed controller 3 A 24 V DC
Description
Features
- Load dependent transistor actuator
- Current limiting adjustable by potentiometer
- Internal/external setpoint can be preselected (jumper)
- PWM MOSFET output stage.
Hints
Board without heat sink.
