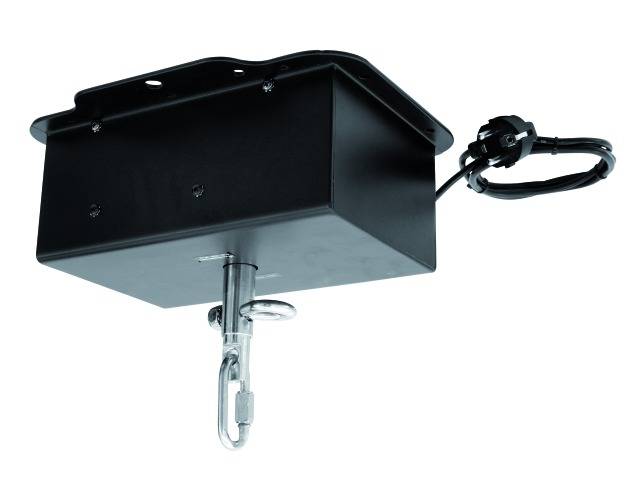

Buy Eurolite MD-3010 Mirror ball motor

Black motor lift with hook and cable, suitable for raising or lowering lighting fixtures.

Black metal suspension hook for mounting devices on ceiling structures.

Metallic mechanical assembly with an axle, screws and cables housed within an enclosure, likely part of a technical or industrial machine.

Black, rectangular mechanical device with metal connection on top and cable connection on the right.

Black metal casing with a loop and closure mechanism, likely used for attaching or securing items.

1/5

Dispatches on Wed, 16 Sep

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Highlights & Details

Eurolite MD-3010 safety rotary motor

Mirror ball motor for balls up to 100 cm

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connected wattage 7 W
Max. Load WLL (4-fold): 120 kg
Max. Load BGV C1 (8-fold): 60 kg
Max. Load BGV C1 (10-fold): 50 kg
Max. Load BGV C1 (12-fold): 40 kg
Max. Mirror ball diameter 100 cm (EUROLITE)
Rotation speed: Approx. 1 rpm
Dimensions (LxWxH) 280 x 240 x 110 mm
Weight: 5 kg.

Rotational speed: 1 U/min

Weight: 5.9 kg

: n.rel.

UKCA: yes

Product type: Mirror ball motor

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 592133 Eurolite MD-3010 Mirror ball motor

Information

Information 592133 Eurolite MD-3010 Mirror ball motor

Description

Mirror ball motor for balls up to 100 cm · For driving mirror balls up to a max. total weight of 40 kg · This corresponds to a diameter of 100 cm for EUROLITE mirror balls · The maximum load capacity always refers to the actual weight of the mirror ball including mirror ball chain, safety chain and fixing material · 2 chains and 4 quick connectors must be ordered separately · 1 revolution per minute · For professional use, e.g. in discotheques and meeting places, the regulations of the BGV C1 (formerly VBG 70) must be observed · The engine must always be installed with a second independant suspension · The device must be checked by an expert before it is put into operation for the first time

This text is machine translated.
