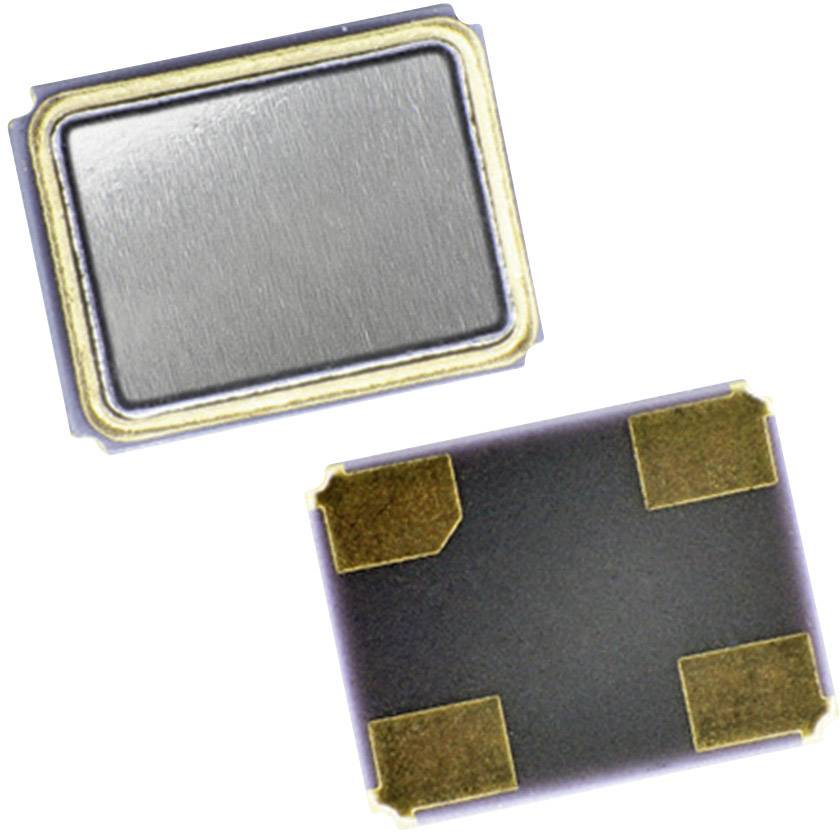

EuroQuartz 20.000MHz XO22050UITA Crystal oscillator SMD HCMOS 20.000 MHz 2.5 mm 2 mm 0.95 mm Tape cut 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tape cut
Product type
Crystal oscillator
Enclosure
SMD
Nominal frequency
20.000 MHz
Max. operating voltage
3.465 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 2.09
30
8% = € 0.16
€ 1.93
50
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 2.09 / piece)
€ 20.90
plus VAT.
14-day return policy included
Highlights & Details
Crystal oscillator
Our service for you
Technical specifications
- Packaging type
Tape cut
- Type
20.000MHz XO22050UITA
- Product type
Crystal oscillator
- Enclosure
SMD
- Dim
(L x W x H) 2.5 x 2 x 0.95 mm
- Manufacturer
EuroQuartz
- Nominal frequency
20.000 MHz
- Min. operating voltage
3.135 V
- Max. operating voltage
3.465 V
- Slew rate
10 ns
- Fall time
10 ns
- Frequency stability
-50 ppm
+50 ppm
- Fan-out
15 pF
- Output signal
HCMOS
- Width
2 mm
- Height
0.95 mm
- Length
2.5 mm
- Output voltage (high)
2.97 V
- Output voltage (low)
0.33 V
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
- Symmetry
40/60 %
- Frequency
20,000 MHz
