Extech EN510 Anemometer 0.4 up to 20 m/s Thermometer
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 269.00 / piece)
€ 269.00
incl. VAT
Only 2 Piece(s) available
Technical specifications
- Measurement range of relative air humidity: 10 - 95% RH
- Illuminance reading range: 0 - 20000 Lux
- Measurement range contact temperature (K type): -50 to +1300 °C
- Wind speed resolution
0.1 m/s
- Product type
Anemometer
- Temperature reading range
0 up to +50 °C
- Air flow rate
0.024 m³/min
36000 m³/min
- Automatic temperature compensation
No
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 58 x 25 x 153 mm
- Features
Thermometer
- Accuracy
0.4 RH
1.2 °C
- Weight
160 g
- Temperature reading range (max.)
+50 °C
- Temperature reading range (min.)
0 °C
- Air speed reading range (max.)
20 m/s
- Air speed reading range (min.)
0.4 m/s
- Width
25 mm
- Height
153 mm
- Length
58 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1603578 Extech EN510 Anemometer 0.4 up to 20 m/s Thermometer
User & Safety Instructions
User & Safety Instructions 1603578 Extech EN510 Anemometer 0.4 up to 20 m/s Thermometer
Description

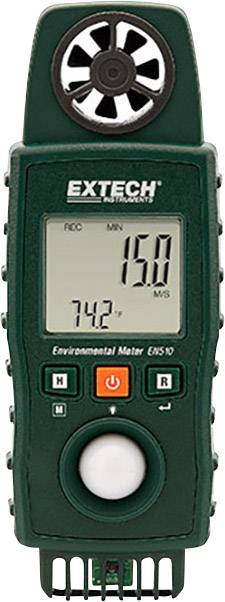

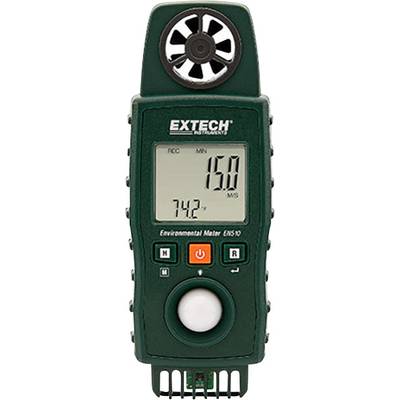

The EN510 measures the air speed and air temperature, air flow (volume), light, relative air humidity in percent with air temperature, dew point temperature, damp temperature, type K temperature (external probe), heat index temperature and temperature sensing. The LCD-display with background lighting offers a primary and a secondary display as well as a number of intuitive status indicators.
This text is machine translated.
This text is machine translated.
Features
- Professional environmental measurement device with programming menu for user adjustment
- Selectable units
- Measurement of air speed and air temperature
- Measurement of the air flow (volume) in the Units of Measure CFM (ft3) and CMM (m3)
- Light measurement in the Units of Measure Foot candle and Lux.
- Ambient measurements: relative air humidity in percent with air temperature, dew point temperature, damp temperature, sensed temperature, heat index, temperature and type K temperature (when connecting an external probe)
- Impeller to ball bearing with low friction for high-precision measurement low air speeds
- Integrated barometric altimeter sensor for precise atmospheres and high monitoring
- MAX-MIN recording
- Press and hold the display stops displaying measurement for easier reading
- Compact, lightweight, easy-to-use, ergonomic design with neck strap
- LCD display with backlight changes orientation automatically in adaptation to selected sensor mode
- Tripod socket
Scope of delivery
- Wrist strap
- Batteries
- User manual.
