Fanox Monitoring relay 24 V DC, 24 V AC 1 change-over 1 pc(s) T2-24 VAC/DC Temperature
EAN:
Part number:
Item no:
Product type
Monitoring relay
Functions
Temperature
Contact type
1 change-over
Type
T2-24 VAC/DC
Operating voltage
24 V DC
24 V AC
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Switching threshold: (upper) +40 to +55 °C / (lower) -5-+5 °C
- Product type
Monitoring relay
- Type
T2-24 VAC/DC
- Functions
Temperature
- Operating voltage
24 V DC
24 V AC
- Contact type
1 change-over
- Contact material
AgSnO2
- Max. switching capacity
120 W
1250 VA
- Content
1 pc(s)
Documents & Downloads
Information
Information 515876 Fanox Monitoring relay 24 V DC, 24 V AC 1 change-over 1 pc(s) T2-24 VAC/DC Temperature
Description

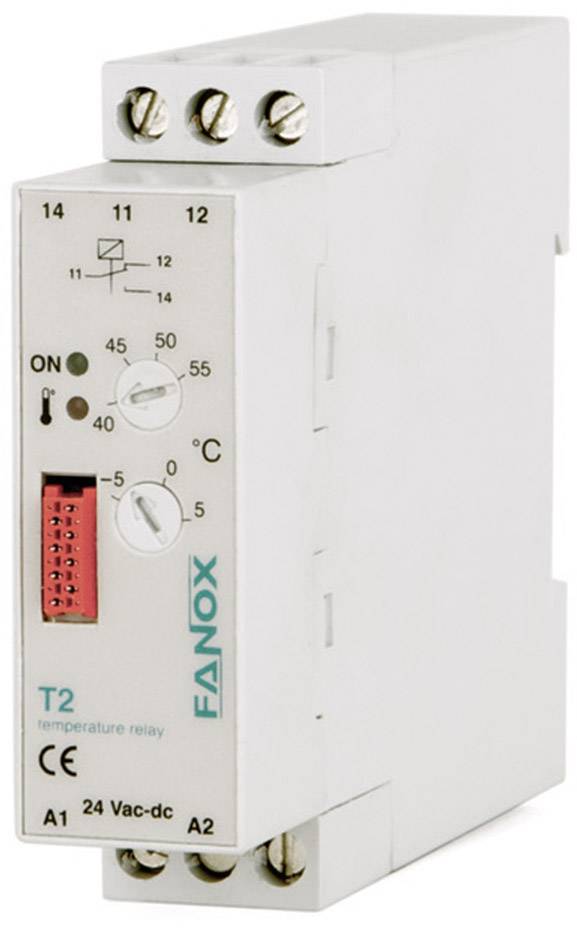

The Temperature relay T2 is a thermostat for temperature monitoring with an external NTC sensor. This monitoring relay is mainly used for measuring the ambient temperature of control systems, control cabinets as well as electric motors of elevators or other applications. The sensor is inserted on the front of the housing.
It is possible to set two different sensors can be used: Sensor in order no. 51 58 77-T in the connector and sensor OD-T in the housing with 2 m connection cable, order no. 51 58 78.
This text is machine translated.
It is possible to set two different sensors can be used: Sensor in order no. 51 58 77-T in the connector and sensor OD-T in the housing with 2 m connection cable, order no. 51 58 78.
This text is machine translated.
Hints
The relay is supplied without sensor. Please order separately.
