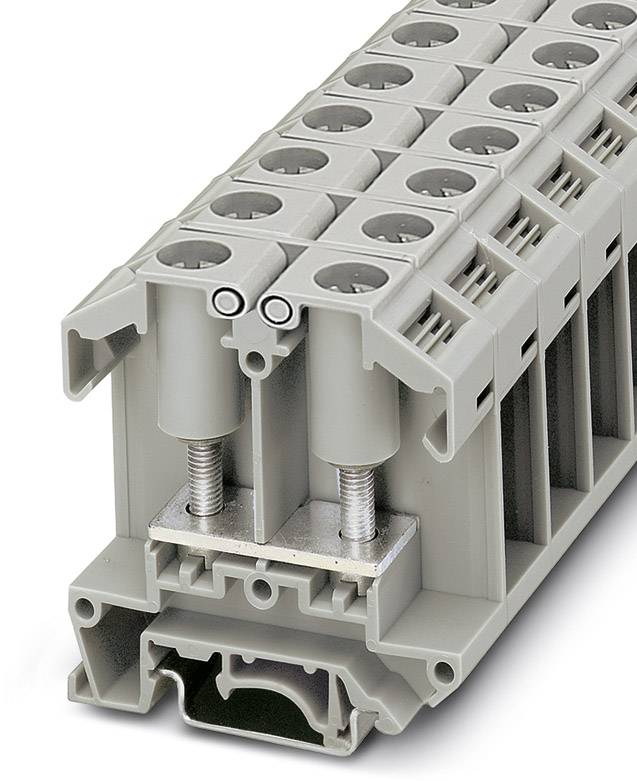

Feed-through terminal block OTTA 25-M5 0790488 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Bolt fixings
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 10.17 / piece)
€ 508.40
plus VAT.
14-day return policy included
Highlights & Details
Feed-through terminal block OTTA 25-M5
- OTTA 25-M5
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Bolt fixings
- Cross section (flexible) (min.)
0.1 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
0.1 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
27
- AWG max.
4
- Clamp width
18 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
800 V
- Manufacturer part #
0790488
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
OTTA 25-M5
- Dim
(L x W x H) 60 x 18 x 64.5 mm
- Width
18 mm
- Height
64.5 mm
- Length
60 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718595 Feed-through terminal block OTTA 25-M5 0790488 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718595 Feed-through terminal block OTTA 25-M5 0790488 Phoenix Contact
Description
Universal terminal block with bolt connection, cross section: 0.1 - 25 mm², width: 18 mm, color: gray
