FESTO 4832170 DPDM-10-5-P-PA Compact cylinder Stroke length: 5 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 67.99 / piece)
€ 67.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

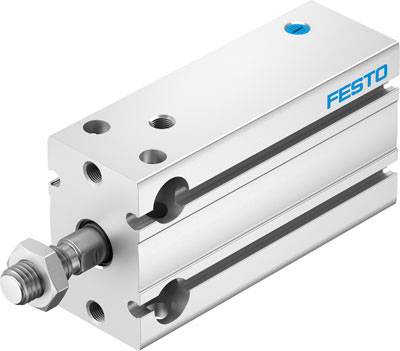

Compact cylinder DPDM-10-5-P-PA
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
5 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
4832170
- Type
Compact cylinder DPDM-10-5-P-PA hub = 5 mm, piston diameter = 10 mm, attenuation=P: elastic damping rings/plates on both sides, mounting position=any, mode of operation = (*) * single-acting, pulling
- Size
10
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston rod material
Steel (stainless)
- Piston rod diameter
10 mm
- Force (max.)
31 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1940038 FESTO 4832170 DPDM-10-5-P-PA Compact cylinder Stroke length: 5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940038 FESTO 4832170 DPDM-10-5-P-PA Compact cylinder Stroke length: 5 mm 1 pc(s)
