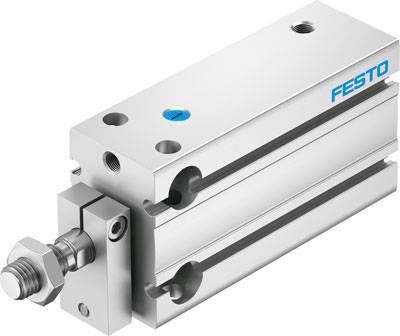

FESTO 4840822 DPDM-Q-20-10-S-PA Compact cylinder Stroke length: 10 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 104.99 / piece)
€ 104.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Compact cylinder DPDM-Q-20-10-S-PA
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
10 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
4840822
- Type
Compact cylinder DPDM-Q-20-10-S-PA hub = 10 mm, piston diameter = 20 mm, attenuation=P: elastic damping rings/plates on both sides, mounting position=any, mode of operation = (* single-acting, * repelling)
- Size
20
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston rod material
Steel (stainless)
- Piston rod diameter
20 mm
- Force (max.)
160 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1940104 FESTO 4840822 DPDM-Q-20-10-S-PA Compact cylinder Stroke length: 10 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940104 FESTO 4840822 DPDM-Q-20-10-S-PA Compact cylinder Stroke length: 10 mm 1 pc(s)
