FESTO 531117 MSB4-1/4-FRC5:J1M1 Maintenance module 1/4" Compressed air, Inert gas Max. operating pressure 14 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 3 Piece(s) available
Highlights & Details

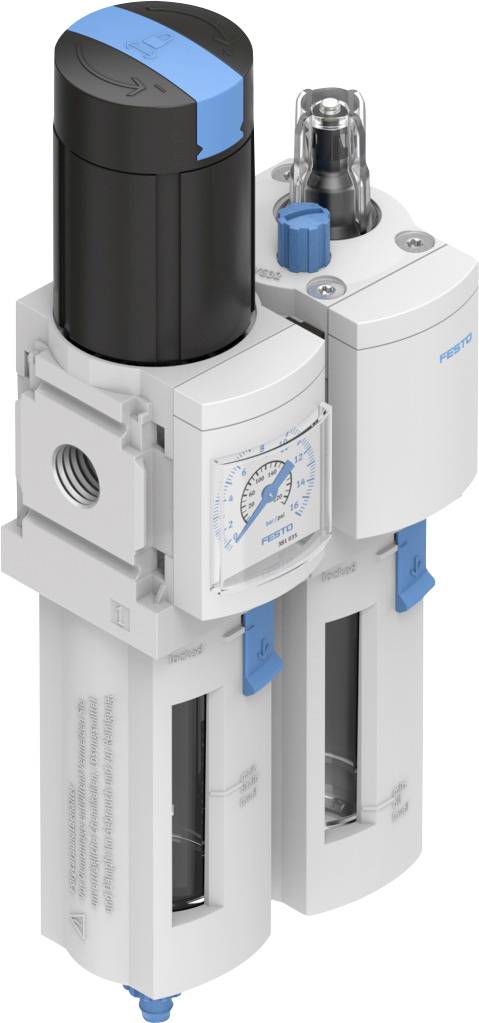

Maintenance module MSB4-1/4-FRC5:J1M1
- Operating pressure: 1.5... 14 bar
- Pressure control range: 0.5 ... 12 bar
- Normal nominal flow rate: 900 l/min
- Actuating protection: rotary knob with integrated lock
- This text is machine translated.
Technical specifications
- Product type
Maintenance module
- Type
MSB4-1/4-FRC5:J1M1
- Min. operating pressure
1.5 bar
- Max. operating pressure
14 bar
- Max. operating pressure
14 bar
- Operating medium
Compressed air
Inert gas
- Device temperature (max.)
+60 °C
- Min. device temperature
-10 °C
- Internal thread
1/4"
- Manufacturer part #
531117
- Material (details)
Die-cast aluminum, PC
- Operating medium
Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:
- Filter pore size
40 µm
- Control range
0.5 bar-12 bar
- Max. flow
900 l/min
- Connection
G 1/ 4
- Weight
500 g
- Size
4
Documents & Downloads
Datasheet
Datasheet 1893594 FESTO 531117 MSB4-1/4-FRC5:J1M1 Maintenance module 1/4" Compressed air, Inert gas Max. operating pressure 14 bar
User & Safety Instructions
User & Safety Instructions 1893594 FESTO 531117 MSB4-1/4-FRC5:J1M1 Maintenance module 1/4" Compressed air, Inert gas Max. operating pressure 14 bar
Information
Information 1893594 FESTO 531117 MSB4-1/4-FRC5:J1M1 Maintenance module 1/4" Compressed air, Inert gas Max. operating pressure 14 bar
Description
Wide range, highly functional components and a wide range of services: with the series MS Festo offers a holistic concept for your compressed air treatment. For simple standard applications as well as for application-specific solutions with the highest quality requirements.
Maximum machine availability through controlled processes:
With the built-in pressure and flow sensors of the series MS put you on a highly reliable compressed air preparation and supply of your plants.
Powerful, which pays off:
The highest flow rates with low space requirements: So you save money because they compared to similar maintenance units often a size smaller plans you can!
· Lockable rotary knob
· Good control characteristics with small pressure hysteresis
· Filter, controller and oiler function in a device unit
· High flow and efficiency of the dirt separation
· Fuse setting values by locking the knob
· With either manual or fully automated, integrated condensate drain
· Flow Volume
· Individual configuration
· Built-in sensors
· Security Functions
· Energy efficiency
· UL and ATEX category 2DG
This text is machine translated.
Maximum machine availability through controlled processes:
With the built-in pressure and flow sensors of the series MS put you on a highly reliable compressed air preparation and supply of your plants.
Powerful, which pays off:
The highest flow rates with low space requirements: So you save money because they compared to similar maintenance units often a size smaller plans you can!
· Lockable rotary knob
· Good control characteristics with small pressure hysteresis
· Filter, controller and oiler function in a device unit
· High flow and efficiency of the dirt separation
· Fuse setting values by locking the knob
· With either manual or fully automated, integrated condensate drain
· Flow Volume
· Individual configuration
· Built-in sensors
· Security Functions
· Energy efficiency
· UL and ATEX category 2DG
This text is machine translated.
