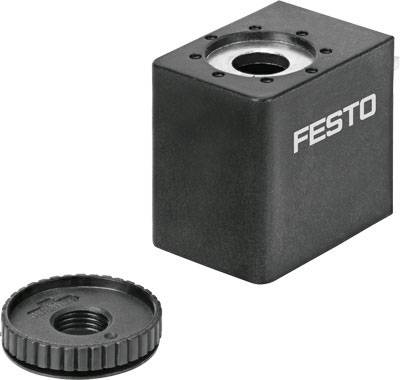

FESTO Magnet coil 8030815 VACF-B-C1-16B Circuit diagram 1 pc(s)

· According to VDE specifications 0580 with the insulation class H
· Without intervention in the pneumatic circuit can be changed
VACF solenoid-B-C1-16B Connection Diagram Form C, according to EN 175 301, 120 V AC/60 Hz and 110 V AC/50-60 Hz. Installation position=any, switch-on duration = 100%, insulation class=H, coil characteristics = 110/120 V AC 50/60Hz, pick-up power 4.4 VA, holding power 3.3 VA, impulse withstand voltage = 2.5 kV
