TRU COMPONENTS Magnetic valve TC-12772456 TC-V3210-06 G 1/8 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details

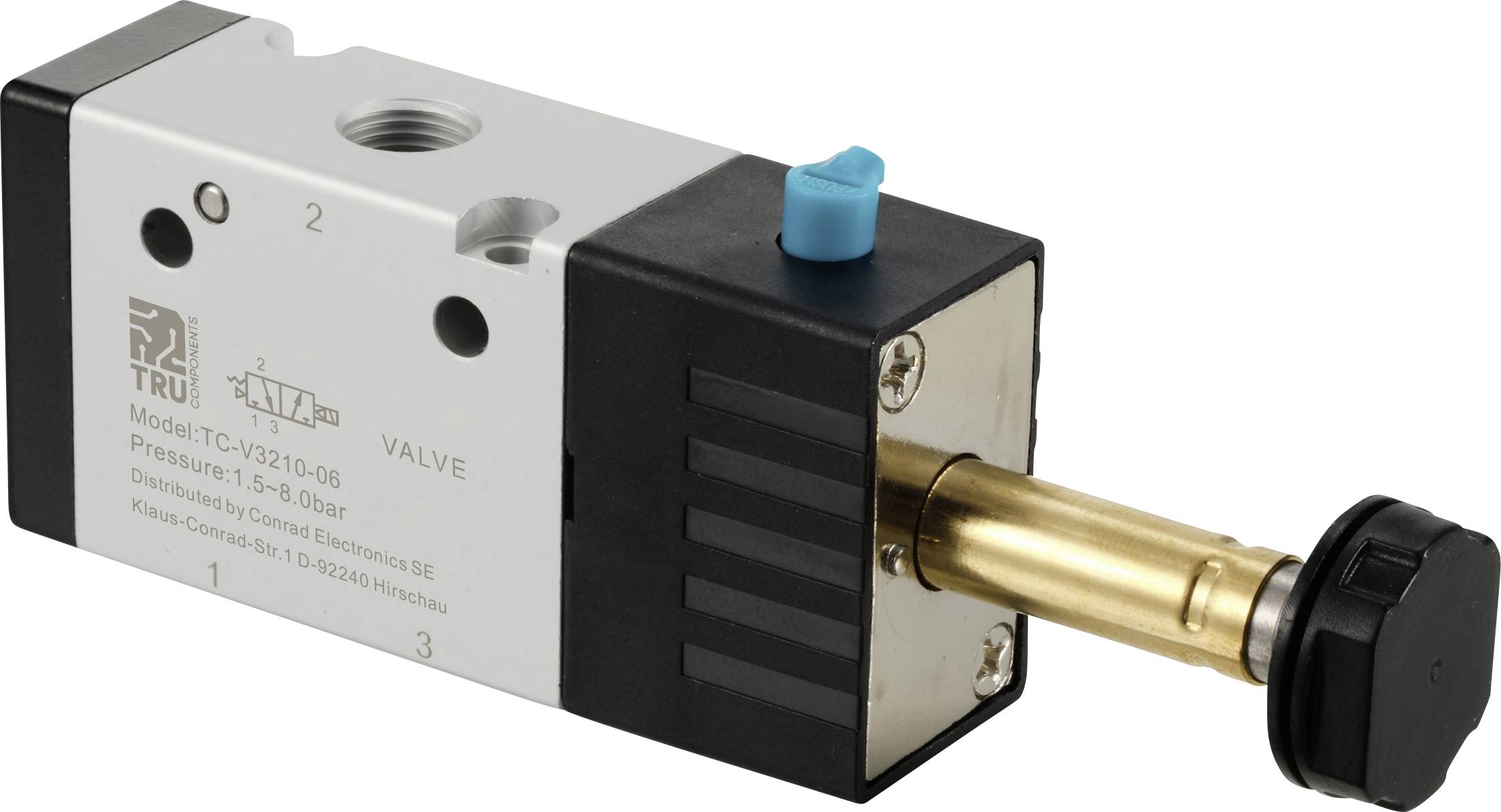

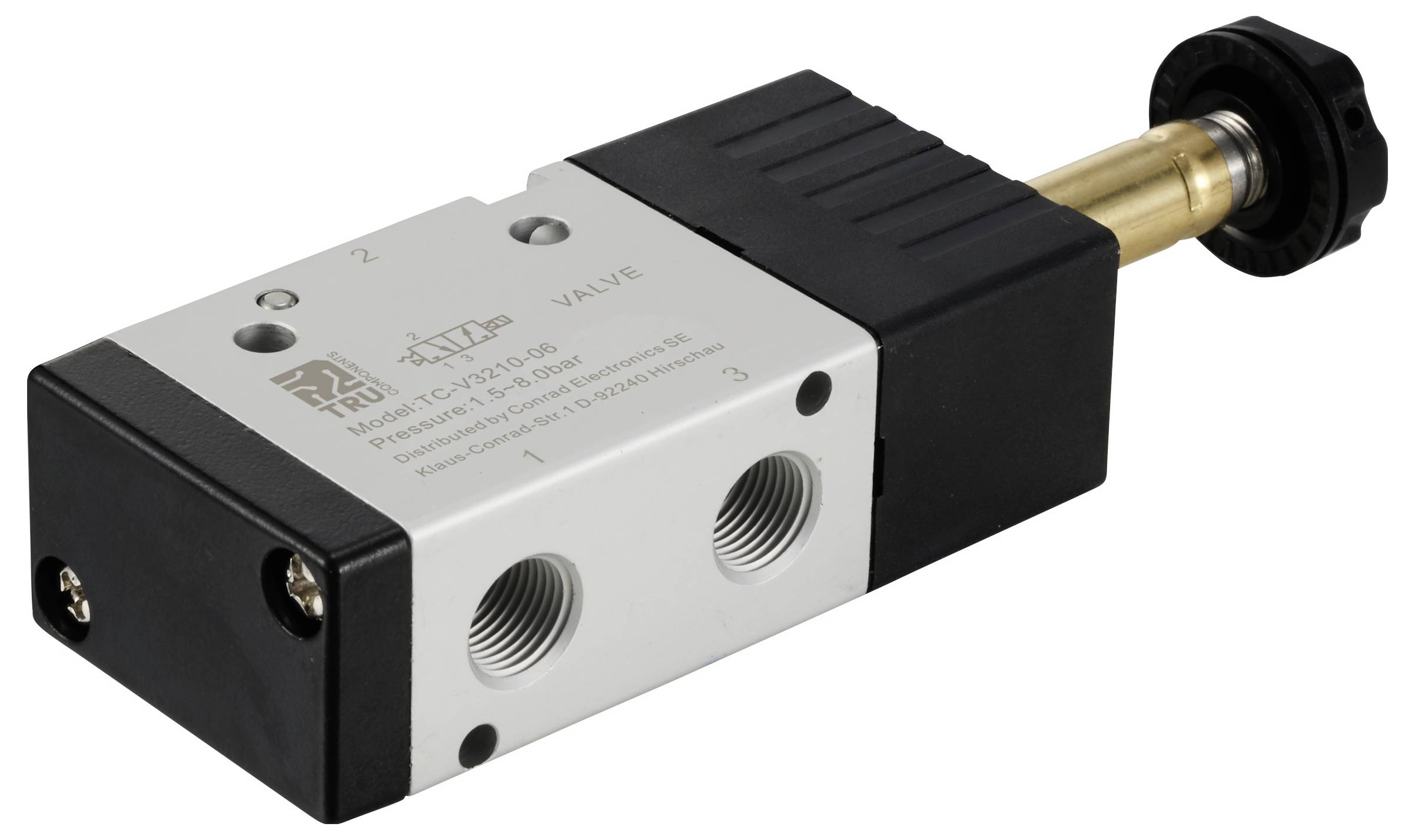

Solenoid Valve G1/8", 2 position 3 way
- Input, output, exhaust port size: G1/8"
- 2 Position 3 Way
- Working pressure (Bar): 1.5 - 8 Bar
- Effective sectional: 14 mm²
Technical specifications
- Input, output, exhaust port size: G1/8"
- Effective sectional: 14mm²
- Product type
Magnetic valve
- Max. operating pressure
8 bar
- Connection
G 1/8
- Operating medium
Filtered and compressed air
- Manufacturer part #
TC-12772456
- Operating pressure (min.)
1.5 bar
- Sealant
HNBR
- Function
3/2 bi-stable
- Switching frequency
5 cycles/sec.
- Max. ambient temperature
50 °C
- Min. ambient temperature
-5 °C
- KV value
0.697
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3193114 TRU COMPONENTS Magnetic valve TC-12772456 TC-V3210-06 G 1/8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3193114 TRU COMPONENTS Magnetic valve TC-12772456 TC-V3210-06 G 1/8 1 pc(s)
Description
Features
- Size of the input, output and outlet ports: G1/8"
- 2 positions 3/2-way
- Operating pressure (bar) 1.5 - 8 bar
- Effective cross-section: 14 mm²
- This text is machine translated.
Scope of delivery
- Magnetic valve
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C. The QNn factor indicates the gas volume flow, measured in litres/min
Supplied without coil and magnet valve with cable connection.
