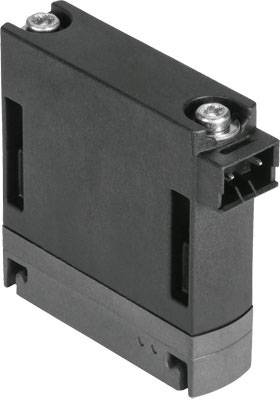

FESTO Magnetic valve 553117 MHJ9-HF Connector plate 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 59.99 / piece)
€ 59.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Magnetic valve MHJ9-HF
Technical specifications
- Electrical connection: Plug KMH, 2-pin
- Product type
Magnetic valve
- Max. operating pressure
6 bar
- Enclosure material
PA
- Connection
Connector plate
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Media temperature (range)
-5 up to 60 °C
- Manufacturer part #
553117
- Type
Normal nominal flow rate: 160 l/min
- Operating pressure (min.)
0.5 bar
- Sealant
HNBR
- Function
2/2 normally closed mono-stable
- Weight
25 g
- Max. media temperature
60 °C
- Media temperature (min.)
-5 °C
- Medium
Compressed air
- Width
9 mm
- Switching frequency
500 Hz
IP40
- Max. ambient temperature
60 °C
- Min. ambient temperature
-5 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1942128 FESTO Magnetic valve 553117 MHJ9-HF Connector plate 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1942128 FESTO Magnetic valve 553117 MHJ9-HF Connector plate 1 pc(s)
Information
Information 1942128 FESTO Magnetic valve 553117 MHJ9-HF Connector plate 1 pc(s)
Description
- The new dimension in sorting technology mhj
Ultra-fast, ultra-durable, ultra-reproducible: purge valves of the series MHJ MHJ 9 and 10 are created for a new, extreme dimension in the sorting technology, thanks to the finest properties:
• Shortest switching time of 1 ms
• Flow 50 … 150 l/min
• Excellent repeat accuracy of 0.1 ms
• Unrivalled Long Life - over 5 billion switching cycles!
Know-how provides for innovation
These revolutionary properties are the result of permanent tests and on the enduring optimization of a tried-and-tested series.
Tailor-made for you
Ideally suited to your application results in a large range of use. Because you have a free choice at:
• Flow
• Valve arrangement
• Strips geometry
• Pneumatic Connections
• Electric Control
• Output/nozzle geometry
This text is machine translated.
Ultra-fast, ultra-durable, ultra-reproducible: purge valves of the series MHJ MHJ 9 and 10 are created for a new, extreme dimension in the sorting technology, thanks to the finest properties:
• Shortest switching time of 1 ms
• Flow 50 … 150 l/min
• Excellent repeat accuracy of 0.1 ms
• Unrivalled Long Life - over 5 billion switching cycles!
Know-how provides for innovation
These revolutionary properties are the result of permanent tests and on the enduring optimization of a tried-and-tested series.
Tailor-made for you
Ideally suited to your application results in a large range of use. Because you have a free choice at:
• Flow
• Valve arrangement
• Strips geometry
• Pneumatic Connections
• Electric Control
• Output/nozzle geometry
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
