Name: FESTO Magnetic valve 573718 VMPA14-M1H-M-PI Nominal width (details) 14 mm 5/2 or 3/2 way 1 pc(s)
Brand: FESTO
SKU: 1942444
Availability: BackOrder

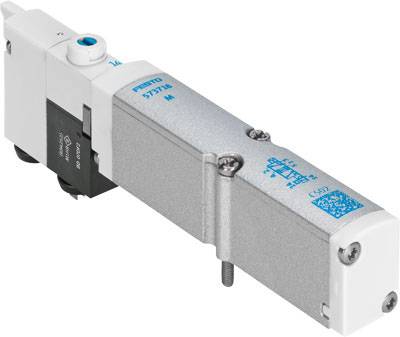

Valve of a pneumatic system, silver with blue markings, showing valve body and connections.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Magnetic valve VMPA14-M1H-M-PI

Technical specifications

Product type: Magnetic valve

Max. operating pressure: 10 bar

Enclosure material: Aluminium (die-cast)

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Media temperature (range): -5 up to 50 °C

Manufacturer part #: 573718

Type: Normal nominal flow rate: 670 l/min

Operating pressure (min.): -0.9 bar

Sealant: NBR

Function: 5/2 mono-stable

Weight: 77 g

Max. media temperature: 50 °C

Media temperature (min.): -5 °C

Medium: Compressed air

Nominal width: 14 mm

Features: Electrically actuated

QNn value: 670 l/min

: IP65

Control pressure (max.): 8 bar

Control pressure (min.): 3 bar

Max. ambient temperature: 50 °C

Min. ambient temperature: -5 °C

Operating principle: 5/2 or 3/2 way

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Max. operating pressure

Enclosure material

FESTO Magnetic valve 533342 VMPA1-M1H-M-PI Nominal width (details) 10 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941364

Fast track dispatch on Fri 23 Oct

4 Piece(s)Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

FESTO Magnetic valve 533344 VMPA1-M1H-B-PI 24 1 pc(s)

Item no:1941366

Dispatches on Tue 3 Nov

Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

FESTO Magnetic valve 533345 VMPA1-M1H-G-PI 24 1 pc(s)

Item no:1941367

Fast track dispatch on Fri 23 Oct

2 Piece(s)Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

FESTO Magnetic valve 533346 VMPA1-M1H-E-PI QS-6 Nominal width (details) 10 mm 1 pc(s)

Item no:1941368

Dispatches on Tue 3 Nov

Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 149.99^*

FESTO Magnetic valve 533347 VMPA1-M1H-K-PI 1 pc(s)

Item no:1941369

Fast track dispatch on Fri 23 Oct

8 Piece(s)Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

FESTO Magnetic valve 533348 VMPA1-M1H-N-PI Nominal width (details) 10 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941370

Dispatches on Tue 3 Nov

Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

FESTO Magnetic valve 533349 VMPA1-M1H-H-PI QS-6 Nominal width (details) 10 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941371

Dispatches on Tue 3 Nov

Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

FESTO Magnetic valve 533350 VMPA1-M1H-D-PI QS-6 Nominal width (details) 10 mm OFF/NC 1 pc(s)

Item no:1941372

Dispatches on Tue 3 Nov

Conrad Electronic

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

FESTO Magnetic valve 533376 VMPA1-M1H-M-M7-PI M7 1 pc(s)

Item no:1941373

Dispatches on Tue 3 Nov

Conrad Electronic

8 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

FESTO Magnetic valve 533377 VMPA1-M1H-J-M7-PI M7 1 pc(s)

Item no:1941374

Dispatches on Tue 3 Nov

Conrad Electronic

8 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 239.99^*

Documents & Downloads

Datasheet

Datasheet 1942444 FESTO Magnetic valve 573718 VMPA14-M1H-M-PI Nominal width (details) 14 mm 5/2 or 3/2 way 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1942444 FESTO Magnetic valve 573718 VMPA14-M1H-M-PI Nominal width (details) 14 mm 5/2 or 3/2 way 1 pc(s)

Information

Information 1942444 FESTO Magnetic valve 573718 VMPA14-M1H-M-PI Nominal width (details) 14 mm 5/2 or 3/2 way 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
