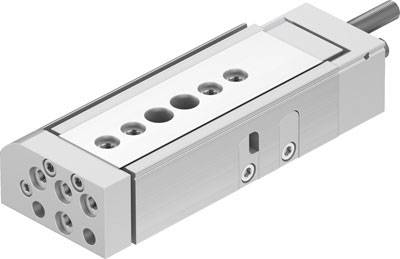

FESTO Mini slider 543928 DGSL-8-30-PA Stroke length: 30 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 689.00 / piece)
€ 689.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Mini slider DGSL-8-30-PA
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Mini slider
- Stroke length
30 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
543928
- Type
Mini slide DGSL -8-30-PA for position detection, with highly precise heavy-duty ball bearing guide, both elastic damping without metallic end position (P). Hub = 30 mm, adjustable end position range/length front = 35.5 mm, adjustable end position range/length rear = 18.5 mm, piston diameter = 10 mm, operating mode drive unit = Yoke
- Weight
301 g
- Size
Mini
- Sealant
HNBR
- Pneumatics connector
M3
- Piston rod material
Steel (stainless)
- Piston rod diameter
10 mm
- Force (max.)
47 N
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
