FESTO

Product type

Pressure sensor

Max. operating voltage

30 V DC

Outputs

PNP

Model

Inductive

Type

SDE5-D10-C-Q6E-P-M8

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 109.99 / piece)

€ 109.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

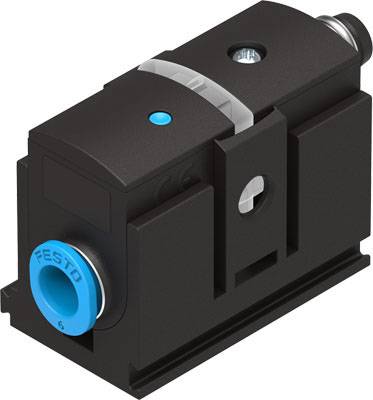

Pressure sensor SDE5-D 10-C-Q6E-P-M8

Technical specifications

Product weight: 19 g
Max. output current 100 mA
Electrical connection: Plug, round design, M8 x 1, 3-pin
Mounting type: with accessories
Corrosion resistance class KBK: 2-moderate corrosion stress

Product type: Pressure sensor

Type: SDE5-D10-C-Q6E-P-M8

Min. operating voltage: 15 V DC

Max. operating voltage: 30 V DC

Operating voltage: 15 - 30 V DC

Outputs: PNP

Enclosure material: PA
POM

Model: Inductive

Size: M8

Min. temperature: 0 °C

Max. temperature: +50 °C

: IP40

Content: 1 pc(s)

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1937400 FESTO Pressure sensor Inductive SDE5-D10-C-Q6E-P-M8 542894 M8 PNP

User & Safety Instructions

User & Safety Instructions 1937400 FESTO Pressure sensor Inductive SDE5-D10-C-Q6E-P-M8 542894 M8 PNP

Description

Pressure sensor SDE5-D 10-C-Q6E-P-M8 with plug type M8. Approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor

This text is machine translated.

Description

Pressure sensor SDE5-D 10-C-Q6E-P-M8 with plug type M8. Approval = (* RCM mark, * C UL US recognized (oil)), CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = relative pressure, measuring method = piezoresistive pressure sensor

This text is machine translated.
