Automation & PneumaticsAutomationIndustrial SensorsProximity Sensors

FESTO Proximity sensor Inductive SMTSO-8E-PS-M12-LED-24 191986 T groove PNP

EAN:
Part number:
Item no:

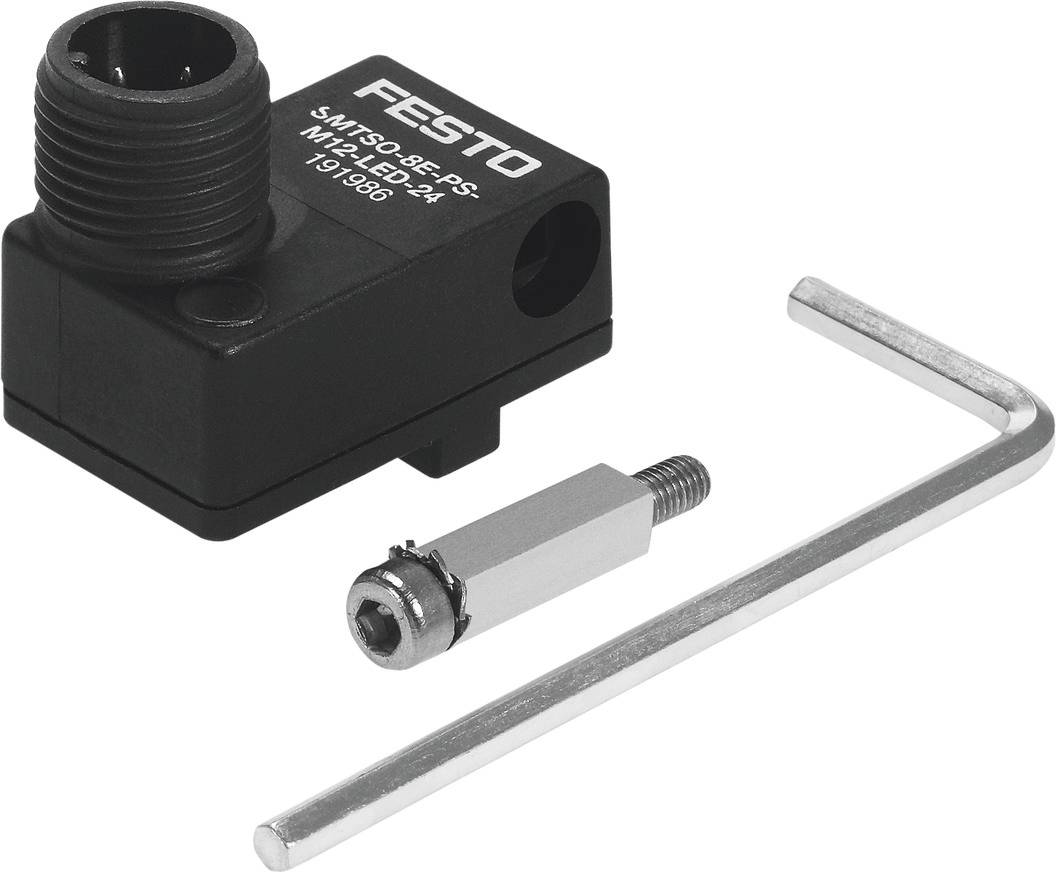

Festo magnetic field sensor with cable connection, screw and hexagon key. Used for precise position detection in automation systems.
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 194.99 / piece)
€ 194.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included
Report legal concerns

Highlights & Details

Proximity switch SMTSO-8E-PS-M12-LED-24

  • On a dark background, 'Official Partner' is positioned on the left, with the FESTO logo in orange on a white background on the right.

Technical specifications

  • Proximity switch electrically, contact-free, PNP, for drives with T-slot, without mounting kit, with M12 connector, sweat-proof design
  • Design: for the T-slot
  • Weight: 19 g
  • Max. output current 200 mA
  • Mounting type: with accessories
  • Max. circuit breaking capacity 6 W
Product type

Proximity sensor

Type

SMTSO-8E-PS-M12-LED-24

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Operating voltage

10 - 30 V DC

Contact type

1 PNP

Outputs

PNP

Enclosure material

PA

TPE-U(PU)

Aluminium wrought alloy

Steel

Model

Inductive

Installation type

T groove

Connector

M12

Min. temperature

-25 °C

Max. temperature

+70 °C

IP65

IP67

Content

1 pc(s)

Type

Protection class IP65/IP67

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1943934 FESTO Proximity sensor Inductive SMTSO-8E-PS-M12-LED-24 191986 T groove PNP

User & Safety Instructions

User & Safety Instructions 1943934 FESTO Proximity sensor Inductive SMTSO-8E-PS-M12-LED-24 191986 T groove PNP

Description

Proximity switch SMTSO-8E-PS-M12-LED-24 electric, contact, PNP, for drives with T-slot, without mounting kit, with M12 connector, sweat proof design. Design = for T-groove, approval = RCM mark, CE mark (see declaration of conformity) = after EU EMC Directive, special properties = (* welding field, * welding spray heritage constantly), material note = copper and PTFE-free

This text is machine translated.
