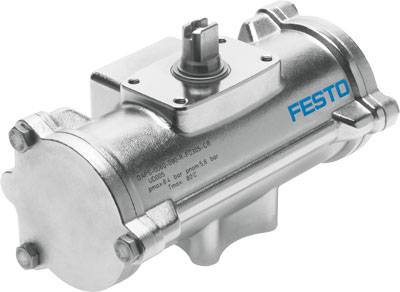

FESTO Rotary actuator 552874 DAPS-0480-090-R-F0710-CR Enclosure material: Steel (stainless) 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 3,185.00 / piece)
€ 3,185.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Swivel angle: 90 deg
- Design: yoke kinematics
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8.4 bar
- Manufacturer part #
552874
- Weight
9500 g
- Connection
G1/8
- Min. operating pressure
2.5 bar
- Operating medium
Compressed air
- Sealant
FPM
NBR
PUR
- Enclosure material
Steel (stainless)
- Material
Steel (stainless)
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2120366 FESTO Rotary actuator 552874 DAPS-0480-090-R-F0710-CR Enclosure material: Steel (stainless) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2120366 FESTO Rotary actuator 552874 DAPS-0480-090-R-F0710-CR Enclosure material: Steel (stainless) 1 pc(s)
Description
Swivel drive DAPS -0480-090-R-F0710-CR size actuator =)0480, flange drilling pattern = (* F07, * F10), tilt angle = 90 deg, 24.3 mm, standard port for connecting shaft depth = fitting = ISO 5211
