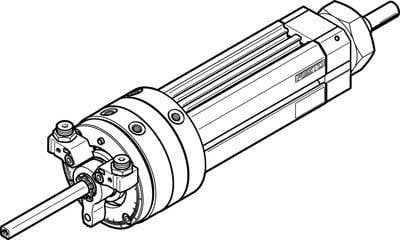

Image similar
FESTO Rotary/linear actuator 556438 DSL-20-50-270-P-A-S2-B Enclosure material: Aluminium wrought alloy Stroke length: 50
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 1,189.00 / piece)
€ 1,189.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Swivel angle: 272 deg
- Design: Swivel Wing
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary/linear actuator
- Stroke length
50 mm
- Max. operating pressure
8 bar
- (Ø)
20 mm
- Manufacturer part #
556438
- Weight
1050 g
- Connection
M5
- Min. operating pressure
2.5 bar
- Operating medium
Compressed air
- Sealant
TPE-U
- Enclosure material
Aluminium wrought alloy
- Piston diameter
20 mm
- Piston rod material
Quenched steel
- Material
Aluminium wrought alloy
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2125638 FESTO Rotary/linear actuator 556438 DSL-20-50-270-P-A-S2-B Enclosure material: Aluminium wrought alloy Stroke length: 50
User & Safety Instructions
User & Safety Instructions 2125638 FESTO Rotary/linear actuator 556438 DSL-20-50-270-P-A-S2-B Enclosure material: Aluminium wrought alloy Stroke length: 50
Description
Swivel linear unit DSL -20-50-270-P-A-S2-B for position detection. Rotary and linear motion control independently of each other. Rotation of 0° - 270° infinitely variable. Setting range swivel angle = 0 - 270 deg, Hub = 50 mm, piston diameter = 20 mm, swivel angle = 0 - 272 deg, dampening = P: elastic damping rings/boards on both sides
