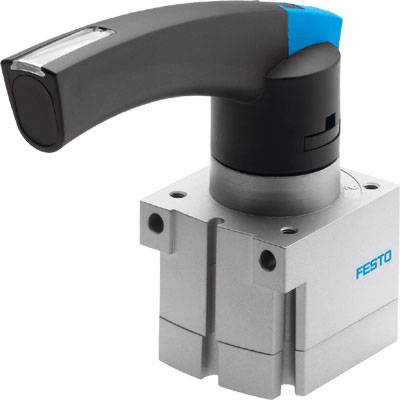

FESTO VHER-P-H-B43C-B-G14 Control slide valve 0 up to 10 bar 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
VHER-P-H-B 43 C-B-G14
Technical specifications
- Normal nominal flow rate: 800 l/min
- Design: rotary slide
- Nominal width: 6mm
- Drosselbar exhaust function:
- Actuating torque: 0.9 Nm
- Material lever: PA
- Material Seals: NBR
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Control slide valve
- Min. display range
0 bar
- Display range (max.)
10 bar
- Type
Corrosion resistance class KBK: 2-moderate corrosion stress
- Manufacturer part #
3515601
- Material (details)
PA
- Connection
G1/4"
- Fitting method
Front panel mounting, with through hole
- Max. operating pressure
10 bar
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 10 bar
- Operating medium
Compressed air
- Operation type
manually
- Sealant
NBR
- Weight
125 g
- Nominal width
6 mm
- Nominal width
6 mm
- Width
56 mm
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2123886 FESTO VHER-P-H-B43C-B-G14 Control slide valve 0 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2123886 FESTO VHER-P-H-B43C-B-G14 Control slide valve 0 up to 10 bar 1 pc(s)
Description
Spool VHER-P-H-B 43 C-B-G14 valve function = 4/3 closed, operating method = manual, Width = 56 mm, normal rated flow = 1500 l/min, Operating pressure = 0 - 10 bar
