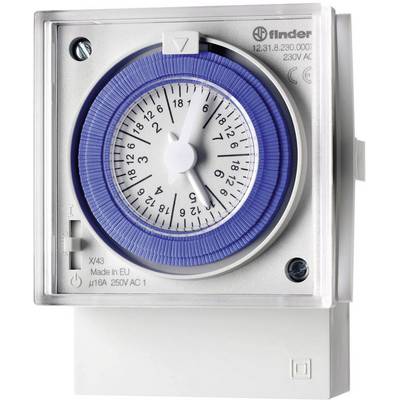

Finder 12.31.8.230.0007 Timer (front-mount) 123182300007 230 V AC Week settings
EAN:
Part number:
Item no:
Product type
Timer (front-mount)
Type
Week settings
Contact type
1 change-over
Switching current (max.)
16 A
Type
123182300007
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Mechanical timer clock for front installation, series 12.31
Technical specifications
- Min. power reserve: 70 h
- Product type
Timer (front-mount)
- Type
123182300007
- Type
Week settings
- Switching distance (min)
60 min
- No. of switching intervals
168
- Power reserve
100 h
- Operating voltage
230 V AC
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Min. temperature
-10 °C
- Max. temperature
+50 °C
IP20
- Width
72 mm
- Height
91.5 mm
- Depth
51.4 mm
- Dim
(W x H x D) 72 x 91.5 x 51.4 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Week program
- Contact load capacity
(at 230 V): Incandescent bulbs 2000 W, compensated luminescent bulbs 750 W, uncompensated luminescent bulbs 1000 W, halogen lamps 2000 W
- Switching capacity
(AC1) 4000 VA
- Switching voltage
250 V AC
- Switching current
16 A
- Type
12.31.8.230.0007
- Ambient temperature
-10 - +50 °C
- Time range
168 switching slots/week, shortest switching distance 60 min
- Operating voltage
230 V/50 - 60 Hz
Panel mounting 72x72 mm
72
91.5 mm
51.4 mm
4
AC
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 506035 Finder 12.31.8.230.0007 Timer (front-mount) 123182300007 230 V AC Week settings
User & Safety Instructions
User & Safety Instructions 506035 Finder 12.31.8.230.0007 Timer (front-mount) 123182300007 230 V AC Week settings
Description
Mechanical timer, easily adjustable control panel installation and surface mounting (front frame 72 x 72 mm).
Hints
Approvals: CE.
