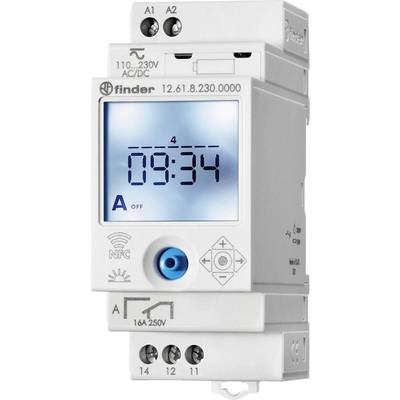

Finder 12.61.8.230.0000 DIN rail mount timer 12.61.8.230.0000 230 V DC, 230 V AC Week settings
EAN:
Part number:
Item no:
Product type
DIN rail mount timer
Type
Week settings
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Digital weekly timer, series 12
Highlights & Details
- Time-controlled switching on and off
- Pulse function from 1 second to 59 minutes
- Holiday program
Technical specifications
- Product type
DIN rail mount timer
- Type
12.61.8.230.0000
- Type
Week settings
- Switching distance (min)
1 min
- No. of switching intervals
50
- Operating voltage
230 V DC
230 V AC
- Min. operating voltage
90 V DC
90 V AC
- Max. operating voltage
264 V DC
264 V AC
- Operating voltage
90, 90 - 264, 264 V DC, V AC
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Max. switching capacity
750 VA
- Min. temperature
-20 °C
- Max. temperature
+50 °C
IP20
- Width
49.0000 mm
- Height
20.0000 mm
- Depth
20.0000 mm
- Dim
(W x H x D) 49.0000 x 20.0000 x 20.0000 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Factory colour
Multicolour
- Weight
0.09
DIN rail
35
60.8 mm
88.8 mm
Change-over contact (NO/NC)
2
AC
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1419698 Finder 12.61.8.230.0000 DIN rail mount timer 12.61.8.230.0000 230 V DC, 230 V AC Week settings
User & Safety Instructions
User & Safety Instructions 1419698 Finder 12.61.8.230.0000 DIN rail mount timer 12.61.8.230.0000 230 V DC, 230 V AC Week settings
Information
Information 1419698 Finder 12.61.8.230.0000 DIN rail mount timer 12.61.8.230.0000 230 V DC, 230 V AC Week settings
Description
This timer is suitable for schaltprgramme at certain times and on certain days of the week. Also finger gestures instead of mechanical knobs, buttons or dials (optional) Programming the timer. Here FINDER the smartphone, in order to communicate with that device. Smartphone apps have mainly the charm that you clear and intuitive to use. The device for DIN rail can be with the finder toolbox-app completely configure on the Smartphone. The configuration is done, the record is transferred into the time switch and by mere hanging up the smartphone to the device housing. The data transfer works even without power supply of the time switch, because the smartphone itself by induction ensures that the NFC-chip on reception. Therefore, it can be configured out of the box comfortable in the office, and is then programd in the same distribution or the switch cabinet is built-in.
Application areas: irrigation systems, heating and cooling systems, shops, illuminated signs, access control for doors.
This text is machine translated.
Application areas: irrigation systems, heating and cooling systems, shops, illuminated signs, access control for doors.
This text is machine translated.
Hints
To program via NFC interface, you need the Finder Toolbox app for Android (Google Play Store) or the Finder Toolbox NFC app for iOS (APP Store). EAC approved
