Buy Finder 18.21.8.230.0000 | Conrad Electronic

A white ceiling-mounted motion sensor with a distinctive grid structure on the lens for 360-degree detection in indoor spaces.

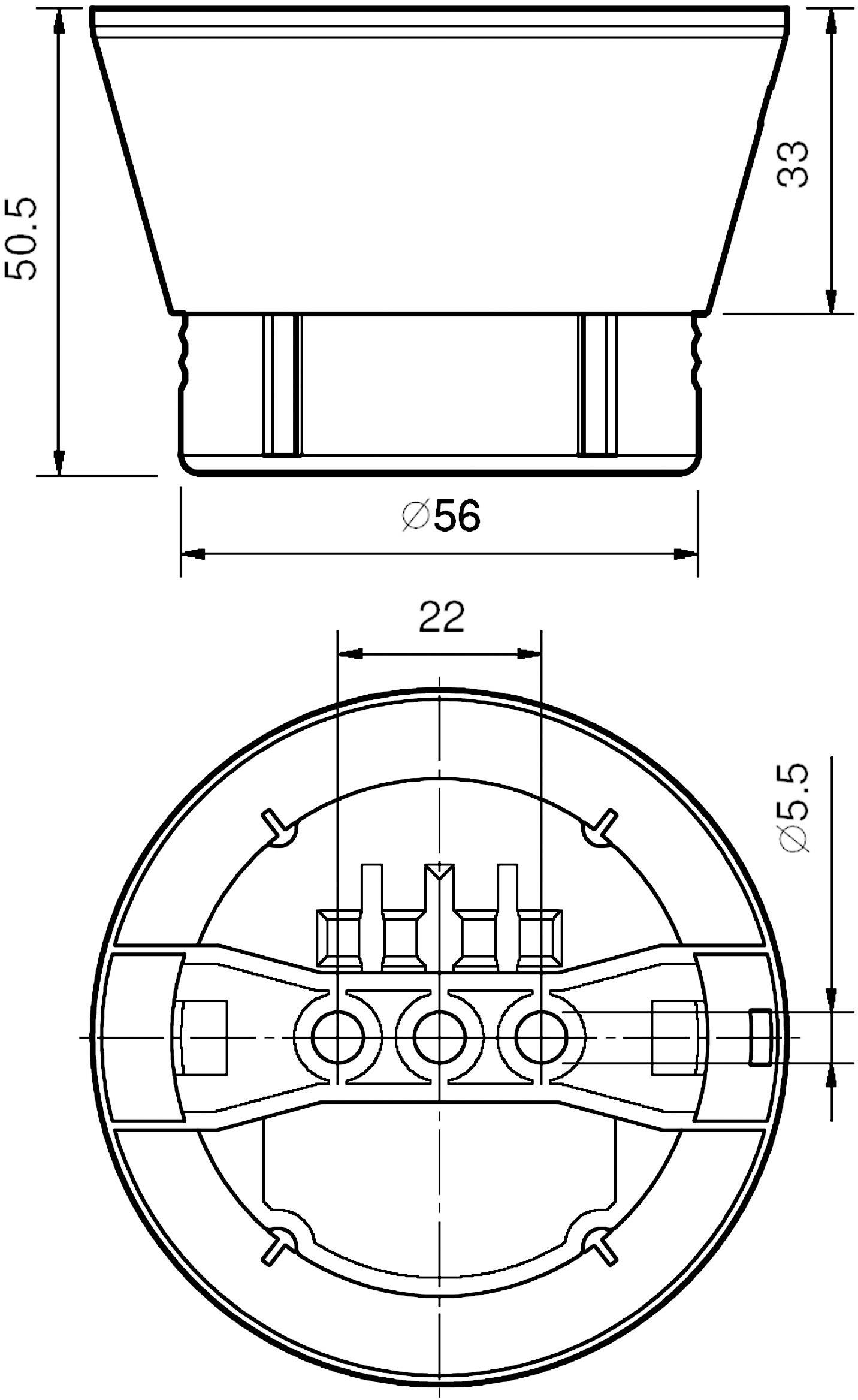

Technical drawing of a cylindrical part with dimensions: height 50.5 mm, width 56 mm. Shows internal view with connections and spacing 22 mm.

1/2

Product type

IR motion detector

Max. operating voltage

230 V AC

Contact type

1 maker

Max. range

8 m

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 43.69 / piece)

€ 43.69

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Finder 18.21.8.230.0000

Suitable for indoor ceiling installation, meets IP40
Surface mounting
Output connected to supply voltage
Adjustable ambient light intervention threshold
Adjustable Light On Time
Wide angle of survey

Technical specifications

Nominal lamp rating: incandescent/halogen 1000 W / Fluorescent lamp with Electronic ballast 500 W / Fluorescent lamp with Electromecanical ballast 350 W / CFL 300 W / LED 230 V 300 W / Halogen or LV LED with electronic ballast 300 W / Halogen or LV LED with electromechanical ballast 500 W

Product type: IR motion detector

Content: 1 pc(s)

Type: 18.21.8.230.0000

Operating voltage: 230 V AC

Operating voltage: 120 - 230 V AC

Min. operating voltage: 120 V AC

Max. operating voltage: 230 V AC

Contact type: 1 maker

Contact material: AgSnO2

Switching voltage (max.): 230 V AC

Switching current (max.): 10 A

Max. switching capacity: 2300 VA

Electrical lifespan: 100 x 10³ cycles

Light sensitivity (min.): 5 lx

Light sensitivity (max.): 350 lx

: 8 m

Time range (min.): 10 s

Time range (max.): 12 min

Min. temperature: -10 °C

Max. temperature: +50 °C

Factory colour: White

Type: Ceiling mount on interior plaster

Sensitivity: 1 - 500 lx

Nominal voltage (details): 250 V/AC

Switching capacity: (AC1) 2500 VA/ (AC15) 450 VA

Switching voltage: 250 V/AC/ 400 V/AC

Switching current: 10 A

Type: 18.21.8.230.0000

Temperature range: -10 - +50 °C

Time range: 12 s - 35 min

Operating voltage: 110 - 230 V/AC

: Surface mounted (plaster)

: White

: Movement sensor

: TRUE

: 50.5 mm

: Screwed terminal

: Untreated

: AC

: 50-60 MHz

: 75.1 mm

: FALSE

: Thermoplastic

: 100 A

: Plastic

: 9010

: 120-230 V

: IP40

: FALSE

: Matt

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 503141 Finder 18.21.8.230.0000

User & Safety Instructions

User & Safety Instructions 503141 Finder 18.21.8.230.0000

Description

Motion detector for the installation in indoor areas for surface-mounted ceiling mounting.

This text is machine translated.

Features

Adjustable ambient light intervention threshold, Adjustable Light On Time

Scope of delivery

Mounting accessories are included in the packaging.

Hints

Approvals: EAC, IMQ.
