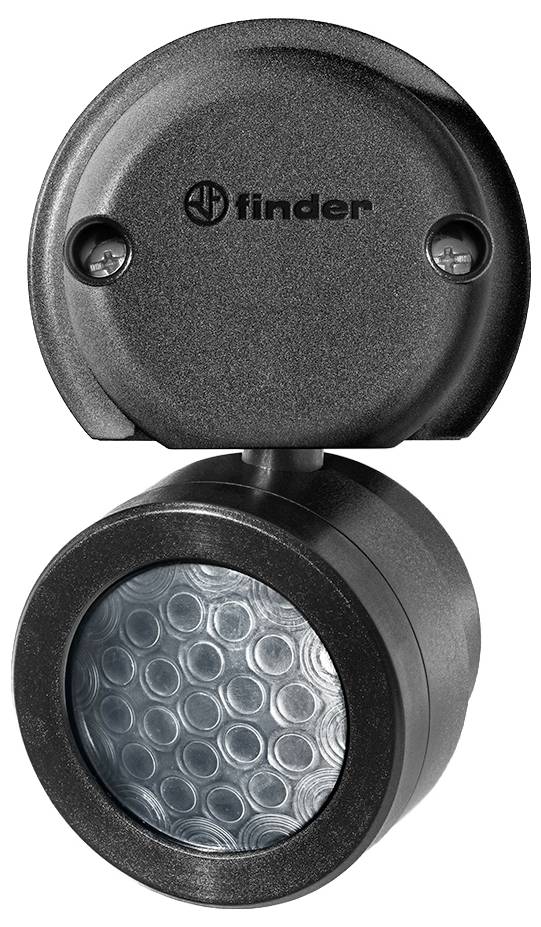

Finder Motion detector 18.81.8.230.0002 230 V AC 184 - 253 V AC 1 maker (Ø x H) 52 mm x 107.3 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motion detector
Max. operating voltage
253 V AC
Contact type
1 maker
Max. range
10 m
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
14-day return policy included
Highlights & Details
Finder 18.82 Alignable motion detector for wall mounting in the outdoor area, anthracite-gray
- Surface mounting
- Potential free output contact
- Terminal clamp for separate button
- Adjustable delayed shut-off
- Compact dimensions
- Adjustable brightness threshold
- Universal installation position - allows you to select any detection area
- Wide detection angle
- Easy to Set Up
Technical specifications
- Protection class IP 55
- Housing color: Anthracite gray
- Connection option for a separate switch
- Dynamic light compensation (patented principle for "compensation of the influence of switched light")
- Product type
Motion detector
- Content
1 pc(s)
- Type
18.81.8.230.0002
- Connection
Clamp
- Operating voltage
230 V AC
- Operating voltage
184 - 253 V AC
- Min. operating voltage
184 V AC
- Max. operating voltage
253 V AC
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
230 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2300 VA
- Power consumption
0.5 W
- Electrical lifespan
100000 switching cycles (AC1)
- Light sensitivity (min.)
10 lx
- Light sensitivity (max.)
350 lx
- PIR detection angle (horizontal)
110°
- PIR detection angle (vertical)
110°
- Angular aperture
110°
- Range (min.) (open area)
35 cm
10 m
- Time range (min.)
18 s
- Time range (max.)
15 min
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Length
62.3 mm
- Width
63 mm
- Height
107.3 mm
- (Ø)
52 mm
- Dim
(Ø x H) 52 mm x 107.3 mm
- Lens colour
White
- RoHS-compliant
Yes
- Nominal voltage
230 V AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3779560 Finder Motion detector 18.81.8.230.0002 230 V AC 184 - 253 V AC 1 maker (Ø x H) 52 mm x 107.3 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3779560 Finder Motion detector 18.81.8.230.0002 230 V AC 184 - 253 V AC 1 maker (Ø x H) 52 mm x 107.3 mm 1 pc(s)
Description
Provide intelligent outdoor light control with the Finder type 18.81 motion detector in the stylish casing color anthracite gray. The detection range can be flexibly adjusted thanks to its universal mounting position. Fitted with the patented dynamic light compensation of Finder, the device continuously monitors the natural ambient light. For you this means: The light immediately switches off if there is sufficient daylight - even if movement is detected. This saves energy effectively and preserves your wallet!
This text is machine translated.
This text is machine translated.
Features
- Motion detector 230 V AC
- 1 CLOSER 10 A 230 V AC (AC1)
- Max. SWITCHING POWER AT 230 V AC: AC1-2300 VA, AC15-450 VA
- Lamp loads: Incandescent and halogen lamps 1000 W, energy-saving bulbs 150 W, LED (230 V AC) 150 W.
- Fluorescent lamps with conventional ballast 350 W.
- Adjustable brightness threshold 10 - 350 Lux
- Adjustable switch-off delay 18 s...15 min.
- For wall mounting outdoors - IP 55
- Can be aligned
- Potential-free contact
- Connection for external pushbuttons
- Colour: Anthracite gray
Scope of delivery
- Movement sensor
- Accessories for different installation types as accessory pack
