Finder Motion detector 18.71.8.230.0000 230 V AC 184 - 253 V AC 1 maker (L x W x H) 65.3 x 51 x 100.4 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motion detector
Max. operating voltage
253 V AC
Contact type
1 maker
Max. range
10 m
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
Only 3 Piece(s) available
Highlights & Details

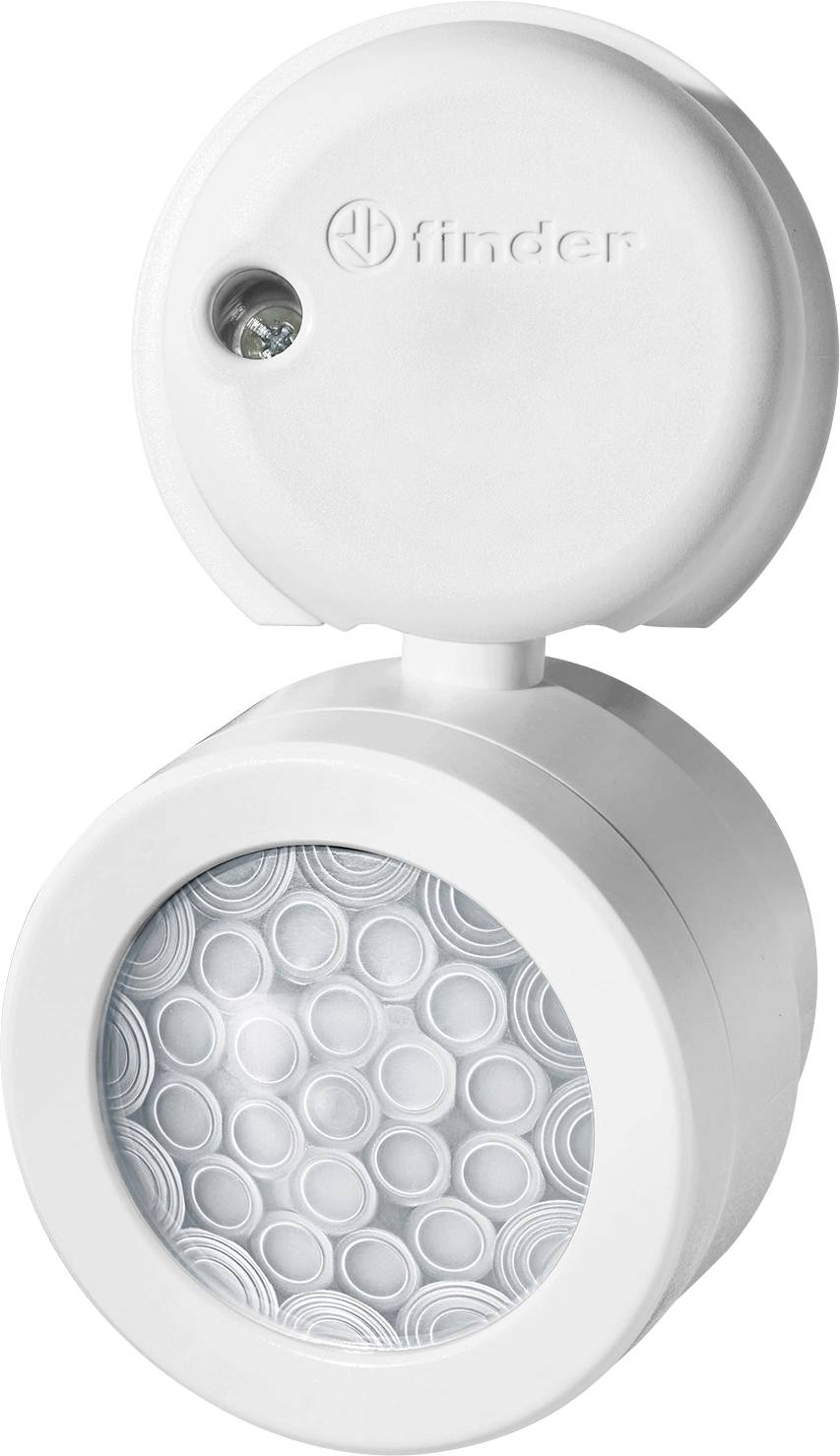

Finder 18.71 Alignable motion detector for wall mounting in the interior, white
- Surface mounting
- Automatic switch-off time control
- Compact dimensions
- Adjustable brightness threshold
- Universal installation position - allows you to select any detection area
- Wide detection angle
- Easy to Set Up
Technical specifications
- Heat dissipation to the environment: 0.3 W (without contact current) / 1.4 W (at max. Continuous current)
- IP 40 protection
- Product type
Motion detector
- Content
1 pc(s)
- Type
18.71.8.230.0000
- Connection
Clamp
- Operating voltage
230 V AC
- Operating voltage
184 - 253 V AC
- Min. operating voltage
184 V AC
- Max. operating voltage
253 V AC
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
230 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2300 VA
- Power consumption
0.5 W
- Electrical lifespan
100 000 switching cycles (at AC1)
- Light sensitivity (min.)
10 lx
- Light sensitivity (max.)
350 lx
- PIR detection angle (horizontal)
110°
- PIR detection angle (vertical)
110°
- Angular aperture
110°
- Range (min.) (open area)
1 m
10 m
- Time range (min.)
18 s
- Time range (max.)
15 min
- Min. temperature
-10 °C
- Max. temperature
50 °C
- Length
65.3 mm
- Width
51 mm
- Height
100.4 mm
- Dim
(L x W x H) 65.3 x 51 x 100.4 mm
- Lens colour
White
- Operating current
22 mA
- RoHS-compliant
Yes
- Nominal voltage
230 V AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3779562 Finder Motion detector 18.71.8.230.0000 230 V AC 184 - 253 V AC 1 maker (L x W x H) 65.3 x 51 x 100.4 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3779562 Finder Motion detector 18.71.8.230.0000 230 V AC 184 - 253 V AC 1 maker (L x W x H) 65.3 x 51 x 100.4 mm 1 pc(s)
Description
Are you looking for an intelligent and flexible solution for your indoor light control? The aligned motion detector Finder type 18.71.8.230.0000 offers maximum freedom while selecting the desired detection area thanks to its universal mounting position. Its compact dimensions nestle decently at each wall, while the simple surface mounting guarantees a fast and easy installation. Equipped with a modern, high-performance AgSnOBH safety contact, the device reliably switches light bulbs, LED-lights as well as halogen lamps. After a short, automatic hardware initialization phase of only about 15 seconds at startup, the sensor ensures high-efficiency energy saving by activating the light only when it is actually needed thanks to the adjustable brightness threshold and automatic time switch off. Trust Finder brand quality for optimum comfort and significant cost reduction in halls, offices and living spaces.
This text is machine translated.
This text is machine translated.
Features
- Motion detector 230 V AC
- 1 CLOSER 10 A 230 V AC (AC1)
- Max. SWITCHING POWER AT 230 V AC: AC1-2300 VA, AC15-450 VA
- Lamp loads: Incandescent and halogen lamps 1000 W.
- ENERGY-SAVING LAMPS 150 W, LED (230 V AC) 150 W.
- Fluorescent lamps with conventional ballast 350 W.
- Adjustable brightness threshold 10 - 350 Lux
- For indoor wall mounting
- Can be aligned
- Self-learning time control switch-off 18 s...15 min.
- Colour white.
Scope of delivery
- Motion detector type 18.71.8.230.0000 (color: White)
- Operating/installation instructions
