Finder 38.21.0.012.0060 38.21.0.012.0060 TDR Multifunction 12 V DC/AC 1 pc(s) Time range: 0.1 - 21600 s 1 change-over Pi
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
TDR
Type
Multifunction
Functions
Flasher, asymmetric, pulse ON
On-delay
Single-shot leading-edge
Pulse shaper
Operating voltage
12 V DC/AC
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 10 Piece(s) available
Technical specifications
- With plug base: Yes
- Suitable for DIN rail mounting: Yes
- Packaging type
Piece
- Product type
TDR
- Type
38.21.0.012.0060
- Type
Multifunction
- Connection
Screws
- Functions
Flasher, asymmetric, pulse ON
On-delay
Single-shot leading-edge
Pulse shaper
- Operating voltage
12 V DC/AC
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Time range (min.)
0.1 s
- Time range (max.)
21600 s
- Width
6.2 mm
- Height
87.9 mm
- Depth
75.6 mm
- Dim
(W x H x D) 6.2 x 87.9 x 75.6 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3323206 Finder 38.21.0.012.0060 38.21.0.012.0060 TDR Multifunction 12 V DC/AC 1 pc(s) Time range: 0.1 - 21600 s 1 change-over Pi
User & Safety Instructions
User & Safety Instructions 3323206 Finder 38.21.0.012.0060 38.21.0.012.0060 TDR Multifunction 12 V DC/AC 1 pc(s) Time range: 0.1 - 21600 s 1 change-over Pi
Description

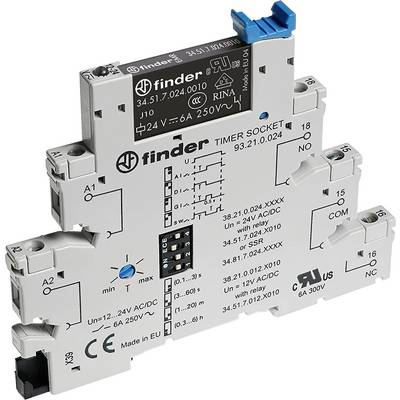

Narrow time relay for DIN rail with screw terminals, socket with integrated time functions, 4 time functions + time ranges up to 6 hours, 1 changeover contacts 6 A/250 V AC, connection voltage 12 V AC/DC, contact material AgNi, LED and EMC interference suppression are integrated in the socket
