Finder 48.12.9.024.5050M Crossbar switch 24 V DC 8 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
400 V AC
Switching current (max.)
8 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Coupling Relays
- positively-driven contacts
- 2 changeover for 8 A / 250 V AC
- Coil voltage 24 V DC
- Contact material AgNi hard gold plated
- With integrated LED and EMC interference suppression
Technical specifications
- Product type
Crossbar switch
- Type
48.12.9.024.5050M
- Min. pick-up voltage
18 V DC
- Max. pick-up voltage
28.8 V DC
- Response time
10 ms
- Fall time
4 ms
- Contact type
2 change-overs
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
400 V AC
- Switching current (max.)
8 A
- Max. switching capacity
2000 VA
- Creepage distance (coil/clips)
8 mm
- Coil voltage rating
0.7 W
- Features
+ diode
+ protection diode
IP20
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Length
75.3 mm
- Width
15.8 mm
- Height
78.6 mm
- Dim
(L x W x H) 75.3 x 15.8 x 78.6 mm
- Content
1 pc(s)
- Industrial packaging
Yes
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3702236 Finder 48.12.9.024.5050M Crossbar switch 24 V DC 8 A 2 change-overs 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3702236 Finder 48.12.9.024.5050M Crossbar switch 24 V DC 8 A 2 change-overs 1 pc(s)
Description

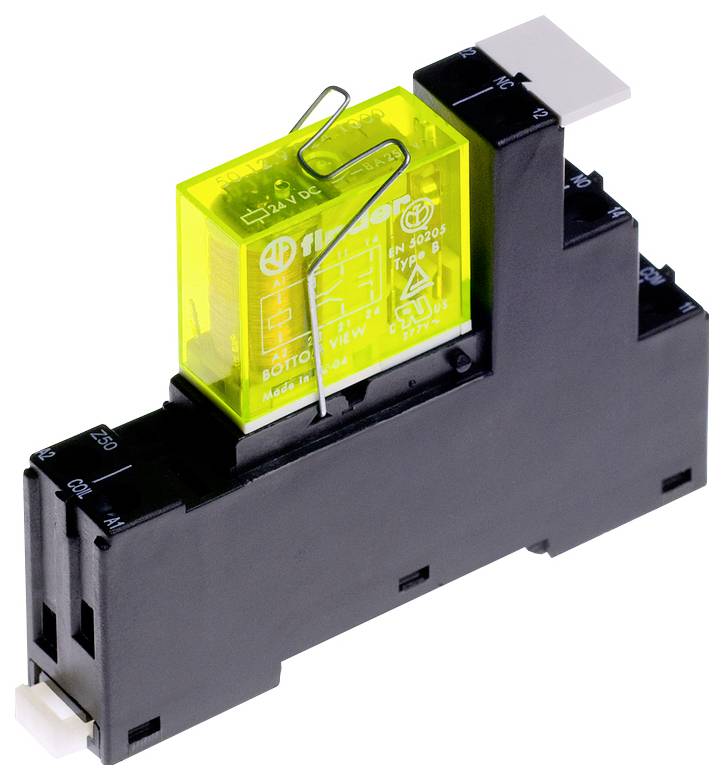

Coupling relays for DIN rail with screw connections
