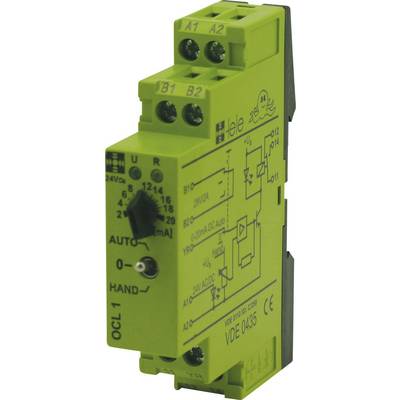

tele OCL1 24 V/AC/DC 0 - 20 mA Crossbar switch 24 V DC, 24 V AC 5 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
1 change-over
Nominal voltage
24 V DC
24 V AC
Switching voltage (max.)
250 V AC
Switching current (max.)
5 A
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Technical specifications
- Control circuit: 0 - 20 mA
- Dimensioning surge voltage: 4 kV
- Contact protection: according to VBG4
- Mounting: on TS35 profile rail.
- Measuring category: III.
- Terminal connection: up to 4 mm²
- Product type
Crossbar switch
- Type
OCL1 24 V/AC/DC 0 - 20 mA
- Contact type
1 change-over
- Nominal voltage
24 V DC
24 V AC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Max. switching capacity
2000 VA
- Max. temperature
+55 °C
- Min. temperature
-25 °C
- Depth
65 mm
- Width
17.5 mm
- Height
87 mm
- Dim
(W x H x D) 17.5 x 87 x 65 mm
- Content
1 pc(s)
- Type
Threshold relay
- Switching capacity
8 A/2000 VA
- Type
OVL1 24 V/AC/DC 0 - 20 mA
- Operating voltage
24 V DC/AC
Documents & Downloads
Datasheet
Datasheet 505636 tele OCL1 24 V/AC/DC 0 - 20 mA Crossbar switch 24 V DC, 24 V AC 5 A 1 change-over 1 pc(s)
Description
Short discription OCL1 24 V/AC/DC 0 - 20 mA: Modes selectable via 3-stage switch · Hand = continuous On, 0 = continuous Off · Auto = Threshold value evaluation · Feedback of the switch setting Auto. · Optical indication of supply voltage and relay position.
Features
- Modes selectable via 3-stage switch
- Hand = continuous On, 0 = continuous Off
- Auto = Threshold value evaluation
- Feedback of the switch setting Auto.
- Optical indication of supply voltage and relay position.
