ElectromechanicsRelaysMonitoring RelaysRail-mount twilight switch

Finder Twilight switch 1 pc(s) 10.61.8.230.0000 Operating voltage:230 V AC Light sensitivity: 10 - 10 lx 1 maker

A white electronic sensor with cables for data transmission, suitable for use in surveillance or measurement systems.

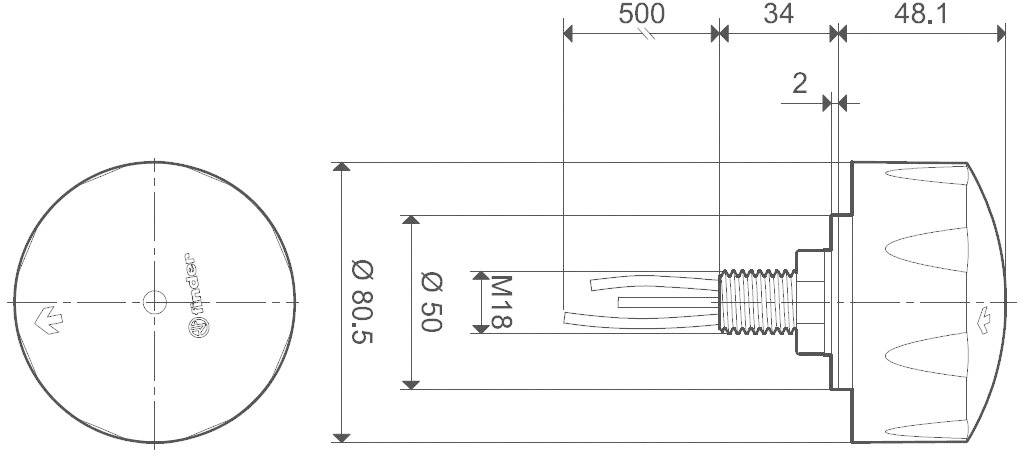

Technical drawing of a round threaded button: Diameter 80.5 mm, length 48.1 mm, thread M18. Side and top view with dimensional annotations.
1/2
Product type
Twilight switch
Operating voltage
230 V AC
Contact type
1 maker
Switching voltage (max.)
230 V AC
Switching current (max.)
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 49.99 / piece)
€ 61.99
-19 %
€ 49.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Twilight switches, compact design, series 10.61.8.230.0000

  • Abstract image featuring large, block-shaped letters 'E', 'A', 'D', reminiscent of a modern art style and designed in a minimalist manner.

Technical specifications

  • Switch-on current (reference):< 5 ms
  • Light sensitivity: set
Product type

Twilight switch

Type

10.61.8.230.0000

Operating voltage

230 V AC

Switch-on current

120 A

Contact type

1 maker

Contact material

AgSnO2

Switching voltage (max.)

230 V AC

Switching current (max.)

16 A

Max. switching capacity

3700 VA

Light sensitivity (min.)

10 lx

Light sensitivity (max.)

10 lx

Light sensitivity

10 - 10 lx

IP54

Min. temperature

-30 °C

Max. temperature

+70 °C

Content

1 pc(s)

Sensitivity

(Fixed) 10 lx

Switching capacity

AC1: 3700 VA/AC15 (230 V): 750 VA

Switching voltage

230 V AC

Switching current

16 A

Type

10.61.8.230.0000

Ambient temperature

-30 - +70 °C

Operating voltage

230 V/50 - 60 Hz

230 V

Other

White

TRUE

Untreated

80.5 mm

Thermoplastic

Plastic

-30-70 °C

FALSE

Glossy

IP54

FALSE

FALSE

FALSE

FALSE

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 506031 Finder Twilight switch 1 pc(s) 10.61.8.230.0000 Operating voltage:230 V AC Light sensitivity: 10 - 10 lx 1 maker

User & Safety Instructions

User & Safety Instructions 506031 Finder Twilight switch 1 pc(s) 10.61.8.230.0000 Operating voltage:230 V AC Light sensitivity: 10 - 10 lx 1 maker

Description

Switch and sensor integrated in one housing. For fixing on walls, masts, outdoor masts and street masts. Switching threshold fixed setting 10 lx.

Hints

Approvals: CE.
