Buy Fischer 090924 GB 8 K NV Foamed concrete plug 50 mm 8 mm 1 Set

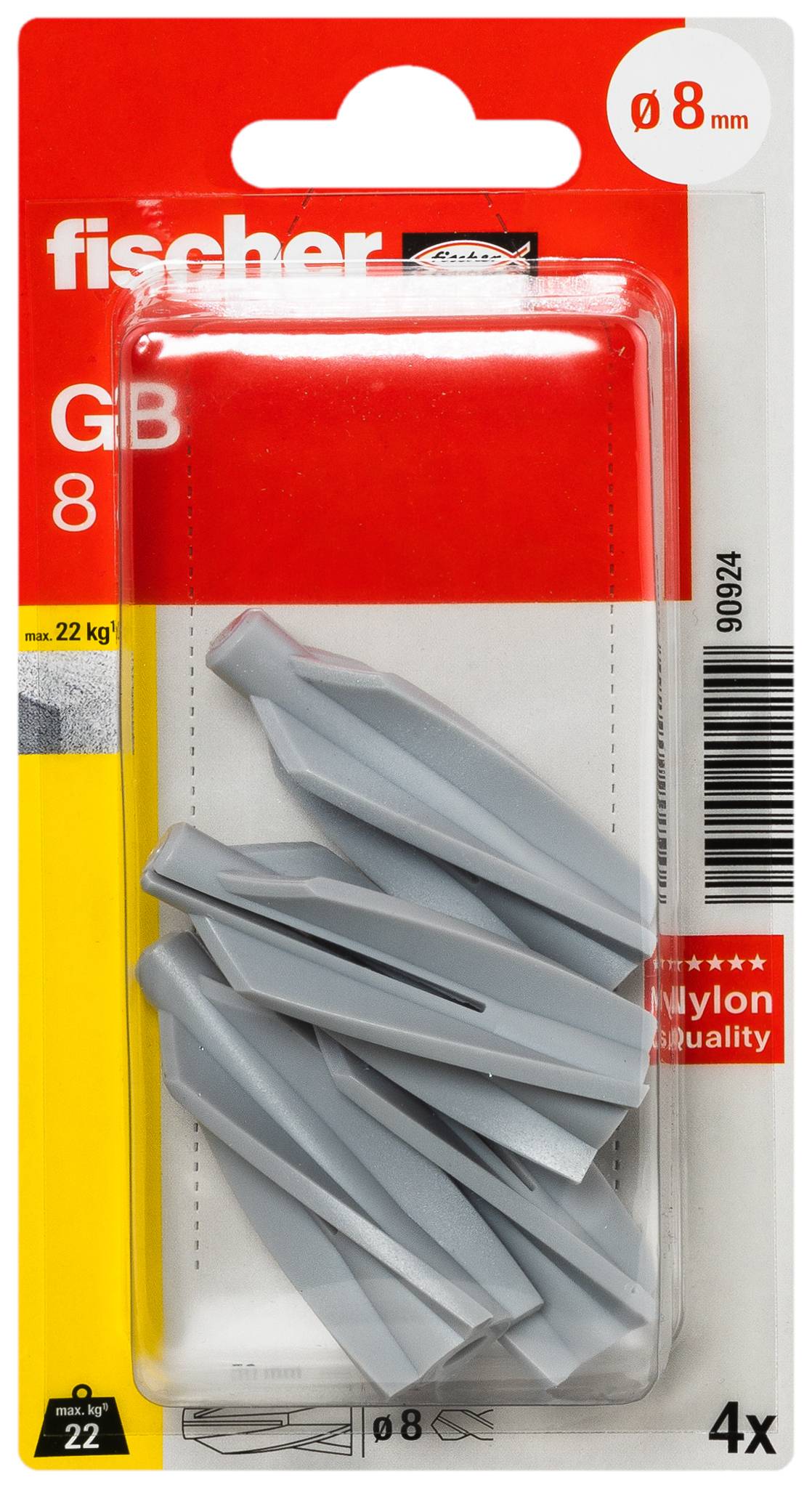

Package of fischer GB 8 nylon wall plugs, 4-pack, for 8 mm holes and up to 22 kg load.<br>

'Fischer GB 8' Nylon Plug Pack with four grey plugs, suitable for drill holes of 8 mm diameter, red and yellow packaging.

A drill penetrates materials from the right, represented by a red arrow pointing left through a structured, patterned surface.

Schema: Penetration of a Tool into a Material. Left: Material Structure, Right: Arrow Indicates Direction of Penetration.

Drilled hole with a wall plug being inserted. An arrow indicates the direction of insertion of the wall plug.

'Illustration of an expanding wall plug being inserted into a wall. The plug expands as the screw is turned.'

Spaceship diagram viewed from above with decorative circles in the background and geometric structures on the right-hand side.

Technical drawing of an expansion anchor in a concrete wall. Labels: 'ds', 'd0', 'h1', 'hef', 'tfix', 'ls'. Illustrates mounting procedure.

1/8

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

17 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 4.03 / piece)

€ 4.03

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fischer GB 8 gas-concrete plug

Optimum pressure distribution and high holding values. Spiral-shaped outer ribs cut into porous concrete.
No setting tool required: Simply hammering with a hammer.
Approved with the Fischer safety screw.
(GB10) Design supervision approval for safety-relevant applications

Technical specifications

(Ø): 8 mm

Product type: Foamed concrete plug

Material: Polyamide

Length: 50 mm

Screw diameter: 5 mm

Dim: (Ø x L) 8 mm x 50 mm

Suitable for: Concrete
Foamed concrete wall
Foamed ceiling boards

Content: 1 Set

Outside Ø: 8 mm

Material (details): Nylon

Type: Gas-concrete dowel

Documents & Downloads

Datasheet

Datasheet 3065919 Fischer 090924 GB 8 K NV Foamed concrete plug 50 mm 8 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065919 Fischer 090924 GB 8 K NV Foamed concrete plug 50 mm 8 mm 1 Set

Description

The Fischer GB gas-concrete plug is a special plug for safety-relevant attachments in porous concrete, approved under construction supervision. The GB made of high-quality nylon is knocked in a rotation with a hammer after pre-drilling. The characteristic outer ribs provide a positive connection between the dowels and the building material HER. The Fischer GB aerated concrete plug is designed to attach Ideal to facade, roof construction and railings in porous concrete.

This text is machine translated.
